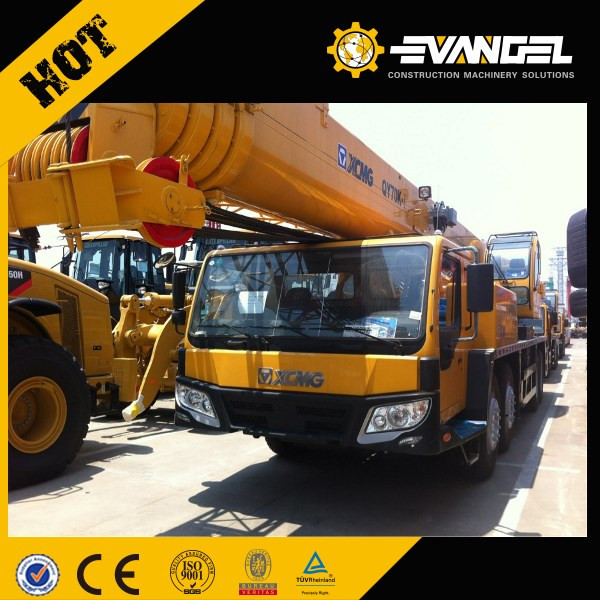

70ton Xcmg Truck Crane Euro III 274kw Boom 44.5m (QY70K-I)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Money Gram, Western Union

Trademark:XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY70K-I

Type:Small Crane

Application:Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage

Sling Type:Wire Rope

Power Source:Hydraulic

Moving Type:Wheel

Installation:Assembled

Certification:ISO9001: 2000

Condition:New

Base Boom:11.6m

Engine Output:276/2200 Kw/(R/Min. )

Min. Ground Clearance:327 Mm

Lxwxh:13930*2800*3575mm

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:N/P

Standard:CE, ISO9001

Origin:Jiangsu, China

HS Code:87051092

Production Capacity:30 Sets/Month

Product Description

XCMG Truck Crane (QY70K-I) 70ton cummins engine EURO II

1. Four axles
2. Hangzhou (276KW) EURO III engine, full coverage board and strengthened chassis parts
3. Lengthening 5-section U-shape main booms 44.5m and two jibs 15m, dual independent winch, Hirschman force limiter, Electric pilot control system
4. Cooling and heating air conditioner, heat emitter and five outriggers
5. PLC integrated controller and full head cab
6. Total Dimention(mm): 13930*2800*3575
7. Max. Operation weight(Kg): 70000

Dimension	Unit	QY70K-I
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	?150
Max. swing speed	r/min	?2.0
Max. speed of main winch (single rope) (no load)	m/min	?130
Max. speed of aux. winch (single rope) (no load)	m/min	?108
