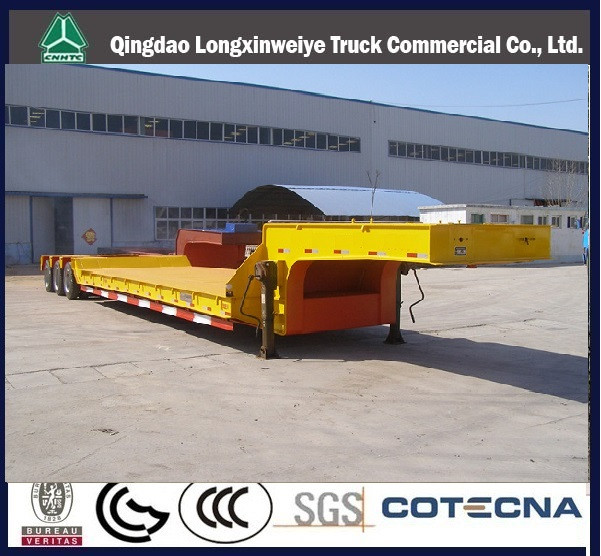

70ton Heavy Duty Low Bed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:CIMC

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQS9400TDP

Type:Semi-Trailer

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Material:Steel

Scale:Heavy Duty

Certification:CE

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Package

Standard:International standrad

Origin:Qingdao, Shandong

Production Capacity:2000sets Per Month

Product Description

70ton Heavy Duty Low Bed Semi Trailer

Configuration of high quality
We use accessories of high quality to ensure a good performance. BPW, SAF, YUEK, JOST, WEBCO are optional. Sixteen wheels, short axles, three-line six-axles, double or triple common trailer axles are all available of reliable quality.

High standard steel material
A sturdy, durable and enforced frame of high strength steel is applied contributing to our practice-oriented, high-grade product. All of these have ensured an extremely high load-bearing performance and supply users with flexible choices from 30 tons to 120 tons.

Multi functions
External dimensions could be made according to customer's requirement, to offer you solutions for goods transporting, such as tank carrier, power generator carrier, steel slag carrier, coil transporter, high speed carrier etc.. Detachable low bed semitrailer, extendable low bed semitrailer and dolly low bed semi trailer are also available. Our competent engineering team will design according to your individual request and supply you with satisfying products.

Model	Axle NO	Rated Load (kg)	Outside Dimension	Tyre No	leaf-spring Pcs

CQS9400TDP	3	60000	13000X3000 X3150	12	10
Manufacture	Liangshan Juyuan special vehicle manufacturing Co., Ltd.
Axle Brand	FUWA
Suspension	Leaf spring suspension
King Pin	2" or 3.5"
Landing Gear	28 T
Colors	Any colors available
Tare weight	9-12 Tons
Main Beam Material	Q345B carbon steel, automatic submerged arc welded
Brake System	Dual line braking system
Brake Air Chamber	Double air chambers
Tyre specifications	10.00R20 or 11.00R20
Floor	4mm checkered plate
Other Descriptions	The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.
