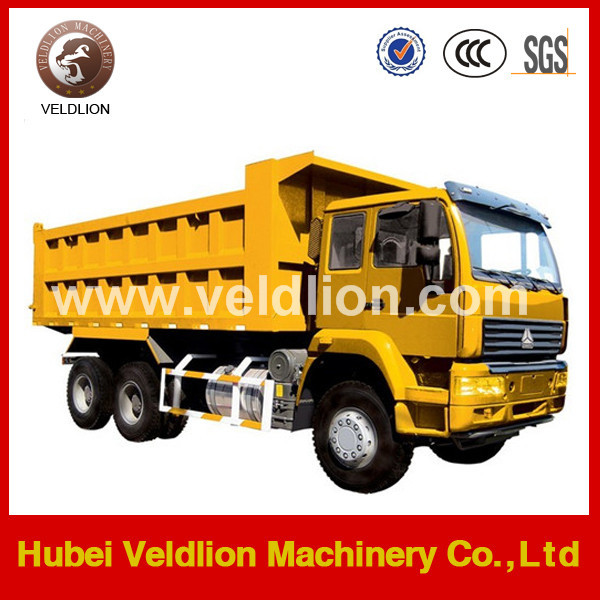

6X4 Right Hand Drive Heavy Duty Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 41500/ Piece

Price:US $41500.0 / Piece

Trade Terms: FOB, CIF, DAP

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 11, 2014 To Aug 29, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3257

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Color:Red/Yellow/Green/White

Fuel:Diesel

Certification:ISO9000, CCC, EPA

Engine Type:4 Stroke

Volume:10000-20000L

Type:Dump Truck

Payload:30t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CCC $ ISO9001

Origin:China

HS Code:8716311000

Production Capacity:3000PCS Per Month

Product Description

1. Technical parameters of the tipper dump trucks.
(1) For construction and industrial trucks
(2) Curb Weight: 12170kgs
(3) Loading Weight: 12700kgs
(4) Box Volume: 21000L
(5) Engine Power: 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III dump truck. We could choose the right truck for you and confirm that is your good assistant in your work.

2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized Special Trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Heavy duty truck,
2. Fire engine truck
3. Truck mounted with crane
4. Dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,
13. Chemical liquid tank truck

3. Contact us
Atten: Ms. Julia He
Mobile: 0086-15927026165
www.veldlion.com

SINOTRUK HOWO 6X4 DUMP TRUCK LHD / RHD
Model	ZZ3257 M3247	Driving type: 6x4
Cabin	HW70 standard cab / HW76 lengthened cab, basic equipment: no / one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle , four points floating air spring suspension and shock absorbers for off-highway vehicle ; transverse stability installation , double locking safety belt and external sun shade for various mode .
Engine	Horse power:	266HP(196KW)
	Displacement:	9.726 (L) liter
	Max torque:	1100Nm
	Cylinder diameter / stoke:	126mm/130mm
	WD615.62 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG
Gear box	Model:	HW13710
	Speed:	10drive, 2reverse. Max torque:1390NM
	HW13710 SINOTRUK 10 speed manual type transmission, the first shift gear ratio: 14.08, small ratio grade difference and big first shift ratio produce an excellent performance on start up Gear ratio:1=14.08, 2=10.47, 3=7.82, 4=5.82, 5=4.35, 6=3.24, 7=2.41, 8=1.80, 9=1.34, 10=1, R1=12.67, R2=2.91
Front axle	1вHF7, 7 ton axle load, rigid stub axle with double T- cross section and dish /drum brake.
Rear axle	2 x HC16, HC16 heavy casting hub reduction drive axle with super loading ability, excellent performance on start-up with heavy load and slope climbing.
Steering	ZF8098 power steering, hydraulic steering with power assistance.
Clutch	Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance.
Brake	Service brake: Dual circuit compressed air brake.
	Parking brake: Spring energy, storage air-break brake.
	Engine brake: Engine exhausted gas brake.
Electric Equipment	Operating voltage:	24V negative grounded
	Battery voltage:	12V/165Ah,cigar lighter
Tire & Rim	11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5
Overall dimension (mm)	8,145 X 2,496 X 3,170 (L X W X H)
Dump Box Dimension (mm)	5,600 X 2,300 X 1,200 / 1,400 / 1,500
Total Mass (Kg)	25,000
Curb Weight (kg)	12,250 / 12,240
Maximum Speed (km/h)	75
Color	White, red, yellow, green, blue
