6X4 HOWO refrigerator truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000.0-65000.0/ Piece

Price:$50000.0 - $65000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T

Price Valid Time:From Dec 04, 2012 To Mar 04, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:refrigerator truck

Usage:Transport

Certification:ISO

Drive Wheel:4WD

Emission Standard:Euro II

Fuel:Gas / Diesel

Condition:New

Refrigerator:USA Thermo King independent T600

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Product Description

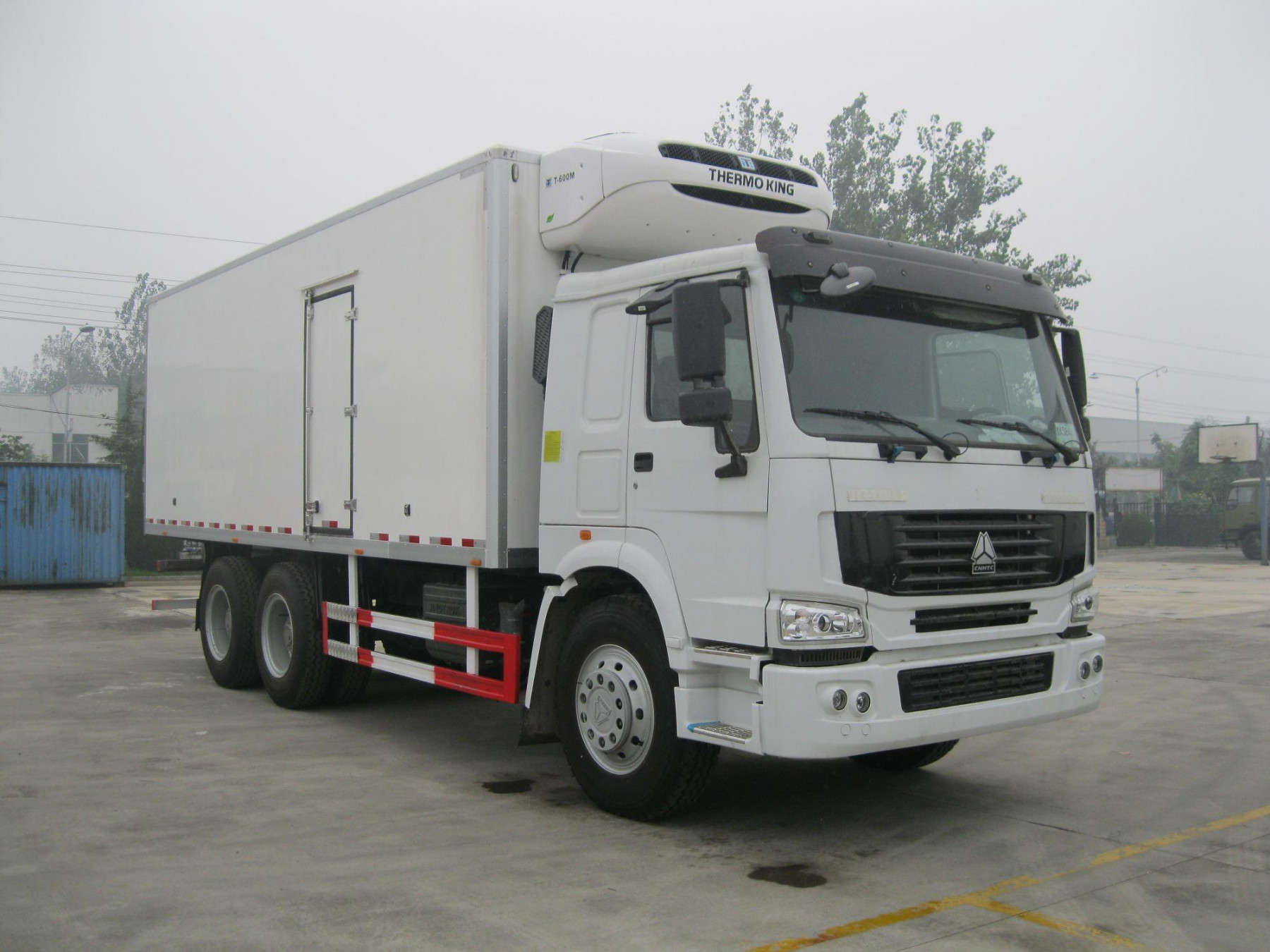

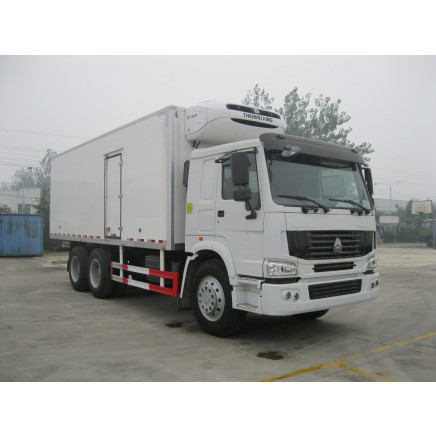

SINOTRUK 6X4 HOWO refrigerator truck RHD drive

Cabin HOWO 76 Standard Cab (RHD)
With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions(L x W x H)mm 10100x2500x3960
Wheel base (mm) 4600+1350
Wheel track (front/rear) (mm) 2022/1830
Approach/Departure angle(°) 16/12
Weight in KGSTare Weight 11000
Loading Capacity 30000
Front axles loading capacity HF9 1x9000
Rear axles loading capacity HC16 2x16000
Max. driving speed(km/h) 102
Engine Brand Sinotruk
Model WD615.69
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 336HP
Emission standard Euro II
Gearbox HW19710, 10 Forwards gear & 1 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L) 400
Tire 315/80R22.5 tire , 10 pieces with one spare tire
Brakes Service brake: dual circuit compressed air brake
Parking brake : (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Refrigerator Body

Thickness Side 95mm
Side door 95mm
Front 95mm
Top 95mm
Back door 95mm
Bottom 102mm
Size (L x W x H) 7300mm x 2300mm x 2300mm
Material Glass reinforced plastic in the surface, inside foam
Refrigerator USA origin Thermo King independent Refrigerator T600, working temperature -20 degree
