6X4 Heavy Duty Garbage Truck (QDT5252ZYSS)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, FCA, EXW

Payment Terms:L/C, T/T, D/P

Trademark:Qingte

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT5252ZYSS

Type:Compression

Certification:ISO9000, CCC, TS16949

Volume:?15000L

Emission Standard:Euro 4

Transmission Type:Manual

Engine Type:2 Stroke

Payload:16t

Fuel:Diesel

Drive Wheel:6×4

Brand:HOWO Sinotruk

Models:Large

Usage:Compression Type

Chassis:Zz1257m3847c

Condition:New

Chassis Model:Zz1257m3847c

Engine Type/Cc(Ml):Wd615.93 /9726

Rated Power(Kw):213

Curb Weight(Kg):15500, 15800

Loading Capacity(Kg):9370, 9070

Gross Weight(Kg):25000

Wheel Specification:12.00-20

Tank Volume(Cbm):20

Hydraulic System Rated Power(MP)a):19

Filling Time(S):25

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:12, 000/Year

Product Description

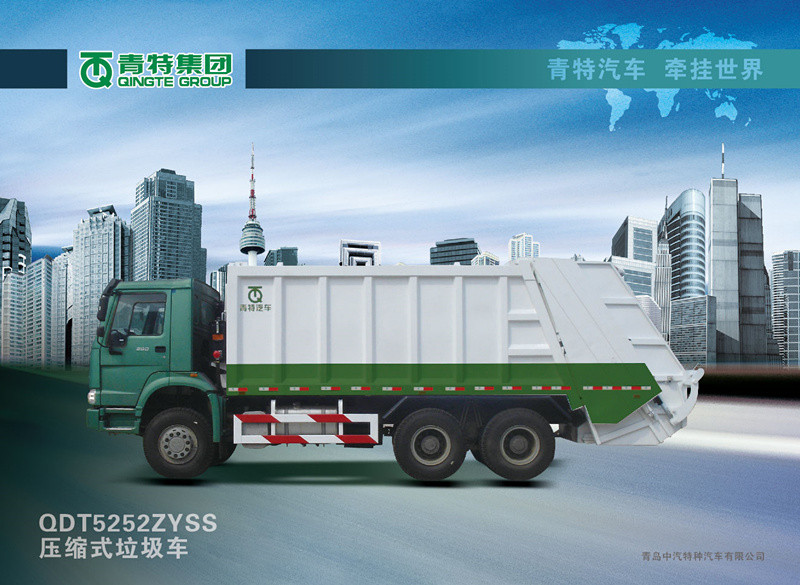

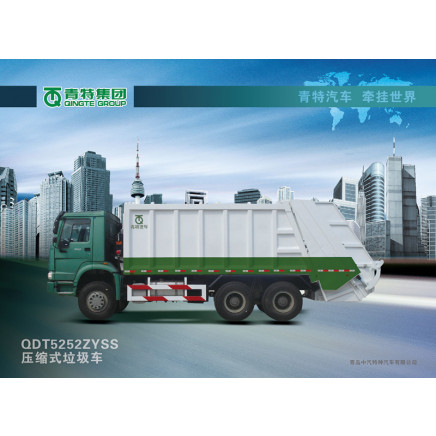

Qingte 6X4 Compression Garbage Truck
QDT5252ZYSS

Key Features:

1. Arc-shaped Side Plate structure and Frame Structure optional

2. Adopting high strength wear-resisting plate for loading device to sustain repeatedly impaction and friction.

3. Key components like guide rail are all machined parts equiping high-tech nylon ensuring precision and steady.

4. With help of Double Pump and Double Circuit System, working life is raised and energy consumption has been reduced.

5. Adopting imported multitandem valve for compressing, realizing stable two-way compression.

6. Compressing system has both single cycle and auto-continuous compressing loop.

Model	QDT5252ZYSS
Chassis Model	ZZ1257M3847C
Engine Type/cc(ml)	WD615.93 /9726
Rated Power(kw)	213
Loading Capacity(kg)(kg)	15500,15800
Curb Weight(kg)	9370,9070
Gross Weight(kg)	25000
Max Speed(km/h)	81
Wheel Specification	12.00-20
Dimension(L/W/H)(mm)	9325(9675)X2500X3480
Wheel Base (mm)	3825+1350
Overhang(Front/Rear) (mm)	1465/2460
Approach Angle/Departure Angle (°)	16/14
Tank Volume(m³)	20
Filling Volume(m3)	2.2
Hydraulic System Rated Power(Mpa)	19
Filler Opening Lower Edge Ground Clearance(mm)	1200
Filling Period(s)	25
Garbage Unloading Time(s)	45
Waste Water Tank Volume(L)	?400
Mechanical Hand Tipping Quality(kg)	?600
Garbage Compression Density(kg /m 3 )	?800
