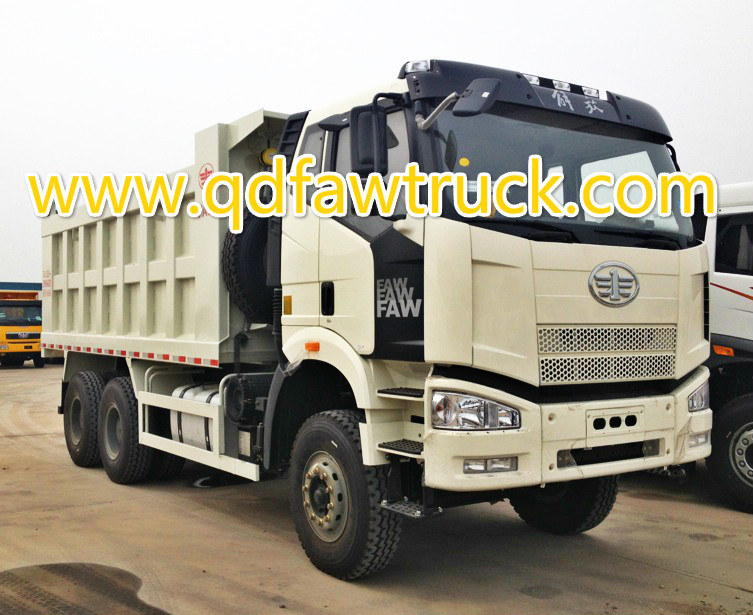

6X4 Faw J6 10 Wheeler Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, EXW, CIF

Payment Terms:L/C, T/T

Trademark:FAW

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3256

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Dump Tipper

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:in Nude

Standard:ISO

Origin:China

HS Code:8704230090

Production Capacity:300PCS/Month

Product Description

High safety, High reliability, High comfort, High load carrying capacity, Low center of gravity, Low Fuel consumption, Wide frame V rod, and other characteristics.

The J6 dump truck is equipped with a matched low-speed high-torque engine which gives it better climbing ability, with a cast axle housing upgraded from a 300 axle which provides it with higher load-carrying capacity, and with an oil bath cleaner and 24mm thick rear leaf springs as standard which deliver more reliable quality and easier maintenance.

Type Number	CA3250P66K24LT1E CA3250P66K24L1T1E CA3250P66K24L2T1E CA3250P66K24L3T1E CA3250P66K24L4T1E
Dimension Parameter	Overall Dimensions (LxWxH)mm	Length	7530, 7680, 7780, 7980	8080, 8280, 8480, 8340, 8440, 8540	8580, 8780, 9080, 8850, 9050, 9250	9180, 9380, 9580, 9700, 9800, 9900	9680, 9880, 10180, 10150, 10250, 10400
		Width	2495	2495	2495	2495	2495
		Height	3300, 3600	3300, 3600	3300, 3600	3300, 3600	3300, 3600
		Height	3300, 3600	3300, 3600	3300, 3600	3300, 3600	3300, 3600
	Axle Base (Full load)		3450+1350	3800+1350	4300+1350	4800+1350	5300+1350
	Front Overhang (Loaded)		1470	1470	1470	1470	1470
	Rear Overhang (Loaded)		1260, 1410, 1510, 1710	1460, 1660, 1860, 1720, 1820, 1920	1460, 1660, 1960, 1730, 1930, 2130	1560, 1760, 1960, 2080, 2180, 2280	1560, 1760, 2060, 2030, 2130, 2280
	Wheel Base	Front Wheel	2050	2050	2050	2050	2050
	Wheel Base	Rear Wheel	1830	1830	1830	1830	1830
	Internal Dimensions of Body	Length	4800, 5000	5400, 5600, 5800	5800, 6000, 6200	6600, 6800, 7000	7000, 7200, 7500
		Width	2300	2300	2300	2300	2300
		Height	1380, 1330	1220, 1180, 1140	1140, 1100, 1070	1000, 980, 950	956, 932, 899
	Ground Clearance (Loaded)	Under Front Axle	285	285	285	285	285
	Ground Clearance (Loaded)	Under Rear Axle	290	290	290	290	290
	Passing Angle(Loaded)	Approach Angle	24	24	24	24	24
	Passing Angle(Loaded)	Departure Angle	24	24	24	24	24
Weight Parameter(kg)	Payload Capacity		12805, 12870	12695, 12760	12605, 12670	12505, 12570	12415, 12480
	Curb Weight(kg)		12000	12110	12200	12300	12390
	Gross Truck Weight(kg)		25000	25000	25000	25000	25000
	Weight Distribution (kg)(unloaded)	Front Axle	5965	5430	5300	5350	5800
	Weight Distribution (kg)(unloaded)	Rear Axle	6035	6680	6900	6950	6590
	Weight Distribution (kg)(loaded)	Front Axle	7000	7000	7000	7000	7000
	Weight Distribution (kg)(loaded)	Rear Axle	18000	18000	18000	18000	18000

Type Number	CA3250P66K24LT1E CA3250P66K24L1T1E CA3250P66K24L2T1E CA3250P66K24L3T1E CA3250P66K24L4T1E
Performance Parameter	Max. Speed (km/h)	75	75	75	75	75
	Maximum Gradeability (%)	70	70	70	70	70
	Fuel Consumption under Six Operating Conditions (L/100km)	---	---	---	---	---
	Constant Speed Fuel Consumption at the Highest Gear(L/100km)at 80km/h	27	27	27	27	27
	Maximum Exterior Noise Level at Accelerated Drive dB (A)	? 84	? 84	? 84	? 84	? 84
	Minimum Turning Radius (m)	15	16	18	21	22
	Braking Distance (from 60km/h with Full Load)	? 36.7	? 36.7	? 36.7	? 36.7	? 36.7
	Parking Slope(Full load, in Forward and Reverse 2 Directions)	? 12	? 12	? 12	? 12	? 12
	Continued Running Mileage (km)	? 600	? 600	? 600	? 600	? 600
	Economic Speed at the Highest Gear(km/h)	40-60	40-60	40-60	40-60	40-60
