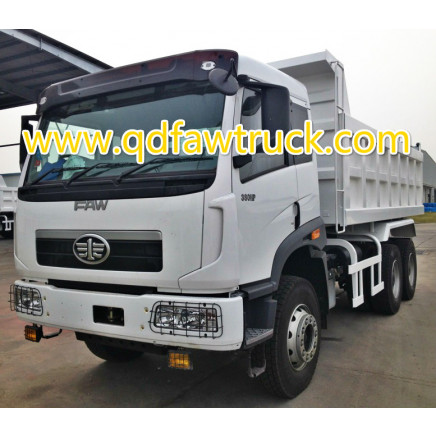

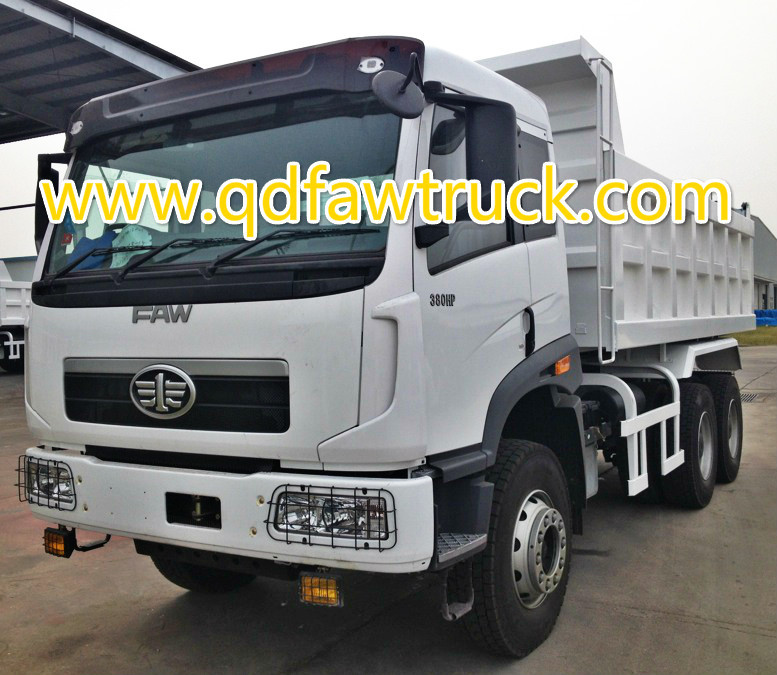

6X4 Dump Truck Heavy Duty Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 31500.0-55000.0/ Piece

Price:$31500.0 - $55000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 12, 2014 To Mar 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3256P7K2T1A

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Brand:Faw

Driving:6X4

Steering:Rhd, LHD

Capacity:20-30tons

Color:Red, White, Yellow, Blue

Export Markets:Global

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:8704230090

Production Capacity:300 PCS/ Month

Product Description

6X4 Dump Truck heavy duty truck
FAW 20-30 Tons Tipper\ Dump Tipper

1. WEICHAI 340, 380HP
2. EATON clutch
3. America parts
4. EATON/ FULLER gearbox
5. Front lift or middle lift
6. Steel Cabin for comfortable drive
7. WABCO valve
8. USA TRW steering
9. NORGREN solenoid valves
10. Korean GLOBAL free-maintenance battery
11. American TFLOCK self-locking nuts
12. American WOODWARD speed governor
13. GEMAN VOITH retarder
14. American TUTHILL cable
15. CVG American driver seat
16. American TENNECO shocker
17. AMP plug connector

Q: What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Product Description
FAW 380HP, 340HP, 20-30T, Dump truck, tipper truck

Packaging & Shipping
Packing usually in nude, shipping by RORO or bulk carrier ship, also we can do CKD or SKD

Our Services
Warranty, technical training, spare parts surpplying, Phone or mail support

Company Information
The first automobile anufacturer, has a history more than 45years, business expanded to Asia, Africa, south America and all over the world, More than 10000 units producing capacity, ISO 9001, TS16949, ISO14001, OHSMS18001 certificate

FAQ
FOB or CIF terms, T/T or L/C, small order is accepted
Optional: Silicon oil fan, driving recorder, right hand driving,
Pto is included in tipper chassis.
Cargo body:
Volume range: 15-20m3
Thickness bottom 10 mm, side 6 mm(can be increased)
Hydraulic lifting system with f type, t type and front lift type(hiva brand is optional).

TRUCK SPECS	Overall dimension:		8345x2496x3450mm
	Cabin	Cabin size:	standard cabin(2 seats)/ long cabin(2 seats and 1 bed)/
	Cabin	Air conditioner:	standard
	Engine	Horsepower(hp):	340 360 380
		Tech:	steyr tech,WD615
		Engine Type:	6-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled
		Steering:	USA TRW
		Emission Standard:	EUR 2,3,4
		Fuel Type:	Diesel
		Max Torque:	1500N.m
		Engine Capacity(ml):	9726
	Gear Box/Transmission		9/12 speeds and 2 reverse speeds
	steering:		TRW hyraulic steering with power assistance
	Clutch		EATON ?430
	Axles	Front Axles:	9T
	Axles	Driving Axles:	2x16T
	Tyre:		12R22.5,10 Tubeless tires with one spare tire/ 12.00R20,10 Radial tires with one spare tire
	Max speed:		75/80/85km/h
	Tare weight(MT):		12MT
BODY SPECS	Body Dimensions (LengthXWidthXHeight):		5600x2300x1500mm/ 5400x2300x1500mm
	Body steel (mm):	Q235	floor 8mm(0.32in),side 6mm(0.24in)
	Cpacibility(M3):		15CBM 20CBM
	Lift System:		Middle hydraulic system with power assistance/ Front hydraulic system with power assistance
	Wheel base:		3825+1350mm
	Track Width(front/rear):		2041/1830mm(7.91x6ft)
	Overhang(front/rear):		1500/1870mm(7.55x6.14ft)
	Approach/Departure Angle:		19°/23°
