6X4 340HP Saic Iveco Hongyan Genlyon Dump Truck (CQ3254HTG364)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-60000.0/ Piece

Price:$30000.0 - $60000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Apr 28, 2015 To Apr 27, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ3254HTG364

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6ط4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Solid Tire or Inner Tube

Tire Certification:ISO

Tire Design:Solid Tire or Inner Tube

Dumping Type:Middle Lift/Front Lift

Condition:New

Truck Type:Main Dump Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing

Standard:Euro 3 Emission Standard

Origin:China

HS Code:8704230090

Production Capacity:50, 000 Units/Year

Product Description

Saic Hongyan Genlyon dump truck, Italy advanced techonology

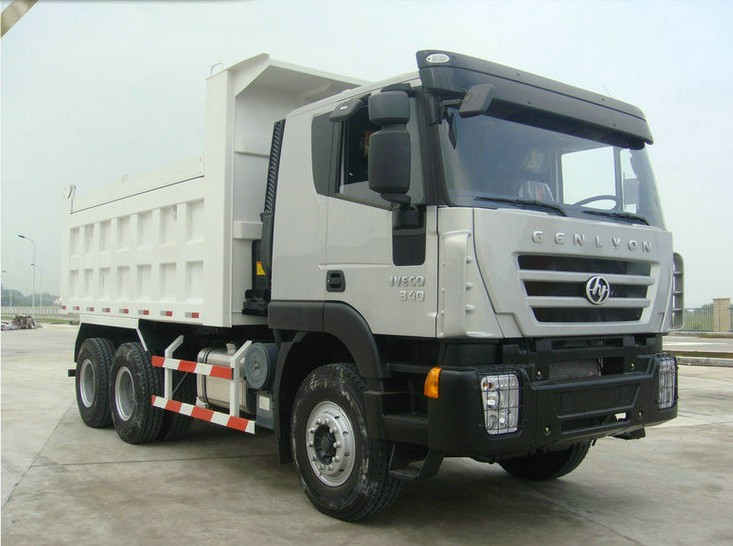

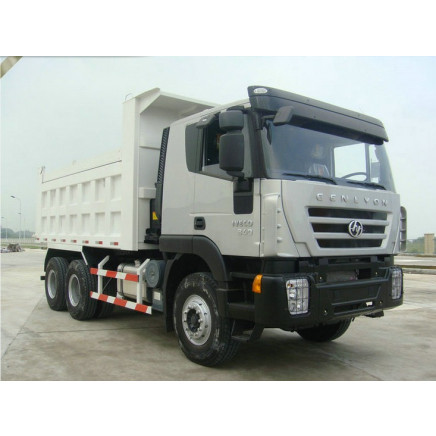

We are a leading manufacturer of 30t-40t genlyon dump truck, also named tipper truck and dumper. We can provide customers all kinds of dump truck with competitive price and high quality, We can also design for different kinds of genlyon dump truck, Following is the dump truck pictures, any enquiry, please feel free to contact us.

6X4 340HP Saic Iveco Hongyan Genlyon Dump Truck (CQ3254HTG364)

Chassis Model	CQ3254HTG, 6x4 Dump chassis
Vehicle main dimension	Overall dimension(LxWxH)mm	8115ط 2500ط 3510
	wheel base(mm)	3600+1350
	wheel track(front/rear)(mm)	2006/1850/1850
	Overhang(front/rear)(mm)	1435/1730
	Approach/Departure angle	25/19
Weight in KGS	GVW	25000
	Curb weight	12010
	Loading capacity	12860
	Front axles loading capacity	Forging Press I-Shaped Axle, Capacity: 7000 kg
	Rear axles loading capacity	Double Reduction, with Differential Lock, 18000 kg
Max driving speed(km/h)	90
Engine	Brand	SFH
	Model	C9 340
	Type	Inline six-cylinder, water-cooled, four stroke, turbocharged and intercooled, electronically controlled fuel injection pump fuel supply rate
	(PS)KW	(340)250
	Maximum torque	1300Nm @ 1200/1600rpm
	Emission standard	Europe III
