6inch Waterproof High Speed Dome PTZ Camera (CeD89 /27)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:5 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T

Trademark:OEM/TOYANI

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CeD89 /27

Type:Analog Camera

Sensor:CCD

Speed:High-speed Dome

Technology:Pan / Tilt / Zoom

Feature:Mask / IR-Cut /Awb/Digital Zoom (Optional)

Horizontal Resolution:650tvl

Image Sensor:1/3" Sony CCD

Signal Model:PAL/NTSC

Focus Length:4.8 ~105.6mm

Optical Focus:22x/27x/30x/36x/270x/360x (Optional)

OSD:Full -Screen Chinese / English Menu

Export Markets:Global

Additional Info.

Trademark:OEM/TOYANI

Standard:CE/FCC/ROSH

Origin:China

HS Code:8525801390

Production Capacity:5000PCS / Week

Product Description

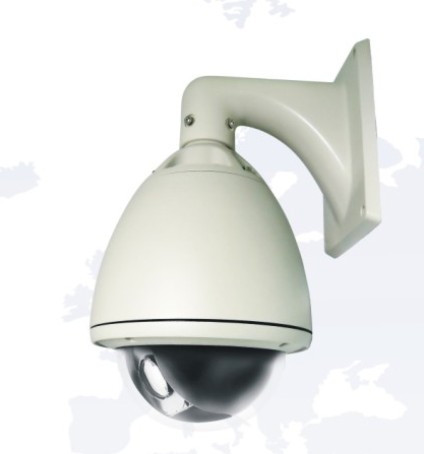

6inch Waterproof High Speed Dome PTZ Camera

Feature:

> Outdoor 6 inch high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function, defend levels reach to IP66.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.

Model No	CeD89 -27
Image Sensor	1/3" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	650TVL
Effective Pixel	PAL: 976(H)X582(V) NTSC; 976(H)*494(V)
Minimum Illumination	0LUX, Color to B/W, IR sensor, IR-CUT
S/N Radio	? 60dB(enhanced)
Backlight Compensation	on/off
White Balance	Auto
Electronic Shutter	1/50~1/12000s
Focus Length	4.8~105.6mm
Optical Focus	27X
Focus	Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function
Presets	256
Pattern Track	4groups, each can record 200 actions
Tour Track	8 groups, total 30 presets can join cruise, can setting the presets' residence time
Other Scan	4 groups , support horizontal scan , deuce area scan , scan random
Rotation Range	horizontal 360° unlimited rotation, vertical 180° , auto reversal
Rotation Speed	horizontal & vertical min 0.01, max 300/s
Communications	RS-485, PELCO D, PELCO P
OSD.	Full-screen Chinese/english menu
Special function	AWB, MASK, DNR, Strong light inhibition, SWDR
Temperature	Built-in
Power Supply	DC12V/4A
Mater	Aluminum shell, waterproof IP66
Work Environment	-20. ~+50 (select temperature control accessories), less than 95%RH
