60 Tons Faw Mining Heavy Duty Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 69800.0-109000.0/ Piece

Price:$69800.0 - $109000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 07, 2014 To Feb 29, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3606P7K2T1A

Transmission Type:Manual

Power:Diesel

Load Capacity:51-60t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Brand:Faw

Driving:6X4

Steering:LHD/ Rhd

Capacity:50-60 Tons

Lifting Type:Front Lifting

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:8704230090

Production Capacity:30PCS/Month

Product Description

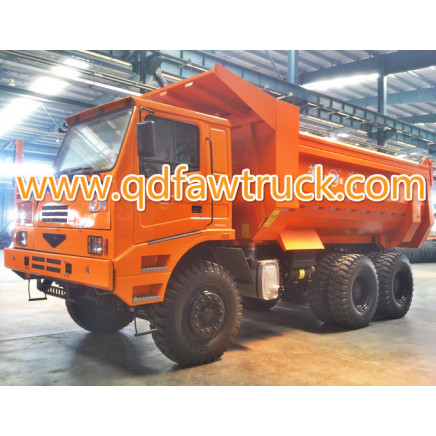

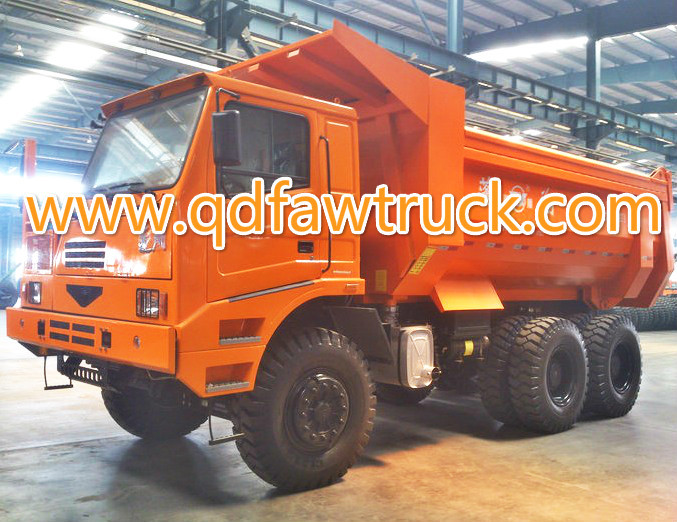

60 tons FAW Mining heavy duty truck

FAW 60 Tons Mining Dump Truck\Tipper, Dump Truck, Tipper, Mining Dump Truck, Dump Truck, Dump Tipper, Heavy Truck, Tipper Truck, FAW Dump Truck
Traction type: 6X4
Driving type: LHD
Cabin: Single seat cab(Air conditioning)

Engine
Engine brand: YUCHAI BRAND/ XICHAI BRAND
Engine model: 390HP / 420HP Euro III
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. Output: 390HP@2200rpm
Max torque: 1750NM@1100-1600rpm
Specific fuel consumption: 192g/Kwh

Gear box
Gear box: FAST FULLER 12JSD220T

Clutch: GF430J spiral spring
Steering: ZF 8098, hydraulic steering with power assistance.

Tyre
Tyre: 14.00-24/ 16.00-25
No. Of tyre: 10+1spare

Front axle: STEYR Strengthened wide welded box stiff front shaft
Rear axle: Strengthened wide steel two-grade reducing and double tires drive axle
Fuel tank capacity (L): 400
Max. Speed (km/h): 50
Wheel base (mm): 3800+1400
Front overhang (mm): 1500
Rear overhang (mm): 1000
Front track (mm): 2400
Rear track (mm): 2200
Approach angle: 29 degree
Departure angle: 34.5 degree
Dimension (mm): 8360X3000X3425 /8690X3500X3670

Body:
Inner size(mm): 5600X2800X1500 / 5950X3300X1750MM
Loading Capacity: 40/60 Tons
GVW: 65/ 90 Tons
Thickness of body steel(mm): Floor16mm side & back 12 mm

Engine	YUCHAI 390HP, XICHAI 460HP
Gear box	12JSD220TA, 12JSD250TA
Tyre	14.00-24/ 16.00-25
Loading capacity	40/ 60 tons
GVW	65/ 90 tons
Dump body	5600x2800x1500/ 5950x3300x1750mm
