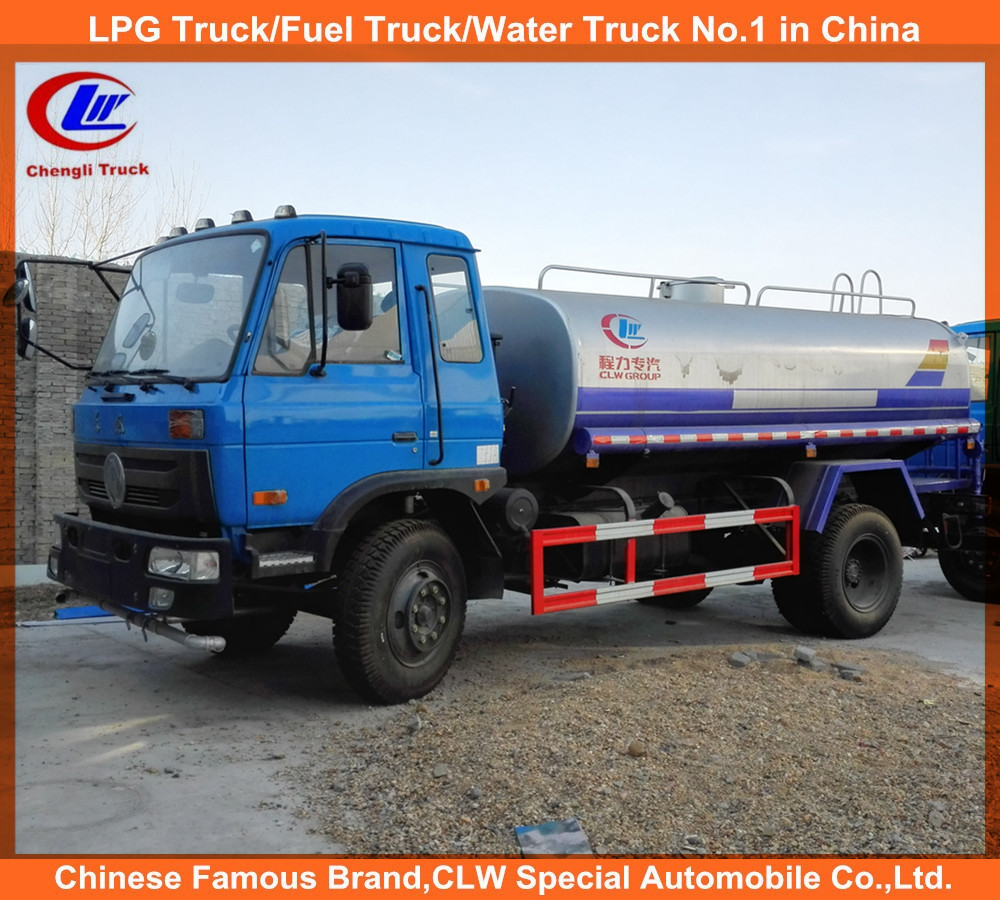

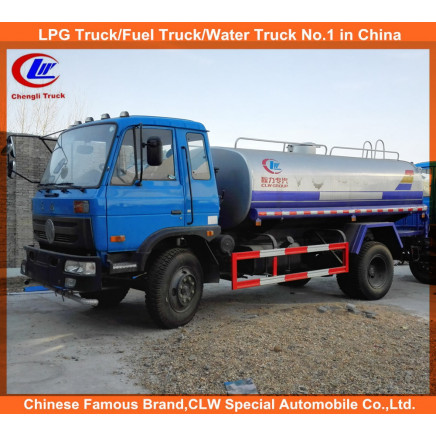

Main feature of 4x2 dongfeng 5-10m3 water tank truck1.Dongfeng Chassis, YC4E140-20 or Cummins,140hp engine.
2.Tanker capacity:5,000 litres to10,000 liters
3.Tanker material is carbon steel and thickness is 5mm.Stainless steel and aluminum alloy is optional.
4.Equipped with China famous Weilong pump,best quality.
5. Factory sale, competitive price
Dongfeng 4X2 6 Wheel 5ton 10ton Water Tank Truck, water cart, water spray truck, water sprinkler truck
Chengli Special Autobile Co,,Ltd is specilized in All kinds of Tank truck, Dump truck, Crane truck,mixer truck,bulk cement truck as well as many kinds of semi trailers. Our yearly production ability is 20000 units, our water truck ranks No.1 in China market.Water truck, is also called as the sprinkler, watering cart , water tank truck, water spray truck, water sprinkler truck, water tanker truck and multi-function green watering truck.
BEST COMPETITIVE PRICE WITH TRUSTED QUALITYChengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )We sincerely welcome you to visit our factory and provide your precious suggestion for us!Sales Manager: Helen JiangMob: +86 135 5419 5719
Product |
Dongfeng 145 Water tank Truck |
Chassis type |
EQ1108KJ |
| Volume |
5-10m3 |
Parameters |
Overall dimension length/width/height (mm) |
7390×2470×2710 |
Total Mass(kg) |
10810 |
Kerb Mass(kg) |
6115 |
Approach angle/ Departure angle(mm) |
27/13 |
Front suspension/rear suspension(mm) |
1250/2300 |
Fuel Type |
diesel |
Fuel Consumption/100 km |
18 |
Max Speed |
90 |
Engine |
Type |
EQB160-20 / YC4E140-20/ |
Displacement/Power(kw) |
5880 /4257/ 118/105160(ps)145(ps) |
Manufacturer |
Dongfeng Commins Diesel Engine Co., Ltd/Guangxi Yuchai Machine Co., Ltd |
Type |
Water-cooling,6-in-line four-stroke supercharged diesel engine |
Chassis |
Drive type |
4×2 |
Wheelbase(mm) |
3950 |
Tread(front/rear) |
1900 / 1800 |
Front axle |
2.8T |
Rear axle |
8T |
Steering gear |
Duel-armed steering wheel,power steering |
Transmission |
6 gear mechanical drive transmission |
Clutch |
Diaphragm clutch,hydraulic remote control,pneumatic servo |
Braking system |
Split air braking systemspring brakingexhaust braking |
Cab |
Non-longheaded, one and a half row cab,whole metal-enclosed |
Number of spring axle(front/rear) |
8/10+7 |
Tire Type |
9.00-20 |
Air-condition |
Choose to fix |
Watering system |
Watering pump |
Self-priming centrifugal pump |
Special performance parameters |
Watering width |
? 15 |
Watering gun range |
? 28 |
Vertical suction range |
? 7 |
Watering pressure |
250-450KPa |
Watering |
0.2-2l/ |
Pump lift |
90m |
Suction time |
<5min |
Flow rate |
60 m3/h |
