6 Axles Hydraulic Gooseneck Modular Trailer 180ton

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Set)	Unit Price
1.0	US $ 208000/

Price:US $208000.0 / Set

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Feb 26, 2015 To May 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DBT9001TDK

Type:Travel Trailer

Certification:ISO/TS16949, ISO

Loading Weight:200ton

ABS:With ABS

Tent Type:Complex

Axle Number:8 Axles

Tire Number:32 Tires

Color:Yellow

Condition:New

No of Axles:Can Be Option According The Loading

Loading Capacity of Each Axles:25ton

Pipe Type:Hydraulic Pipe

Material:Steel

Scale:Heavy Duty

Components:Trailer Axles

Load Capacity:100t

Export Markets:Global

Additional Info.

Trademark:DONGBAO

Packing:Nude Packing

Origin:Jiangsu, China

Production Capacity:500sets/Year

Product Description

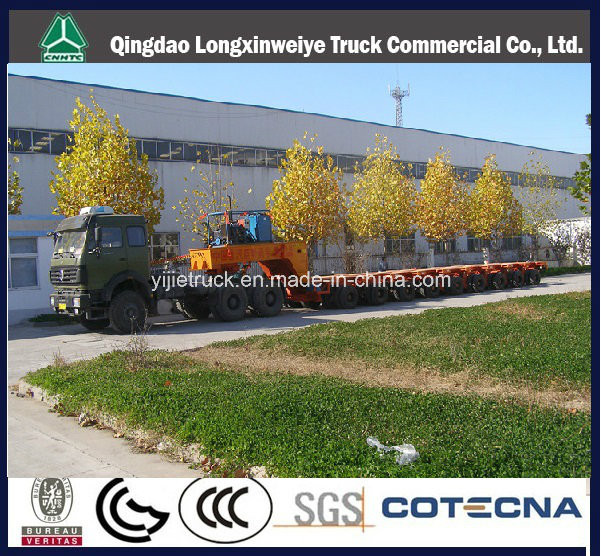

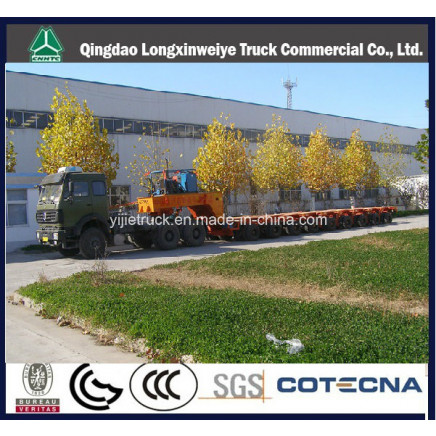

6 Axles Hydraulic Gooseneck Modular Trailer

Rated load capacity: 80-500tons
Hydraulic steering axis, hydraulic gooseneck
Power station with motor and bump
Lowbed plateform
Type:
Over heavy cargo transportation equipments,
Large Hydraulic gooseneck multi power steering axles heavy duty modular trailer (special vehicle) container semi trailer
Wind power transportation equipments,
Large construction machinery transportation,
Bridge and abnormal shape cargo transportation.
Self-walking design
Our advantage:
1, we can do the designs according to the customers' requirements
2, we can offer you the high quality and reasonable price
3, we can offer your a good after-sell service
4, we have strong prefessinal design team
5, prompt delivery. Small order is welcome
Dongbao trailer, your best choice.

Brand Name	6 Axles Hydraulic Gooseneck Modular Trailer
rated load capcity(kgs)	20000kg/axis×15 axis=300,000kg
Max loading capcity(kgs)	30000kg/axis×15 axis=450,000kg
net weight of the trailer(kgs)	85,000kgs
max trailer speed (full load)	8km/hour
the distance of axle	1550mm
the distance of wheel	740/1820mm
tyre	7.50R15tyre
wheel rim	6.5-15rim
axle	30 suits of 15ton hydraulic steering axle
Suspension	Single point hydraulic suspension
the thinkness of floor	50mm-60mm
main beam	box type beam
Braking System	dual-pipes braking system, equipped with pneumatic type, parking brake system
clour	any colour as customer's requirement
Electrical System	1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Brake Air Chamber	double and single chamber
