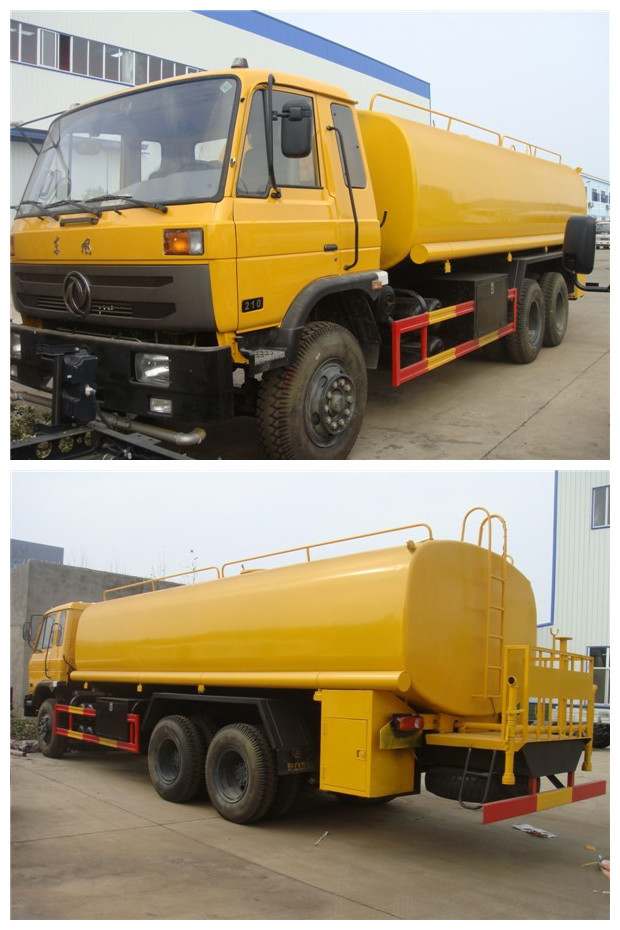

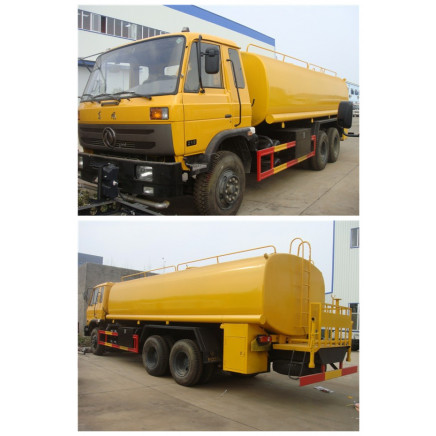

6*4 18ton Water Tanker for Exportation

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 27000.0-29000.0/ Piece

Price:$27000.0 - $29000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 25, 2015 To Aug 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SLWA18

Volume:15001 - 30000L

Certification:ISO9000, CCC

Emission Standard:Euro 3

Sprinkling Area:?16m

Transmission Type:Manual

Payload:18 Ton

Fuel:Diesel

Drive Wheel:6×4

Engine Capacity:4 - 6L

Engine Type:4 Stroke

Condition:New

Engine Brand:Cummins

Engine Model:B210-33

Displacement(L):5.9

Max.Power(Kw):155

Rated Power Rev(Rpw):2500

Cabin Type:One and Half Row

Dimensions:9950*2490*3350

Body:Q235 Carbon Steel

Axles Loading (Kg):7000/18000/18000

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SLCM

Packing:Unde

Standard:ccc

Origin:Shandong

Production Capacity:300units Per Month

Product Description

Detail specification

Dongfeng 6x4 water truck 16000-22000L
Product Name		Dognfeng 6x4 watering truck
Product Model		CLW5251GSS3
Chassis model		EQ1258KB3GJ
Payload		18cbm
Curb weight(Kg)		9005
Drive Model		6x4
Drive Type		Left-hand (optional)
Vehicle Body Color		Red,Yellow,white(Optional)
Engine	Brand	Cummins
	Model	B210-33 6 cylinder in-line with water cooling & inter-cooling
	Displacement(L)	5900
	Max.Power(kW)	155
	Rated power Rev(RPW)	2500
	Maximum Torque(N*m)/Rev(r/min)	700/1500
Fuel consumption	L/100km	23.7/diesel
Clutch	Model	?395 single diaphragm spring
Transmission	Brand	datong or dongfeng
	Model	Datong 6 speed( 6 forward and 1 reverse) Or dongfeng 8 speed( 8 forward and 1 reverse)
Rear Axle(drive axle)-Model		10 tons (main reducer speed ratio:6.166)
Front Axle-Model		5 ton
Cabin type		Dongfeng one and half row
Cabin		Radio and so on,warmer,air condition (optional)
Wheelbase (mm)		4350+1300
Wheel/Tire	Type	Nylon tire
	Model	10.00-20
	Tire number	10+1
Oil Tank	Volume(L)	300
Dimensions	Overall (mm)	9950×2490×3350
(L×W×H)	Body (CBM)	20
Track	Front track(mm)	1940
	Rear track(mm)	1860/1860
Body		Q235 carbon steel
Axles loading (kg)		7000/18000/18000
Front overhang/Rear overhang(mm)		1245/3055
Approach/Departure Angle(°)		28/10
No. of steel spring(front/rear)		8/12
Max.speed(km/h)		85
Max.slope of climb(%)		30
Min.turning diameter(m)		18
Mini.groud clearance		240
Water truck detailed:
1. Tank.is made of carbon steel Q235. 2.Equipped with front(rear,side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with CLW pump(suction lift>6m);Equipped with fire valve,water valve,and filter gauze 3. with front flushing, back sprinkle and side spray,high pressure gun in rear, Platform,two water pipe,it length is equal to the tank's. 4. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) 5. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.

Introduction

We are a professional special vehicle manufacturer in China. Our main products are sanitation truck, construction truck, tank truck, van truck, semi-trailer, civic utility truck,etc.

Our factory has founded over 10 years, we have Complete Quality Controlling System , Advanced Modern Manufacturing Instrument , Flexible Overseas Marketing Strategy and Intimate and Humanized After-Service.

Our water sprinkling truck tank volume is from 4000liters to 20000litres.
