5t Rhd Forland 4X2 Small Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

5t Rhd Forland 4X2 Small Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$12000.0 - $16000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 16000/ Piece
20.0	US $ 15000/ Piece
50.0	US $ 14000/ Piece
100.0	US $ 12000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 12, 2015 To Dec 30, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BJ3042

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Drive Wheel:4�2

Engine Capacity:?4L

Seats:?5

Horsepower:88HP

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Bias

Dumping Type:Middle Lifting

Condition:New

Chassis Brand:Foton-Forland

Engine:80kw / 108HP

Gerbox:5 Forward Gears, 1 Reverse Gear

Drivre Axle:5tons

Cargo Body Size:4000*1900*400mm

Cargo Body Volume:3 Cubic-5 Cubic

Thickness:Side 2mm;Bottom 3mm

Hydraulic Cylinders:Middle Lift

Side Door:Optional

Left / Right Hand Drive:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

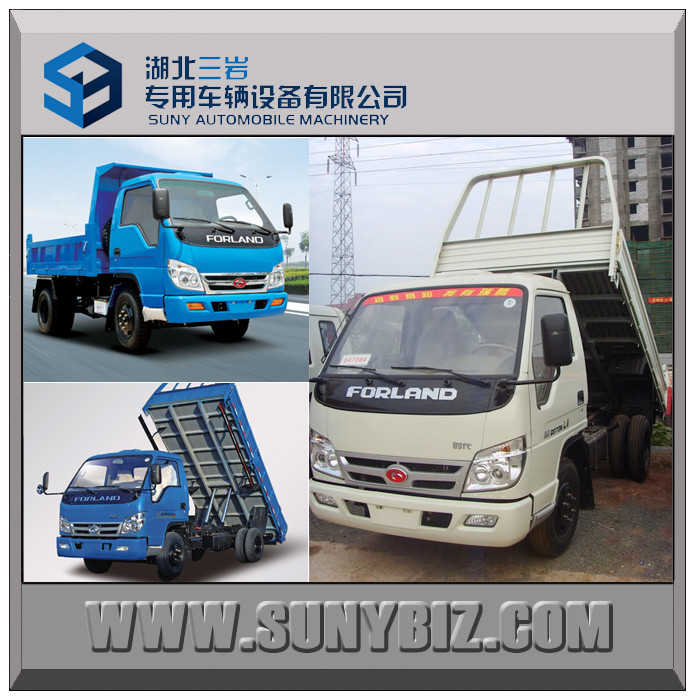

5tons RHD FORLAND 4x2 Samll Dump Truck / Tipper truck
engine 80kw/108hp,5tons rear axle
dumper drive type;4x2 Optional 6x4 and 8x4
dumper box size:400*1900*400 3cbm ~ 4cbm ~5cbm
LEFT HAND DRIVE OR RIGHT HAND DRIVE

Dumper Equipped with material of carbon steel Q235,
Side 2mm thickness;bottom 3mm thickness,

Dumper Equipped with middle hydraulic ram,Single rear door.

Products Technical Specification
Brand-Series		FORLAND 4x2 DUMP TRUCK
Chassis Model		BJ3042
Emission Standard		Euro 2
Fuel type		Diesel
Cabin		FORLAND,Single row
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	599021602350
	Cargo body dimensions	40001900400
	Wheel base	3360
	Front overhang	1510
	Rear overhang	1590
	Min. ground clearance	480
Weight data (kg)	G.V.W	Approx 4275
	Curb weight (chassis)	Approx 2590
	Load capacity	Approx 5000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	BJ493ZLQ1
	Maximum power	80kw / 108HP
	Number of cylinders	4
	Displacement (L)	5.900
	Engine Manufacturer	Dongfeng Cummins
Transmission	Brand and Model	LC5T88
Transmission	Number of gears	5 forward gears, 1 reverse gear.(Manual)
Axle	Front /RearLoad capacity (ton)	2 / 5
Suspension	Front	8- Leaf spring
Suspension	Rear	9+8- Leaf spring
Steering Wheel	left/right hand drive	RHD
Brake system	Service brake	Oil braking
Electric device	Rated voltage	24V
Tyres & Quantity		7.00-16 & 6+1
Cargo body Description
Cargo body dimensions (mm)		40001900400
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 2mm thickness;bottom 3mm thickness
Lifting System		Equipped with middle hydraulic ram, one back door,side door.
Optional Configuration
Radial tires,Van thickness,side door,etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have SINOTRUK howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .
