5t 6t 7t Foton 4X2 Rhd Small Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

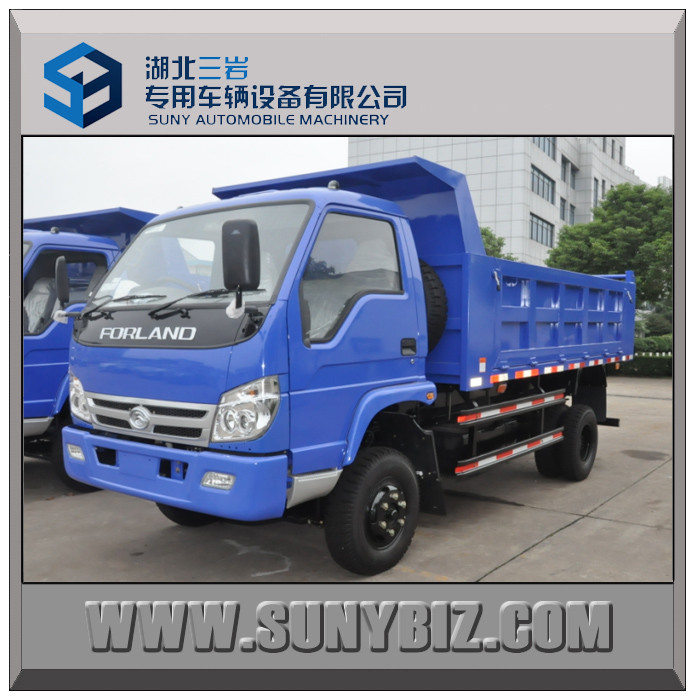

5t 6t 7t Foton 4X2 Rhd Small Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$15000.0 - $20000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece
10.0	US $ 18000/ Piece
20.0	US $ 15000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 26, 2015 To Dec 30, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BJ3073

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Drive Wheel:4�2

Engine Capacity:?4L

Seats:?5

Horsepower:135HP

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Foton-Forland

Engine:Phaser135ti,101kw/135HP

Gerbox:6 Forward Gears, 1 Reverse Gear

Drivre Axle:8tons

Cargo Body Size:4200*2000*800/1000mm

Cargo Body Volume:7 Cubic-10 Cubic

Thickness:Side 3mm;Bottom 4mm

Hydraulic Cylinders:Middle Lift

Side Door:Optional

Left / Right Hand Drive:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

5tons 6tons 7tons FOTON-FORLAND 4x2 Small Dump Truck / Tipper truck
engine 101kw/135hp,8tons rear axle
dumper drive type;4x2 Optional 6x4 and 8x4
dumper box size:4200*2300*800/1000mm 7cbm ~ 8cbm ~10cbm
LEFT HAND DRIVE OR RIGHT HAND DRIVE

Dumper Equipped with material of carbon steel Q235,
Side 3mm thickness;bottom 4mm thickness,

Dumper Equipped with middle hydraulic ram,Single rear door.

Vehicle model		BJ3073DCPFA-S4
Cabin		1900 single row
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	6180�2187�2570
	Inner dimensions of the cargo body (LxWxH)mm	4200�2000�800
	Driving type	4X2
	Wheel base (mm)	3450
	Wheel track (front/rear) (mm)	1650/1630
Weight data	Curb weight (kg)	3625
	Rated payload (kg)	6000
	Persons in cab (persons)	3
	Gross vehicle weight(kg)	9820
Whole vehicle main performance	Max. speed(km/h)	90
Engine	Model	phaser135Ti
	Displacement(L)	3.99
	Rated power(kw/rpm)	101/2600
	Max torque (N.m/rpm)	445/1600
Gearbox	Model	6T120
Gearbox	Gearshift sketch map	6
Clutch	Type	Diaphragm spring(?330)
Rear axle	Type/Main reducer ratio	1080C/5.286
Steering gear		power steering
Brake system	Service brake	Dual-circuit air brakes
Brake system	Parking brake	Breathe brake
Wheels and tyre size		6+1/7.50-16
Electric device	Rated voltage	24
	A/C	/
	Heater	Heater

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have SINOTRUK howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .

MOB: 0086 137 0717 3051
If you have any questions please let Adam Li know.

Additional Information
