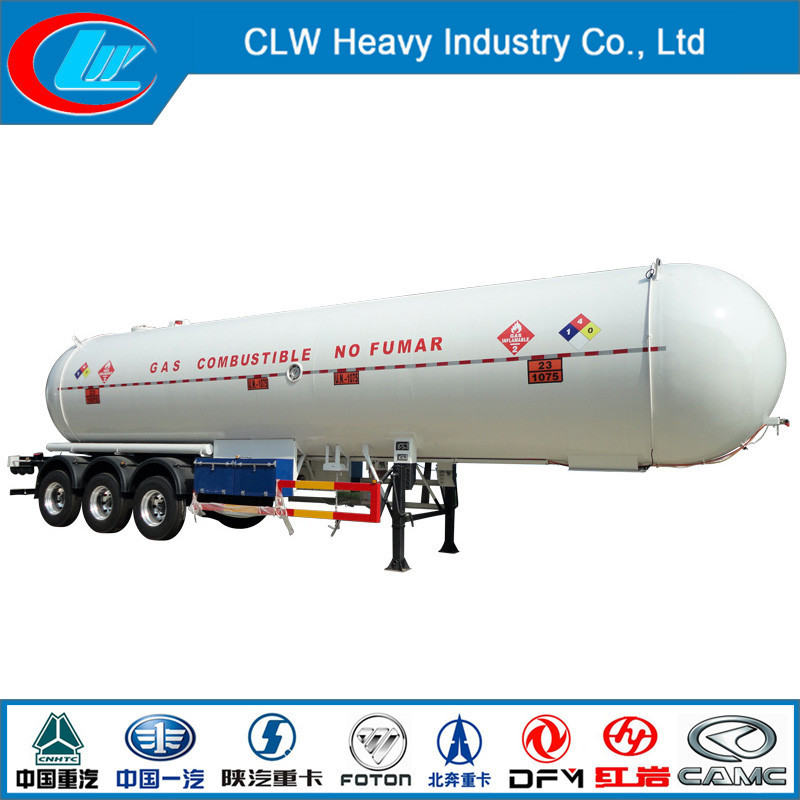

56000liters Liquefied Petroleum Gas Semitrailer with Low Price

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 32500.0-35500.0/ Piece

Price:$32500.0 - $35500.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From May 28, 2015 To Aug 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Trailer

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Description:56000liters Liquefied Petroleum Gas Semitrailer Wi

Volume of The Tank:5000L to 58000L

Shape of End Plate:Ellipse or Round

Axle:3 Axles, BPW, Fuwa or L1 Brand

Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Meter, Cut-off Valve

Tire:11r22.5 12r22.5

King Pin:Jost Brand, 50# or 90#

Export Markets:Global

Additional Info.

Trademark:CLW BRAND

Packing:Waxed Before on Board

Standard:ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC

Origin:Hubei Suizhou

HS Code:8705909990

Production Capacity:500unit/Month

Product Description

56000liters Liquefied Petroleum Gas Semitrailer with Low Price
1.sizes 12595*2400mm
2.vessel type 3
3.tank material 16MnR
4.fully passed detection &3C

LPG Tamk Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

Production notes:
1, certificate ISO9001, 3C, ASME
2 High quality, low price
3 Loading LPG volume 58.5m3
4 Fuwa, L1 or BPW 3 axles.
5, Very Safety Control System: Float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

Factory direct supply customized asme bpw axle fuwa axle 57.1cbm propyene bottler trailer truck, lpg trailer, bulk gas trailer
Our factory is a famous professional LPG tank manufacturer in China,and also is the earliest engaged in PRESSURE VESSEL production-manufacturing in Suizhou city,which known as the SPEICAL AUTOMOBILE CAPTIAL OF CHINA,we specialize in this field for several years with good quality and reasonable price.Our registered label CLW is a famous trademark in China. Our products fully passed and 3C authentication.

Moreover,pls be noted that:
1,We have the biggest LPG truck in China,and the valid volume is 35.5CBM.
2,We have the biggest LPG semi-trailer in China,and the valid volume is 60CBM, low transportation cost,bring more profit.
3,We can also provide LPG storage tank ranged from 5CBM to 120CBM,both on the floor ones and in the ground ones.

Cheng Li functional characteristics of liquefied petroleum gas tank:
1, pressure components of the product materials, dimensions and weld quality, operation quality, installation quality,safety devices and accessories within the strict qualification
2, conventional tank materials on physical and chemical tests such as: mechanical properties and chemical composition.Their welded joints, weld, tank head, the pressure of the geometric location of each component through rigorous X-ray non- destructive testing and magnetic particle testing inspection.
3, seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
4, A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle inspection, I level qualified.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of our LPG Tank trailer.please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

Technique Parameters

Item			Parameter
Tank	Description of LPG tank		59.6CBM LPG semi-trailer
	Type number		CLW9400GYQA
	Volume		59.6CBM
	GVW		40000KG
	Overall dimensions (mm)		1300025003990
	Curb weight(kg)		25000
	Approach Angle/Angle of departure		-/20 (�)
	Wheel base		7230+1310+1310(mm)
	Tire		12R22.5 12PR
	Axle Number		3
	Type of vessel		The third kind
	Design pressure		1.77MPa
	Max working pressure		1.61MPa
	Design temperature		-19~50�C
	Filling medium		Liquid petroleum gas (propane)
	Corrosion allowance		1.0mm
	volume		59.6CBM
	Thermal treatment		The entirety
	Filling factor		420-590kg/CBM
	Material of the tank		Q345R
	Hydraulic test pressure		2.22 M Pa
	Gas tight test pressure		1.77 M Pa
	Cylinder thickness		14mm
	Head thickness		14mm
	Service time		10 years
Liquid level indicator	Type		UNZ-518C14
	Version of the indicator		Magnetic type liquid level indicator
	Normal pressure		2.5M Pa
	Scope of testing		50-2300mm
	Precision		2.5
Safety valve	Model		A42F-2.5-80
	Version		Built-in
	Normal pressure		2.5 M Pa
	Normal diameter		DN80
	Opening pressure		1.68~1.76M Pa
	Re-seating pressure		>=0.8 times of the opening pressure
Loading and unloading system	Normal diameter	Feed pip	DN80
		Drain pip	DN80
		Admission port	DN80
		Sewage outfall port	DN80
		Vent nozzle port	DN80
Standard	GB150 <pressure vessel> TSG R0004-2009
Specification	Designed Pressure: 1.77Mpa Filling Ratio: 0.42-0.59 kg/L Working Temperature:-50�C Corrosion Allowance: 1mm
Standard configuration	13TBPW axle,ABS system,Single out the liquid ,Double toolkit ,thermometer,pressure gage,JOST king pin,JOST leg,Emergeny cut-off valves,Safety valve ,12 tubeless tire and one spare tire,fire extinguisher,anti-static tape,plastic mudfender.

LPG tanker semi trailer brief:
1)Designing pressure: 1.77MPa Designing temperature: -20C-50C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

LPG Tank Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

About our company

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our leading varieties include more than 100 types of trucks and related products such as water tank truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others. Our cooperation partners including Sinotruk, FAW, Dongfeng , FOTON, Schacman, Beiben, Hongyan and etc.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler tank Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana

We are confident and committed to providing our customers with the best qualityand service all the time

If you are interested in our trucks, pls contact me, I will send our best quotation to you!

Contact information

Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your precious suggestion for us!
