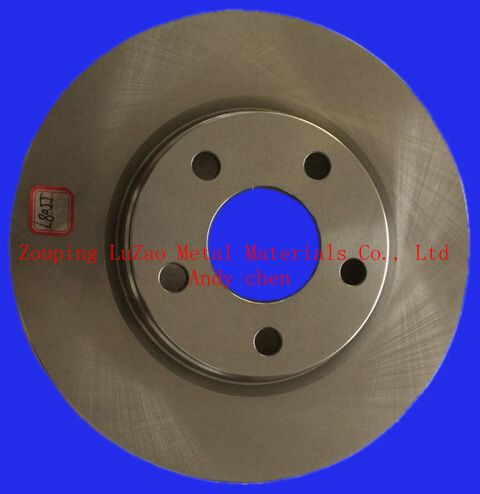

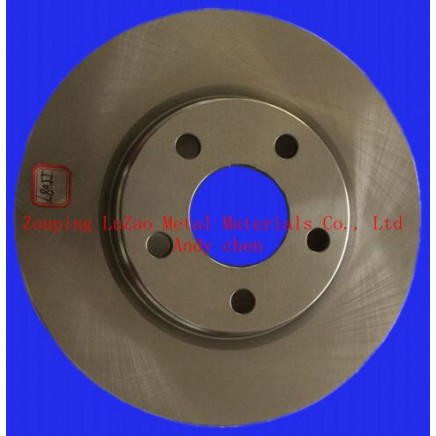

55087factory Auto Car Front Brake Disc Pad with Good Quality.

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 8.0-40.0/ Piece

Price:$8.0 - $40.0 / Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Mar 27, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:55087/ 18048698

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Hardness:170~210

Size:256mm*38mm

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Port:Qingdao

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

SPECIFICATION

1. High quality and competitive price
2. HT250, G3000
3. The professional production team

DETAILS:
OE No.: 18048698/ Aimco No.: 55087
Position: Front Axle
Height: 51.8mm
Outer Diameter: 296.9mm
Centering Hole Dia: 70.8 mm
Pitch circle diameter: 118mm
Brake disc thickness: 32.3mm
Minimum thickness: 30.7mm
Number of holes: 5
Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate: ISO9001
HS: 87083099
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing

55087factory Auto Car Front Brake Disc Pad with Good Quality.

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	18048698
AIMCO NO.	55087
Position	Front axle
Size	296.9*51.8mm
Height	51.8mm
Outer Diameter	296.9mm
Centering Hole Dia	70.8mm
Pitch circle diameter	118mm
Brake disc thickness	32.3mm
Minimum thickness	30.7mm
Number of holes	5
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
