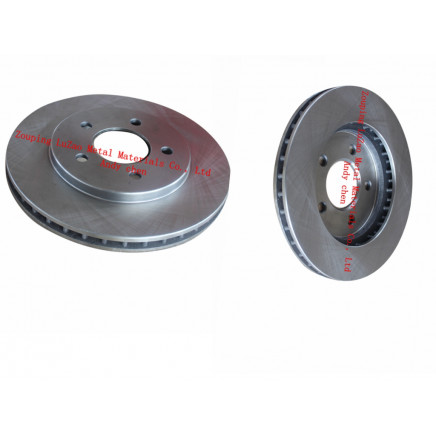

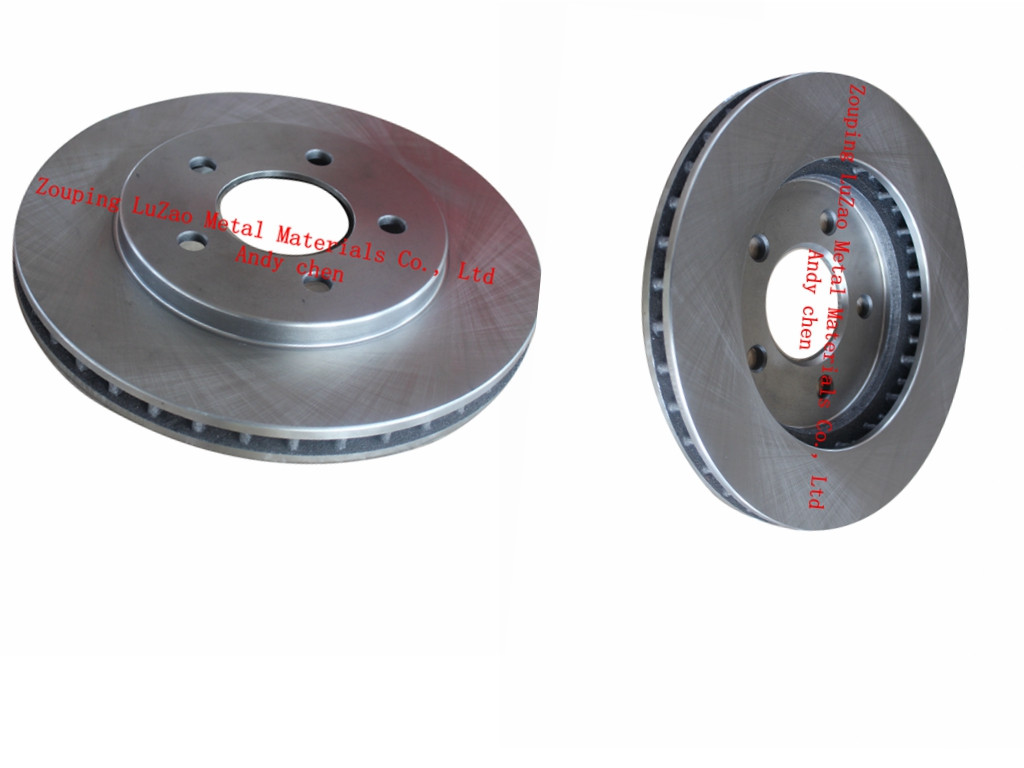

5373\Gray Iron Ht250 Material Braking Shoes, Braking, Autocar Brake, Brake Disc, Automobile Car Braking Line, Disc Brake with ISO 9001

$5373\Gray Iron Ht250 Material Braking Shoes, Braking, Autocar Brake, Brake Disc, Automobile Car Braking Line, Disc Brake with ISO 9001$

More Views

5373\Gray Iron Ht250 Material Braking Shoes, Braking, Autocar Brake, Brake Disc, Automobile Car Braking Line, Disc Brake with ISO 9001

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB

Payment Terms:T/T

Trademark:Luzao

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

$5373\Gray Iron Ht250 Material Braking Shoes, Braking, Autocar Brake, Brake Disc, Automobile Car Braking Line, Disc Brake with ISO 9001$

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:4721820/5373

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Hardness:170~210

Size:38mm*282mm

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

DETAILS:
OE No.:  4721820/ Aimco No.: 5373
Position: Front Axle
Height::38mm
Outer Diameter: 282mm
Centering Hole Dia: 73.7mm
Pitch circle diameter: 114.3mm
Brake disc thickness: 24mm
Minimum thickness: 22.4mm
Number of holes:5
Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate: ISO9001
HS: 87083099
Brake disc Specifications:
(1)    With good performance, high accuracy and stable quality
(2)    Your sample or drawing is welcomed
(3)    Credibility of the enterprise
(4)    Standard material according to technical drawing
(5)    Able to produce according to specification with technical drawing
(6)    Positive customer feedback from domestic and international market
(7)    Strict inspection
(8)    Big factory, cost advantage and price advantage

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.
AIMCO NO.	5373
Position	Front axle
Size	38*282mm
Height	38mm
Outer Diameter	282mm
Centering Hole Dia	73.7mm
Pitch circle diameter	114.3mm
Brake disc thickness	24mm
Minimum thickness	22.4mm
Number of holes	5
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
