50t 6X6 Beiben Benz Heavy Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

50t 6X6 Beiben Benz Heavy Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$53000.0 - $57000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 57000/ Piece
10.0	US $ 55000/ Piece
20.0	US $ 53000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 26, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND3251F38

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:6�6

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Beiben Ng80

Engine:247kw / 336HP

Gerbox:Fast,9-Speed

Drivre Axle:13 Tons Dual-Stage Hub Reduction Rear Axle

Cargo Body Size:5600*2300*1000*1500/1800mm

Cargo Body Volume:16cubic-22cubic

Thickness:Side 4mm;Bottom 8mm

Lifting System:with Front Hydraulic RAM

Hydraulic Cylinders:Optional Hyva Brand

Side Door:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

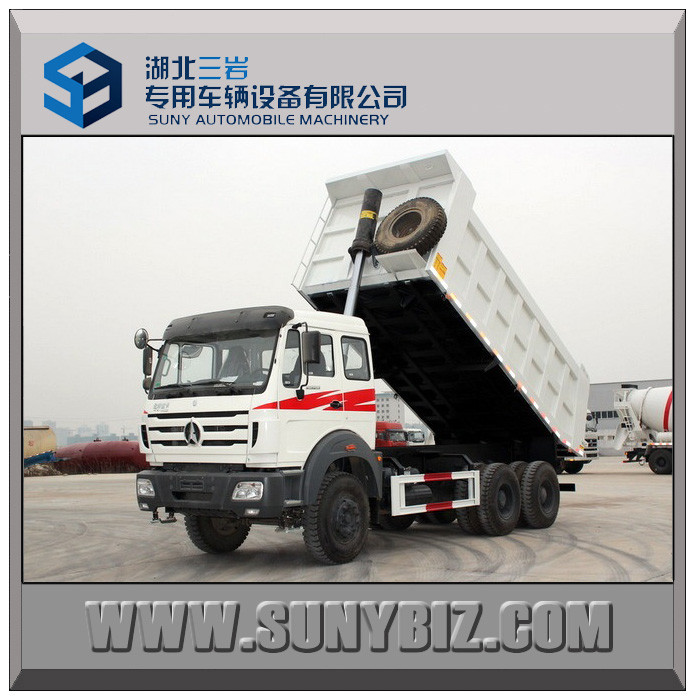

50T 6x6 beiben benz heavy dump truck

Chassis Info:
BEIBEN TRUCK. Load capacity 40T,45T,50T.
Diesel engine, 247kw / 3336hp,FAST,9-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:/5600*2300*1000*1500/1800mm ,
18CBM Dump Truck,20CBM Dump Truck,22cbm Dump Truck/Tipper truck

Equipped with material of carbon steel Q235,Side 4mm thickness;bottom 8mm thickness, Equipped with front hydraulic ram(Optional HYVA Brand),Single rear door.

Products Technical Specification
Type	6*6 Dump truck
Brand	Beiben, North Benz
Cab	NG80
Vehicle Description
Overall dimensions(mm)	834725003484
G.V.W (kg)	25000
Curb weight(vehicle) (kg)	12190
Loading capacity (kg)	25000-45000
Max speed (Km/h)	90
Engine
Engine model	WP10.336
Maximum power	247kw / 336hp
Displacement (lit)	9.726
Engine Manufacturer	Weichai Power Co., Ltd.
Chassis Description
Chassis Model	ND3251F38
Wheel base	3800+1450
F/R track base(mm)	1990/1800
F/R overhang(mm)	1410/1034
Approach/Departure angle	33/55
Spring plate	10/13
rear axle	13 tons dual-stage hub reduction rear axle
Type of fuel	Diesel
Transmission	FAST,9-Speed
Brake System	Air braking
Operation control system	Power steering
Electric system	24V
Tire specification	12.00- 20
Up-parts Description
Van dimensions(mm)	560023001000
Van description	Equipped with material of carbon steel, side 4mm thickness;bottom 8mm thickness Equipped with FRONT hydraulic ram, single door.
Optional Configuration
Cargo body thickness,side door,and HYVA brands hydraulic cylinder,etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have hino water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.
