50m3 20ton Pressure Vessel LPG Tank Trailer, LPG Tank Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

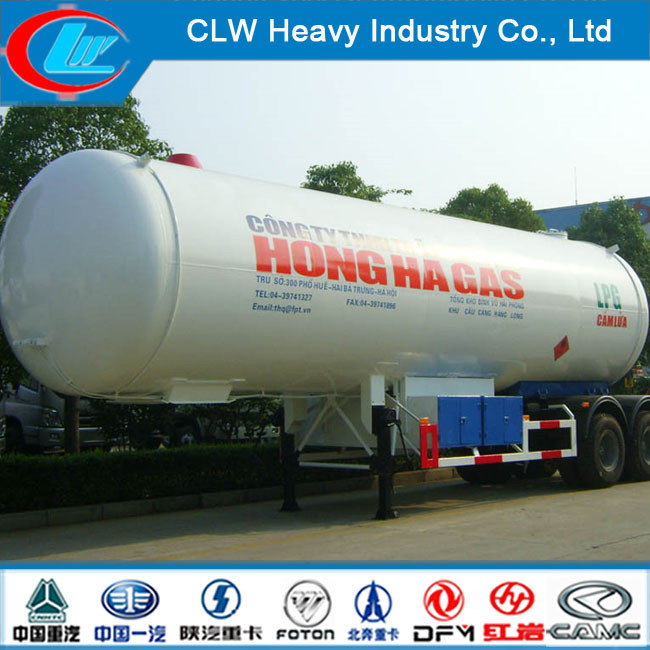

50m3 20ton Pressure Vessel LPG Tank Trailer, LPG Tank Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 32000.0-35900.0/ Piece

Price:$32000.0 - $35900.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 12, 2015 To Aug 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Trailer

Type:Semi-Trailer

Certification:SGS, ISO/TS16949, CCC, DOT, ISO, CE

Loading Weight:50 Ton

ABS:With ABS

Tent Type:Complex

Axle Number:3

Tire Number:6

Color:as Your Like

Condition:New

Description:50m3 20ton Pressure Vessel LPG Tank Trailer, LPG

Volume of The Tank:5000L to 58000L

Shape of End Plate:Ellipse or Round

Axle:3 Axles, BPW, Fuwa or L1 Brand

Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Meter, Cut-off Valve

King Pin:Jost Brand, 50# or 90#

Export Markets:Global

Additional Info.

Trademark:CLW BRAND

Packing:Waxed or Naked Before on Board

Standard:ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC

Origin:Hubei Suizhou

HS Code:87163190

Production Capacity:500unit/Month

Product Description

hina Biggest 59.52cbm LPG semitrailer 3 Axles trailer truck
1:DN2450*8
2:cylinder head
3:2.22Mpa water test pressure good

China Biggest 59.52cbm LPG semitrailer 3 Axles trailer truck
LPG Tamk Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

Production notes:

1, certificate ISO9001, 3C, ASME
2 High quality, low price
3 Loading LPG volume 58.5m3
4 Fuwa, L1 or BPW 3 axles.
5, Very Safety Control System: Float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

About our company

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
LPG tanker trailer brief Introduction

Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test. The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
Seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified
LPG Tank Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of our LPG Tank trailer.please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

Item			Unit	Parameter
Product				doble-bridge LPG Pressure Vessel Semi-trailer(CLW9310GYQ)
Capacity			M 3	40.5
The total mass			kg	30910
Work in mass				13920
Rated contained mass				166990
Vehicle Demension			mm	11324�2500�3730
Axles				2
Wheelbase				6800+1320
Track base	front			-
	rear			1320
Front hanging/Rear hanging			mm	-/1500
Number of leaf spring piece (front / rear)				-8/8
Semi-trailer saddle maximum permissible load mass			kg	16000
Tire Size				11.00-20
configuration		Vessel material	Q345R,16MnIII
		Standard configuration	12-ton BPW shaft, valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders
		Others	Storage for: LPG (propane);
			design pressure 1.77Mpa;
			design temperature 50 �C;
			filling density: 0.43T/M 3 ;
			corrosion margin: 1mm;
			tank dimension: 11058* 2332mm
		Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure

ChengLi Special Automobile Co., Ltd ,we have solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
         We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

We're also producing all kinds of trucks as following.The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck
9.Fecal suction truck,sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck,insulated truck,refrigeration truck
13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.
Warmly welcome yours order!!!
Chengli has elite team which has more years experiences in foreign trade,
customs clearance, marketing, truck sale, construction equipment sale, after sale service and international logistics service. A complete selling system including sale,spare parts sale, after-sale service and customer service.         Dump Truck
u After-sales Service            Dump Truck dump truck
u In-house training and Workshop         Dump Truck  dump truck
u Technical Support          Dump Truck dump truck
u International Logistics Service         Dump Truck  dump truck
u Special Promotions         Dump Truck dump truck
u Purchasing Solutions          Dump Truck dump truck
u Maintenance Program         Dump Truck dump truck
u Consultation Program         Dump Truck  D dump truck ump Truck

New equipment inspection service: For Tractor, Dump Truck, Cargo Truck, Tank Truck....and All Trucks sold by Chengli.
Our advantages

1	Near 20 years Wholesaler experience in truck and truck parts field
2	Specialization: Accurately meet your requirement, Experienced engineers serving for you
3	Good quality: Original products & OEM services, with many Certifications.
4	Great variety and wide range: your "One-shop purchasing service"
5	2 warehouses, More than 10000 square meters
6	Important partner with North Benz,Sinotruk,Shacman and familiar with the market very well

Please feel free to contact with me if you're interested in our trucks.

Contact information
Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your precious suggestion for us!
