5000L Forland4X2 Water Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

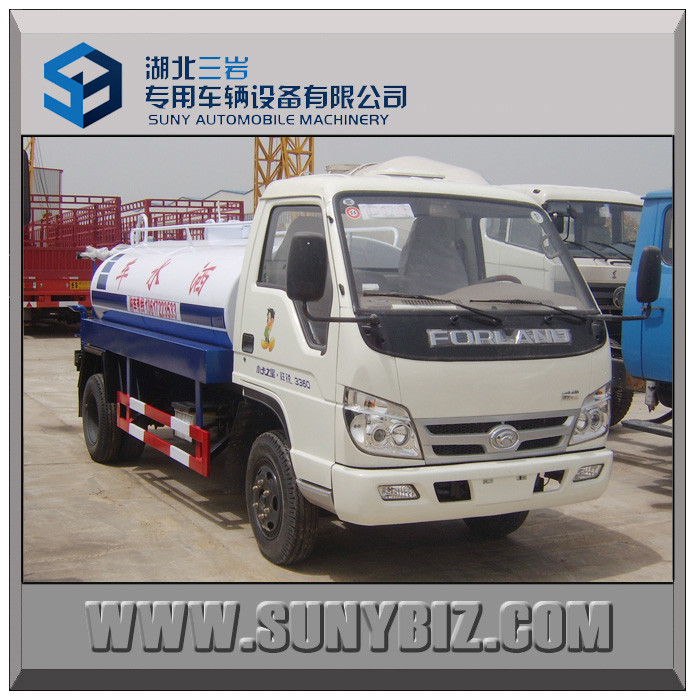

5000L Forland4X2 Water Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$9000.0 - $12000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 12000/ Piece
10.0	US $ 10000/ Piece
20.0	US $ 9000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 26, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BJ1073

Volume:?5000L

Certification:ISO9000, CCC

Emission Standard:Euro 4

Sprinkling Area:?16m

Transmission Type:Manual

Payload:5t

Fuel:Diesel

Drive Wheel:4�2

Engine Capacity:?4L

Engine Type:4 Stroke

Condition:New

Chassis Brand:Foton-Forland

Cabin:Single Row, Rhd or LHD

Wheel Base:3360mm

Engine:70kw / 95HP

Drive Axle:5t

Gearbox:5-Speed

Tire:6.50-16

Tanker Capacity:3000L to 5000L

Tank Material:Carbon Steel Optional Stainless Steel

Thickness:4mm Tank

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

5000L TANK TRUCK
4X2 WATER TRUCK
FORLAND SMALL WATER TANK TRUCK

Products Technical Specification
Brand-Series		FORLAND
Product Name		4*2 water truck
Chassis Model		BJ1073VEJEA-A
Emission Standard		Euro 3
Fuel type		Diesel
Cabin		Single row
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	599019952300
	Tank dimensions	350017001080
	Wheel base	3360
	Front overhang	1085
	Rear overhang	1545
	Min. ground clearance	400
Weight data (kg)	G.V.W	7495
	Curb weight (chassis)	3200
	Max payload	5000
Whole vehicle main performance	Max. speed (km/h)	90
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	4B2-95C40
	Maximum power	70kw / 95hp
	Number of cylinders	4
	Displacement (L)	2.545
	Engine Manufacturer	Anhui quanchai Engine Co., Ltd.
Transmission	Model	5
Transmission	Number of gears	5 forward gears& 1 reverse
Axle	Rear Load capacity (ton)	5T
Suspension	Leaf spring	4/6+7
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres & Quantity		6.50-16 & 6+1
Tank Description
Tank capacity		5000L
Tank dimensions(mm)		350017001080
Tank Description		Shape: Square Material: carbon steel Thickness: 4 mm
Standard Equipment		Equipped with front(rear, side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with Wei Long pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauzeequipped with self-flow valve,Fire coupling and self-priming pump with capacity of 60 cubic meters mph

Other water tank trucks:

Drive Type	Tank capacity
4x2 4x4	1000L ~ 18000L
6x2 6x4 6x4	18000L ~ 25000L
8x2 8x4 8x8	26000L ~ 30000L
water tank trailer	30000L ~ 60000L
Many Chassis brands: Dongfeng,FOTON,FORLAND,FAW,SHACMAN,SINOTRUK,Beiben, IVECO HONGYAN,JAC,JMC,ISUZU,YUEJIN,KAMA,KARRY,T-KING, JINBEI,HINO,UD,etc.

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-100P-600P-700P
-HINO 700
-UD
................,etc.

If you have any questions please let Adam Li know!!!
