50, 000 Liters LPG Storage Tank ISO LPG Gas Tank 5000 Liters LPG Tank for Nigeria

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

50, 000 Liters LPG Storage Tank ISO LPG Gas Tank 5000 Liters LPG Tank for Nigeria

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 19900.0-27900.0/ Piece

Price:$19900.0 - $27900.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 24, 2015 To Sep 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume:20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 100cbm

Loading Medium:Gas, Oil, Petroleum, Propane, Pentane Tank

Mechanical Property Test:Tensile, Strength, Impact Test for Butanetank

Designed Pressure:1.77MPa

Corrosion Allowance:1mm

Medium Density:420kg/M3

Safety Parts:Pentane Tank Discharging Valve, Manholes Cover, D

Shape:Round Shape or Ellipse

NDT:Mt Ut Rt 100% Perform for Pentane Tank

R&D:CAD and Cae Technology

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Contaienr

Standard:ISO9001, CCC

Origin:Hubei

HS Code:8901101010

Production Capacity:1000 Set Per Year

Product Description

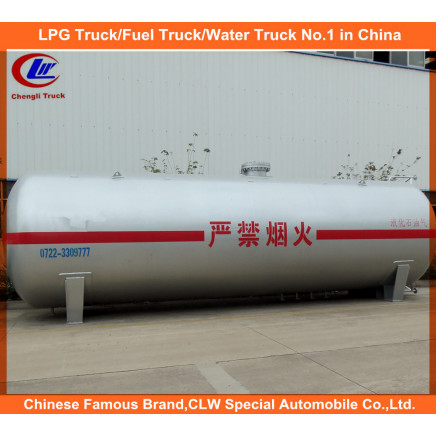

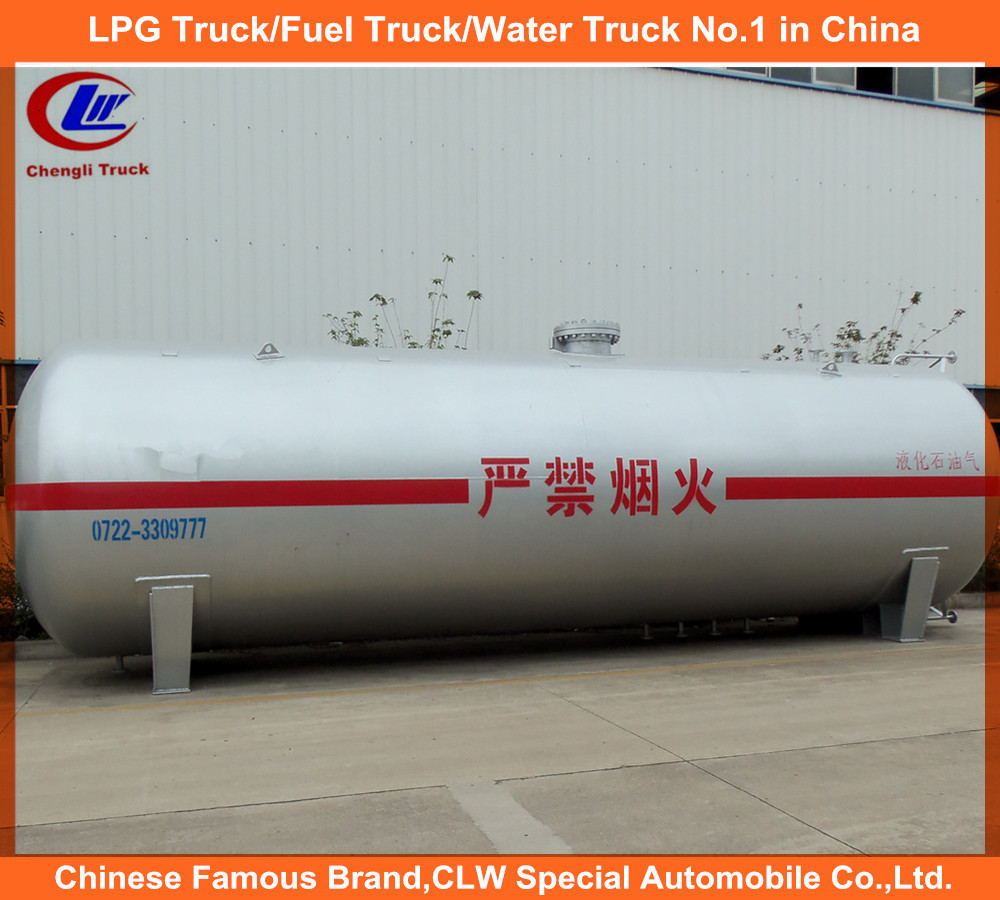

50,000 Liters lpg storage tank ISO lpg gas tank 5000 Liters lpg tank for Nigeria

Tank capacity: 5000 Liters , 10000 liters, 15000 Liters, 20000 Liters, 25000 Liters, 27000 Liters, 30000 Liters, 35000 Liters, 50000 liters, 80000 liters, 100000 liters .

Technique Parameters

DIMENSIONS
Volume of Tank (cbm)	50
Tare Weight (kg)	11470
Filling Capacity (kg)	19950
Thickness of Shell (mm)	16
Thickness of Endplate (mm)	16
tank cylinder diameter (mm)	2800
External Dimensions (mm) (length×width×height)	*861228323422*
Material of Tank and Main Pressure Parts	Carbon Steel Q345R(carbon and low alloy steel)
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Test Pressure	2.20MPa (319.15Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm
Bottom of Tank	metal saddle
Carried Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels.
Safety Valve of Selection Fitting: pressure relief valve, Column magnectic reversible level meter, Pressure gauge, Thermometer, Cut-off valve

Factory show

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

Drawing sketch

Different kinds of LPG

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel

If you are interested in our trucks, pls contact me, I will send our best quotation to you.
