5 Line 10 Axles Low Bed Trailer for Heavy Duty Transport

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

5 Line 10 Axles Low Bed Trailer for Heavy Duty Transport

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$12000.0 - $30000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 30000/ Piece
3.0	US $ 12000/ Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 28, 2015 To Oct 09, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FLY9402TDP

Type:Semi Trailer

Load Capacity:90-120t

Certification:ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, SGS

Wheel Base:1310mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:N.M

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Multi-link Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:8

Tire Number:32

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Size:10600*3000*3100mm

Use:Truck Trailer

Mix-Payload:120t

Rear Steel Ladder:2PCS Opptional

Mainbeam:Lifetime Promise

Color:as Your Requiement

After Sales:1 Year

Export Markets:Global

Additional Info.

Trademark:FLY

Packing:N/M by Road and Sea

Standard:SGS

Origin:Shandong Provice, China

HS Code:87163990

Production Capacity:150PCS/Month

Product Description

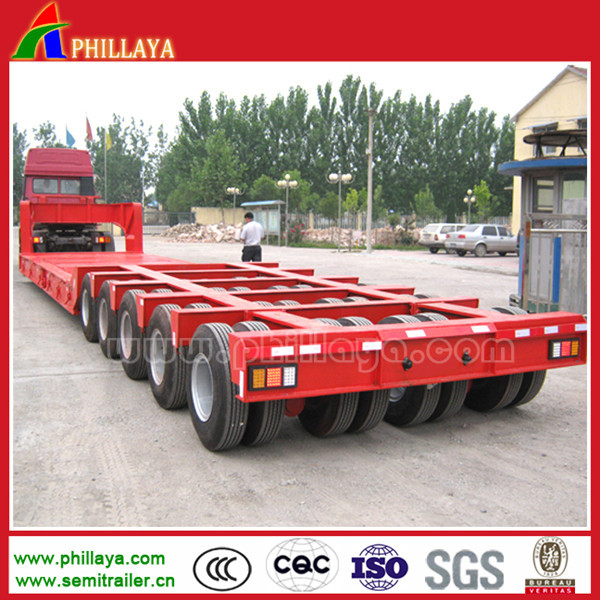

5 line 10 axles low bed trailer
UNIQUE POINTS:
1.Factory direct sales
2.Lowest price comparing the same quality
3.High Quality, with heart-making
4.18 months warranty, main beam whole life time grantee!
5.ISO,CCC,SGS certificate

We can do according to your actual request.

Top quality, best price, best service

Here provide the product sheet for your consideration only:

5 line 10 axles LOWBED SEMI TRAILER
Brand Name	FLY
Model Number	FLY9403TDP
Place of Origin	Shangdong province, China
Color	Any color will be available
Rated Load	90-120T
Tare Weight	9900 kg
Wheel Base	1310 (mm)
Tyre Specifications	10.00R20
No. Of the Tyres	12
Axle Brand	13Tonnage X FUWA Brand
No. Of the Axles	10
Pieces of leaf-spring	40
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Floor	3mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Main Beam Material	Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Brake Air Chamber	Four double and two single chamber
Outside Dimensions	13500x2500x1500 (mm) (LxWxH) (Other Dimension Optional)
Electrical System	24V, 7core socket, lights according to European standards.
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Color and Logo	Depends on the buyer's requirement.
The traction pin	2' & 3.5' inter-changeable
Pin Height	According to the height of the tractor saddle.

COMPANY INFORMATON:

Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,Majored in semi trailer, special vehicle manufacture, our products are mainly exported toPhilippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries

OUR SERVICE:

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs

DEALING PROCESS:

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.

CONTACT INFORMATION:
Ms. Fiona xue
Mob: +86 185 6281 3762
www.phillaya.com
Qingdao Phillaya International Co.,LTD
