5 Cubic / 5000L Cnj 4X2 Water Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$12000.0 - $17800.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 17800/ Piece
10.0	US $ 16500/ Piece
20.0	US $ 15000/ Piece
50.0	US $ 12000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 21, 2015 To Dec 30, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CNJ1080

Volume:?5000L

Certification:ISO9000, CCC

Emission Standard:Euro 4

Sprinkling Area:?16m

Transmission Type:Manual

Payload:5t

Fuel:Diesel

Drive Wheel:4�2

Engine Capacity:?4L

Engine Type:4 Stroke

Condition:New

Chassis Brand:Cnj -Nanjun

Cabin:Single Row

Wheel Base:3360mm

Engine:75kw / 102HP

Drive Axle:5t

Gearbox:5-Speed

Tire:7.00r-15

Tanker Capacity:3000L to 5000L

Tank Material:Carbon Steel Optional Stainless Steel

Thickness:4mm Tank

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

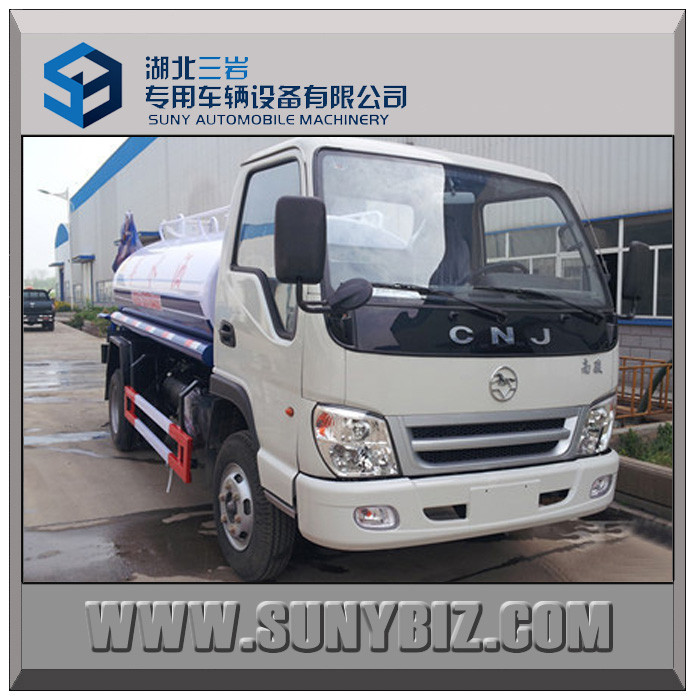

CNJ BRAND, 5 cubic / 5000L Water Tank Truck
CNJ Single row cabin,4x2 drive type,5-speed gearbox,102hp engine.
Equipped water pump,Water spraying equipment(Sprinkler gun,etc)

Other water tank trucks:

Drive Type	Tank capacity
4x2 4x4	1000L ~ 18000L
6x2 6x4 6x4	18000L ~ 25000L
8x2 8x4 8x8	26000L ~ 30000L
water tank trailer	30000L ~ 60000L

We also have many brands of chassis
eg:
-Dongfeng-DFAC-KINGRUN,KINGLONG
-FOTON-AUMAN-FORLAND
-FAW-J5-J6
-SINOTRUK-HOWO-A7
-SHACMAN-F3000-M3000-X3000
-Beiben-NG80-V3
-IVECO HONGYAN-GENLYON-NEW KING
-JAC
-JMC
-YUEJIN
-KAMA
-T-KING
-ISUZU,100P-600P-700P
-HINO 700
-UD
................,etc.

Products Technical Specification
Product Name		CNJ 4*2 water tank truck
Chassis Model		CNJ1080
Fuel type		Diesel
Emission Standard		Euro 4
Cabin		CNJ,Single row.
Whole Vehicle main dimensions (mm)	Overall dimensions (L�W�H)	599520002380
	Tank dimensions	350017501150
	Wheel base	3360
	Front overhang	1100
	Rear overhang	1590
	Min. ground clearance	330
Weight data (kg)	G.V.W	8280
	Curb weight (chassis)	3500
	Max payload	4580
Whole vehicle main performance	Max. speed (km/h)	90
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	YN33CRD2
	Maximum power	75kw / 102hp
	Number of cylinders	4
	Displacement (L)	3.298
	Engine Manufacturer	YUNNIE ENGINE
Gear box	Model	5
Gear box	Number of gears	5 forward gears & 1 reverse
Axle	Front Load capacity (ton)	2
Axle	Rear Load capacity (ton)	5
Suspension	Front	10- Leaf spring
Suspension	Rear	9+6-leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres & Quantity		7.00R-15 & 6+1
Tank Description
Tank capacity	/	5000L
Tank dimensions(mm)	/	350017501150
Tank Description	/	Shape: Square
	/	Material: carbon steel
	/	Thickness: 4mm
	All water truck can be make water wagon for transporting drinking water
Standard Equipment	Equipped with water pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauzeequipped with self-flow valve, Fire coupling and self-priming pump with capacity of 60 cubic meters mph and working platform at back of truck

A.We also have CNJ`S water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

B.Other brand of Chassis
eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,KARRY,CNJ,T-KING,UD,HINO,ISUZU,etc.

C.Product Series
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

D,Packaging & Shipping:
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

E:Customer service:
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 12 months warranty.
We supply quick-wear parts and spare parts in time for customer.

IF YOU HAVE ANY QUESTIONS PLEASE LET Adam Li KNOW.
Mob:0086 137 0717 3051

Additional Information
