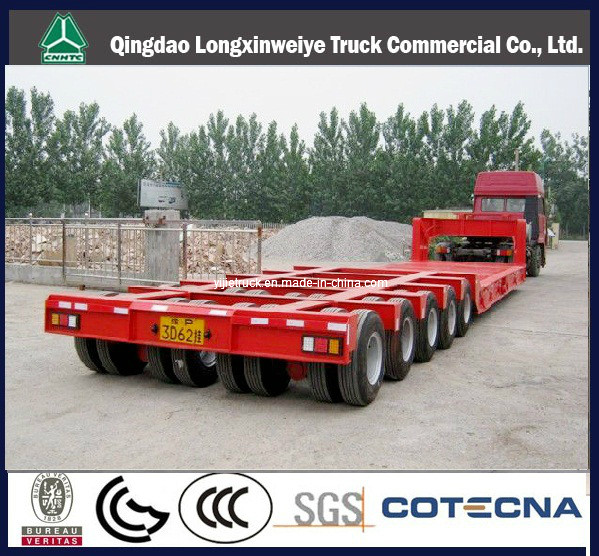

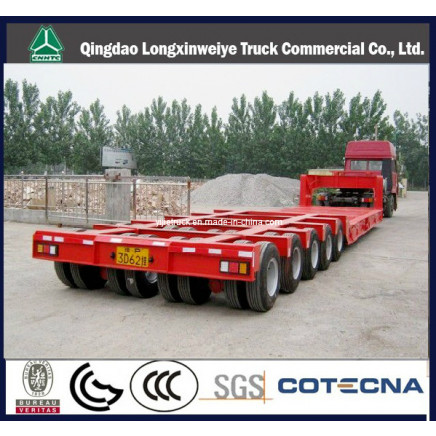

5 Axles 100-200t Hydraulic Steering Modular Lowbed Semi-Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Set)	Unit Price
1.0	US $ 16130/

Price:US $16130.0 / Set

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2015 To Jan 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DBL9002TDK

Type:Travel Trailer

Certification:ISO/TS16949, CCC, ISO, CE

Loading Weight:180

ABS:With ABS

Tent Type:Complex

Axle Number:8

Tire Number:36

Color:Yellow

Condition:New

Material:Steel

Scale:Heavy Duty

Components:Trailer Axles

Load Capacity:100t

Export Markets:Global

Additional Info.

Trademark:Dongbao

Packing:Nude Packing

Origin:Jiangsu, China

Production Capacity:500sets/Year

Product Description

5 Axles Hydraulic Steering Low Bed Modular Trailer

We are the office of professional modular factory in Qingdao and have worked on producted for special trailers for more than 50 years.
Please inform us your requirement about the trailer. Then we can design it according to your request and send to you our specific parameters.

AXIE(N)	2		3		4		5		6		7		8
SPEED(km/h)	5	80	5	80	5	80	5	80	5	80	5	80	5	80
MAX-TOTAL MASS(t)	68	32.8	102	49.2	136	65.6	170	82	204	98.4	238	114.8	272	131.2
RATED PAYLOAD(t)	61	25.8	91.8	39	122.8	52.4	152.5	64.5	183	77.4	213.5	90.3	244	103.2
CURB WEIGHT(t)	7		10.2		13.2		17.5		21		24.5		28
PAYLOAD OF EACH AXLE(t)	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4	34	16.4
OVERALL LENGTH(mm)	3000		4500		6000		7500		9000		10500		12000
OVERALL WIDTH(mm)	3000
HEIGHT(mm)	1175±300
AXLE BASE(mm)	1500
WHEEL BASE(mm)	1800
TYRE SIZE	215/75 R17.5 135/133J
RIM SIZE	17.5 X 6.00
TYRE QUANTITY	16		24		32		40		48		56		64
MAX-ANGLE OF WHEEL	55°
MIN-TURNING RADIUS(mm)	Inside450		Inside1500		Inside2600		Inside1500		Inside2000		Inside2600		Inside3100
	Outside4070		Outside5800		Outside7600		Outside5800		Outside6700		Outside7600		Outside8500
