4X4 off-road accessories snorkel-lc75
(2H DIESEL(4.0L) 3F PETROL(3.4L) LEFT SIDE
Material: LLDPE
Features
- 100 % Brand New—UNITY .
- Each component is designed for maximum dust and water sealing .
- Significantly reduce the hazards of engine damage during water crossings .
- High flow air ducting and body ensures air supply in excess of your engine requirements .
- Your own logo on Packing Carton is available once with large QTY .
- On-Time Delivery , Delivery within 5-7 days after revive your payment .
- A trial order is available too .
- OEM , we can manufacture new model if Sample is offered from you and require big order .
- New material, not Second-hand , to ensure high quality and availability .
- We are one of the earliest Manufacturer that Proficient in producting 4x4 accessories .
7 Years of experiences , Timely and professional service .
- Have been approved by CE&SGS .
Tips :
1. Drilling is REQUIRED (drilling template is included)
2. Please remember to measure MULTIPLE times and use your best judgment before you cut your snorkel. Our snorkels are a guaranteed fit, you just need to make sure they're aligned properly.
1. Remove:
Left hand front wheel.
Wheel arch liner and air cleaner assembly.
2. Cut and remove air cleaner intake snout using the air hacksaw. Sit adapter in place and remove any extra material as required to make air cleaner intake hole the same size as adapter. Drill 7 holes to 4mm. Apply a liberal amount of silicone to adapter and pop rivet to air cleaner housing (see drawing).
3. Mark out inner guard hole by measuring back from radiator support panel 55mm and across 98mm (see drawing). Drill hole to 89mm using the holesaw. De-burr and paint hole. Refit air cleaner.
4. Tape template to upper rear corner of left hand guard. with a felt pen mark out all holes. Drill a 4mm pilot hole for each hole position. Drill main hole to 89mm using the holesaw. Drill the remaining mounting holes to 16mm using the step drill. Cut out new indicator hole using the air hacksaw. File to shape. Drill the 2 locating holes to 6mm. De-burr and paint all holes.
5. Bolt upper mounting bracket to snorkel and install mounting studs. Place masking tape on "A" pillar in approximate position of upper mounting bracket. Sit snorkel on guard and mark around outside of upper mounting bracket. Remove snorkel. Place upper mounting bracket on "A" pillar and carefully mark 4 holes. Drill to 8mm. De-burr and paint holes.
6. Insert plastic plugs to "A" pillar and install upper mounting bracket. Install snorkel and fasten using necessary hardware. Install flexible ducting and tighten hose clamps.
7. Refit indicator to new hole in guard and connect wiring. Refit wheel arch liner and install air RAM and fasten.
1. Mainly Manfacturing as below
Snorkel, Winch, Wheel Arch flares, Air jack, Farm jack, Roof tent, Roof Rack Wheel spacer, Winch accessories, Ground anchor, Water baldder, Awnning, Rack bag, Off-road base, Farm jack mount, Winch damper, Free wheel hub, ect...

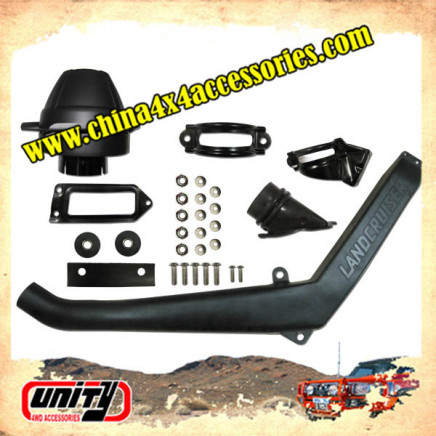

2. Snorkel including bag of bolt and nut, brackets, template, fitting instruction.
3. All Snorkels Model Details
Snorkel:
Toyota: Land cruiser 40, 75, 60, 78, 80, PRADO90, 100, PRADO120, 200, FJ cruiser; Hilux VIG0, 106, 167LA, 167RA.
Nissan: Navara D40, GQ Patrol Y60, GU Patrol Y61(A, B, C, D ), D22 Y160
Mitsubishi: Pajero NH, Triton ML. V31, V73
Isuzu: D-Max
Jeep: Cherokee XJ, JK, TJ
Land Rover: Discovery TD1, Discovery3, Defender TD5, Discovery TD5
Ford: Ford Ranger
4. Brand: Unity 4WD
