4X2 Compression Garbage Truck (QDT5160ZYSE)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

4X2 Compression Garbage Truck (QDT5160ZYSE)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, EXW, CIF, DDP, DAP, FCA

Payment Terms:L/C, T/T

Trademark:Qingte

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT5160ZYSE

Type:Compression

Certification:ISO9000, CCC, TS16949

Volume:10001-15000L

Emission Standard:Euro 4

Transmission Type:Manual

Engine Type:2 Stroke

Payload:6.2t

Fuel:Diesel

Drive Wheel:4×2

Brand:Dongfeng

Models:Medium

Usage:Compression Type

Chassis:Dfl1160bx1

Condition:New

Chassis Model:Dfl1160bx1

Engine Type/Cc(Ml):Isde185 30

Rated Power(Kw):136

Loading Capacity(Kg):6155, 5855

Overall Dimension (Lwh)(Mm):7860X2500X3050

Wheel Specification:10.00-20(Optional)

Gross Weight(Kg):16000

Tank Volume(Cbm):12

Hydraulic System Rated Power(MPa):19

Filling Time(S):25

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:12, 000/Year

Product Description

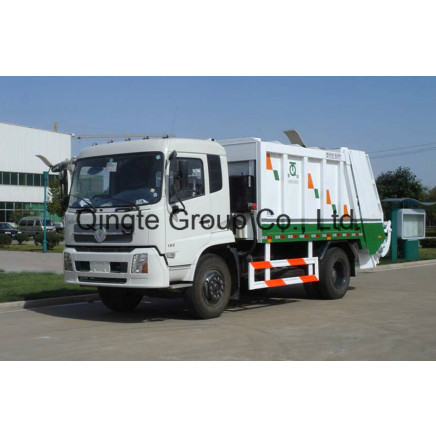

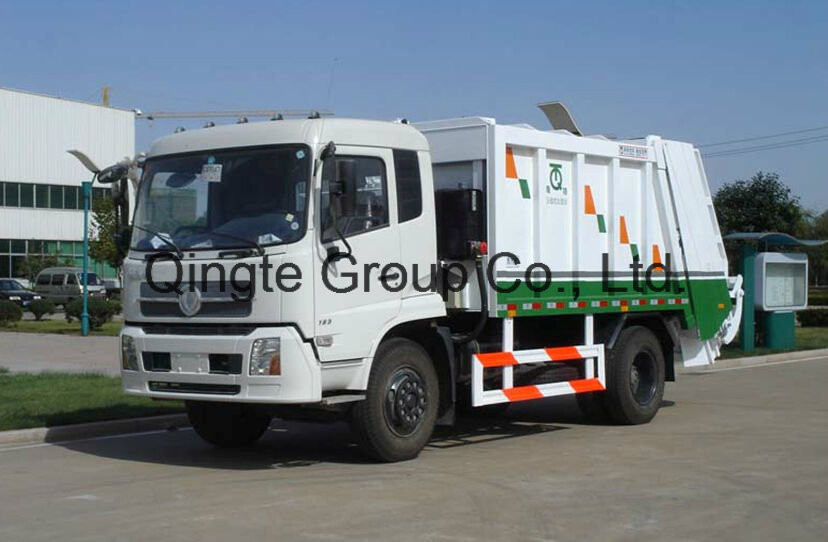

Qingte 4X2 Compression Garbage Truck
QDT5160ZYSE

Key Features:

1. Arc-shaped Side Plate structure and Frame Structure optional

2. Adopting high strength wear-resisting plate for loading device to sustain repeatedly impaction and friction.

3. Key components like guide rail are all machined parts equiping high-tech nylon ensuring precision and steady.

4. With help of Double Pump and Double Circuit System, working life is raised and energy consumption has been reduced.

5. Adopting imported multitandem valve for compressing, realizing stable two-way compression.

6. Compressing system has both single cycle and auto-continuous compressing loop.

Model	QDT5160ZYSE
Chassis Model	DFL1160BX1
Engine Type/cc(ml)	ISDe185 30
Rated Power(kw)	136
Loading Capacity(kg)	6155,5855
Curb Weight(kg)	8700
Gross Weight(kg)	16000
Max Speed(km/h)	85
Wheel Specification	10.00-20
Dimension(L/W/H)(mm)	7860x2500x3050
Wheel Base ( )	3800
Overhang(Front/Rear) ( )	1880/1860
Approach Angle/Departure Angle ( )	20/13
Tank Volume(m³)	12
Filling Volume( )	1.9
Hydraulic System Rated Power(Mpa)	19
Filler Opening Lower Edge Ground Clearance(mm)	1130
Filling Period( )	25
Garbage Unloading Time( )	40
Waste Water Tank Volume(L)	?200
Mechanical Hand Tipping Quality(kg)	?600
Garbage Compression Density(kg /m 3 )	?800
