4X2 4.5m3 Forland Oil Truck/Fuel Tanker Truck (ZLQ5063GJY)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

4X2 4.5m3 Forland Oil Truck/Fuel Tanker Truck (ZLQ5063GJY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 5000.0-9999.0/ Piece

Price:$5000.0 - $9999.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 15, 2015 To Jul 09, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZLQ5063GJY

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Tank Volume:?5000L

Drive Wheel:4×2

Seats:?5

Horsepower:?150hp

Engine Capacity:?4L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Bias

Condition:New

Fuel:Diesel

Engine Type:2 Stroke

Volume:<10000L

Type:Oil Truck

Payload:3000kgs

Tire Specifications:7.00-16

Chanssis No.:Bj1063vcjea

Engine Model:Ca4DC2-10e3 (Euro 3 Efi)

Oil Pump:65yhcb-35 Yhcb

Oiling Machine:Beijing Jialijia Oil Machine

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:ZHONGLU

Packing:Nude Packing

Standard:CE ISO

Origin:China

HS Code:8704230090

Production Capacity:500 Sets Per Month

Product Description

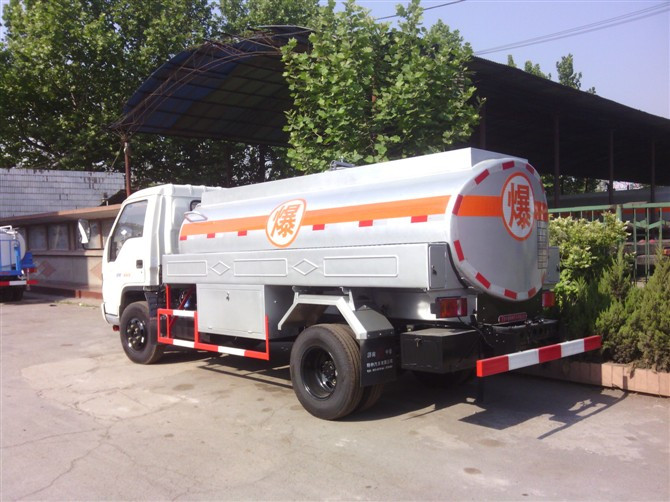

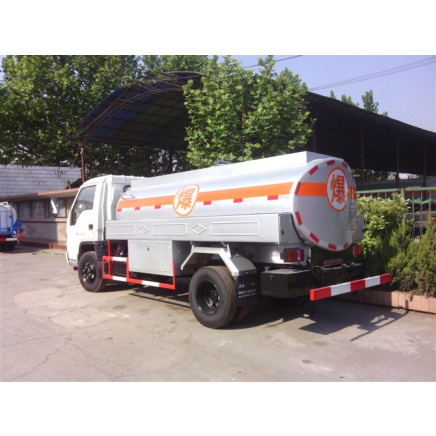

4x2 4.5m3 Forland Oil Truck/fuel tanker truck (ZLQ5063GJY)

Products Description:

Oil tank truck or refueller or fuel tanker or fuel tank truck is mainly suitable for transportation and storage of petroleum derivatives which include gasoline, diesel oil, crude oil, lubrication oil coal tar and more.
It comes with many functions like oil refueling and carrying according to different operating environments.
Oil tank truck is made of tank, power take-off device, transmission shaft, gear oil pump, pipe network system, etc. And five components oil pump, two way ball valve, tee and four way ball valve, oil screen and pipeline.

Maintenance knowledge of fuel tank truck:

To prolong the service life of oil tank truck, maintenance of oil tank truck is a must. The maintenance common sense includes oil and filter change of engine system, renewal of easily damaged parts such as belt, spark plug, storage battery, brake pad, clutch disc, shock absorber, etc. In addition to this, routine maintenance also embraces auto beauty like car wash, complete surface care, and interior trim care.

Dimension	Dimension		5995x1970x2350 mm
	Wheelbase		3360mm
	Tread	Front tread	1596mm
		Rear tread	1525mm
	Suspension	Front suspension	1085mm
		Rear suspension	1550mm
	Approach/departure angle		13.5/19 °
	The volume of container		4.49m 3
	The dimension of container		1500x1100x3950mm
	Min. turning circle		14.5m
Weight	The overall weight		6495kgs
	Curb weight		3300kgs
	Loading weight		3000kgs
	Passenger number		3
Main configuration	Transmission	Model/Speed	1701010-Q2351/5 speed
		Ratio of each speed	i1=5.186, i2=2.643, i3=1.519, i4=1.000, i5=0.738;
		reverse gear	iR=4.657
	Axle		"Work" word section forging front axle, 4 piece of longitudinal leaf spring suspension.
	Clutch		Single chip, dry, diaphragm spring, hydraulic booster clutch
	Tyre		7.00-16
Performance	Chassis model		BJ1063VCJEA
	Engine	Model	CA4DC2-10E3 (EURO 3 EFI)
		Displacement	3168ml
		Power	76/103 Kw/ps
	Fuel consumption		10.5L/100km
	Oil pump	Model	65YHCB-35 YHCB
		Rate of flow	35m3 /h
		Self-absorption time	4s
		head of delivery/oil absorption depth	25/7 m
		Oil hose	2 piece of 3m oil hoses;
		Pipeline	2inch
		Ball vales	2.5inch
	Fire extinguisher		2 pieces
	Oiling machine		Beijing jialijia oil machine
	Max. speed		94km/h
