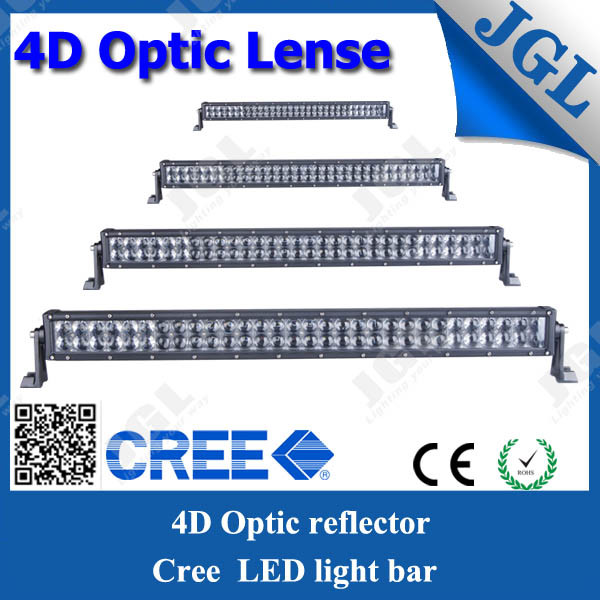

4D 55inch 500W Optic Reflector led light bar
Model Number: JG-BK03-500Description:Bulb: Super Bright CREE 500watt
Color Temperature: 6000-6500K
Power: 500w
Operating Voltage: 9-32V DC
Luminous: About 8800 Lumens
Current:2.83A @12V,1.41A@24V
Lifespan: 50, 000HoursOperation Temp: -40 ~ + 155 deg
Close range illumination with clear lens
And over voltage protection
Die-cast aluminum housing and stainless steel bracket and PC Lens
Back of housing has large cooling ribs for optimized heat dissipation
Size: 55 inch
Certification:CE,ROHS,IP67
Warranty:2 years
IP67Certification:
Application:LED Work light, LED headlight, LED auto lamp, LED driving lamp for Mining, forest machinery, marine, agriculature machinery, Off-road vehicles, forklifts, tractors, trucks, engine, ATV, UTV and some heavy duty cars.Advantages:
1. LED chips from US;
2. Lamp body is faster radiating than aluminum,high temperature resistance,beautiful exterior;
3. Lamp cover adopted imported pmma technology,good vitreousness,anti high/low temperature burst;
4. Lamp reflector used optical reflectivity projector lens,long reflect distance;
5. Fix device from Japanese airlines tighten technology,stainless steel,shakeproof,rust-proof,water proof;
6. Energy saving,high brightness,long lifespan,adopted japanese encapsulation technology;
7. Universal for 9V-32V power sources;
8. Battery life: more than ordinary led bulbs, more than 30000 hours;
9. Excellent water-proof and shock-resistant aluminum housing;
10. Dazzle soft light;
11. Work in rain and difficult operation conditions;
12. Easy to wire up, install and adjust.
Other size for your option:7.5'' 60W Cree double row 4D Reflector led light bar
13.5'' 120W Cree double row 4D Reflector led light bar 21.5'' 200W Cree double row 4D Reflector led light bar
31.5'' 300W Cree double row 4D Reflector led light bar
41.5'' 400W Cree double row 4D Reflector led light bar50'' 480W Cree double row 4D Reflector led light bar
55'' 500W Cree double row 4D Reflector led light barModel | Output Power | Brightness | Bulb Type | Voltage | Waterproof | Dimension |
JG-BK03-60 | 60W | 1680Lm | Cree 3w*8pcs | 9-30V | IP67 | 7.5'' |
JG-BK03-120 | 120W | 2640Lm | Cree 3w*12pcs | 9-30V | IP67 | 13.5'' |
JG-BK03-200 | 200W | 4200Lm | Cree 3w*30pcs | 9-30V | IP67 | 21.5'' |
JG-BK03-300 | 300W | 8800Lm | Cree 3w*40pcs | 9-30V | IP67 | 31.5'' |
JG-BK03-400 | 400W | 13200Lm | Cree 3w*60pcs | 9-30V | IP67 | 41.5'' |
JG-BK03-480 | 480W | 17600Lm | Cree 3w*80pcs | 9-30V | IP67 | 50'' |
JG-BK03-500 | 500W | 21120Lm | Cree 3w*96pcs | 9-30V | IP67 | 55'' |
