45tons Sinotruk HOWO Heavy Dumper Truck 6X4 Tipper Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

45tons Sinotruk HOWO Heavy Dumper Truck 6X4 Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$35000.0 - $40000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 40000/ Piece
10.0	US $ 38000/ Piece
20.0	US $ 35000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 30, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3257N3447A1

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 2

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Cnhtc Sinotruk HOWO

Engine:247kw (336HP)

Gerbox:Hw15710 10 Forward Gears, 2 Reverse Gear

Drivre Axle:Hc16

Cargo Body Size:5200*2300*1500/1800mm

Cargo Body Volume:18 Cubic-20 Cubic-22 Cubic

Thickness:Side 4m;Bottom 8mm

Hydraulic Cylinders:Middle Hydraulic Optional Front Lift

Side Door:Optional

Left / Right Hand Drive:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

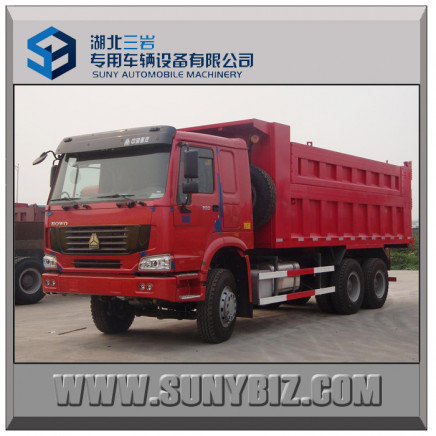

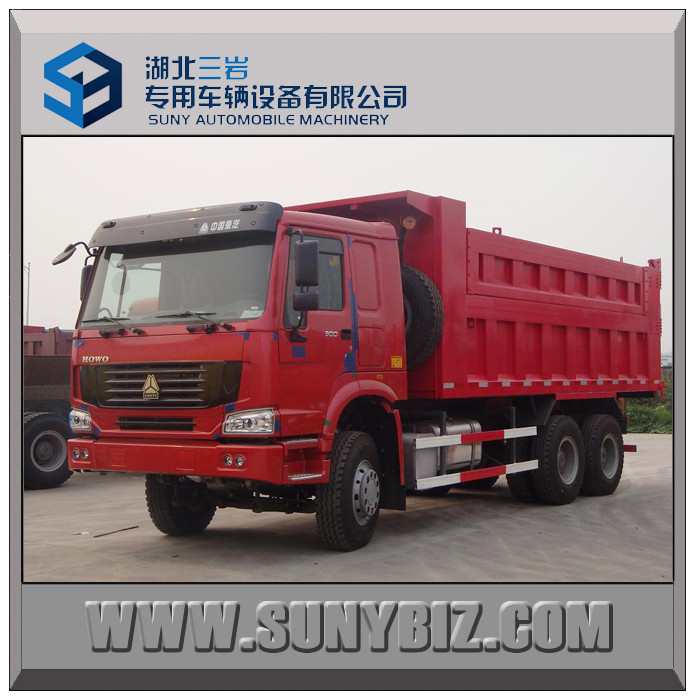

45T sinotruck howo 6x4 heavy Dump Truck / Tipper truck
howo Half row with A/C sleeper,howo gearbox 10-speed
CNHTC sinotruk engine 247kw/336hp,HC16 rear axle
dumper drive type;6x4 Optional 6x6 and 8x4
dumper box size:5200*2300*1500/1800mm 18cbm ~ 20cbm ~22cbm
LEFT HAND DRIVE OR RIGHT HAND DRIVE

Dumper Equipped with material of carbon steel Q235,
Side 4mm thickness;bottom 8mm thickness,

Dumper Equipped with middle hydraulic ram
(Optional Front lifting;HYVA Brand),Single rear door.

Products Technical Specification
Type	Sinotruk 6*4 Dump Truck
Cab	HW76,single sleeper,with A/C
Vehicle Description
Overall dimensions(mm)	783524963170
G.V.W (kg)	25000
Curb weight(vehicle) (kg)	12200
Loading capacity (kg)	25000-45000
Max speed (Km/h)	75
Engine
Engine modle	WD615.69 Euro 2
Maximum power	247kw (336hp)
Displacement (lit)	9.726
Engine Manufacturer	China Heavy Duty Truck Group Co., Ltd.
Chassis Description
Chassis model	ZZ3257N3447A1
Wheel base	3425+1350
F/R track base(mm)	2022/1830
F/R overhang(mm)	1500/1560
Approach/Departure angle(�)	19/30
Spring plate	10/12
Rear axle	HC16
Type of fuel	Diesel
Gear box	HW15710, 10-speed with over drive
Steering	ZF8098
Electric system	24V
Tire	12.00R22.5
Dumper body Description
Van dimensions(mm)	520023001500/1800
Van description	Equipped with material of carbon steel, side 4mm thickness; bottom 8mm thickness, Equipped with middle hydraulic ram, single door
Optional Equipment	HYVA Brand Front Lifting System Radial Tire,Dumper body thickness,side door,etc

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have SINOTRUK howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .

MOB: 0086 137 0717 3051
If you have any questions please let Adam Li know.
