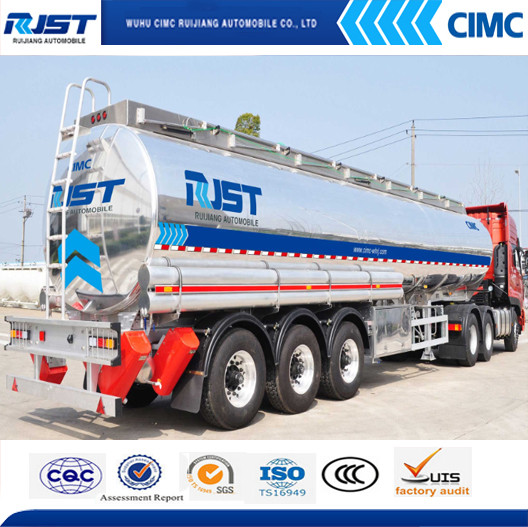

45m3 Aluminium Fuel Tank Semi Trailer/Oil Tank (WL9405GYY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 60000.0-75000.0/ Piece

Price:$60000.0 - $75000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From May 14, 2015 To Jul 18, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9405GYY

Type:Tanker Trailer

Load Capacity:40t

Certification:ISO9001, CCC, ISO/TS16949, SGS

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:6

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Aluminum/Alloy

Scale:Heavy Duty

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude

Standard:ISO9001

Origin:China

Production Capacity:5000 Units Per Year

Product Description

The advantages of producing tanks from aluminum alloys:
1. Maximum solidity and lightness of the construction;
2. Reducing transport costs by 1 ton of the transported goods;
3. Improving safety of transporting hazardous goods (not subject to corrosion, wearproof, spark-proof)
4. The lightest vehicles, with maximum volume and a long service life for all types of cargo

42m3 Aluminum Alloy Tank Semi-trailer with Three Axles
Parameter	Dimension(mm)	1229025003650
	Tare Weight(kg)	6500
	Loading Capacity(kg)	31600kg
	Tank Thickness	5.5mm
	Bulkhead Thickness	6mm
	Baffle Thickness	6mm
OEM	Landing Gear	JOST 17'',single operation
	King Pin	JOST 50#,assembled
	Axle	3 units,10T BPW
	Suspension	air suspension,BPW
	Tire	6 units,385/65R22.5,double coin
	Rim	6 units,11.75R22.5,aloca aluminum alloy
	Manhole	EMCO
	ABS	4S/2M,WABCO
Others	Fire Extinguisher	2 units,8kg
	Tool Box	1 unit,0.8m
	Spare Tyre Carrier	2 units

The Aluminium Alloy semi trailers is applied to transport OIL, FUEL, DIESEL, WATER AND ALL KINDS OF LIQUEFIED CHEMICALS in a short or long distance. It's an ideal equipment to transport oil from oil storage field to oil plant, and transfer oil from refinery and wharf to oil storage field. It is also been used in refueling service station.

PARAMETER	Dimension(mm)	Lwh: 12972x2500x3750(mm)
	King pin setting(mm)	1715mm
	Kin pin plate height (mm)	1366mm
	Axle space(mm)	7060mm+1310mm+1310mm
	Tare weight	7500kgs
	Loading capacity	47000L (Valid 45500L)
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	Jost 2" bolted type
	Brake system	Wabco brake valve;
	Abs	4s/2M
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	Air bag Suspension
	Axle	Fuwa axle,13 ton capacity/set,3sets
	Tire	425/65R22.5-20pr , 6 pcs Double Coin Brand;
	Rim	13.0-22.5 6pcs, Aluminium Alloy
	Tool box	1
	Spare tire carrier	2
TANK SPECS	Compartment	Three,15000l/15000l/15000l
	Tank material	Aluminium Alloy, thickness 6mm,5mm
	Bulkhead and Bafflr	Thickness is 7mm
	Tank Shell	Thickness is 6mm & 5mm
	Shape of tank	Ellipse (double "d")
	Test pressure designed	36kpa
	Manhole	20"Aluminium Alloy Manhole Cover, C801-560,
	bottom valves	3, Aluminium Alloy
OTHERS	Oil Gas recovery System	Equiipped
OTHERS	Anti-overflow System	Equipped
