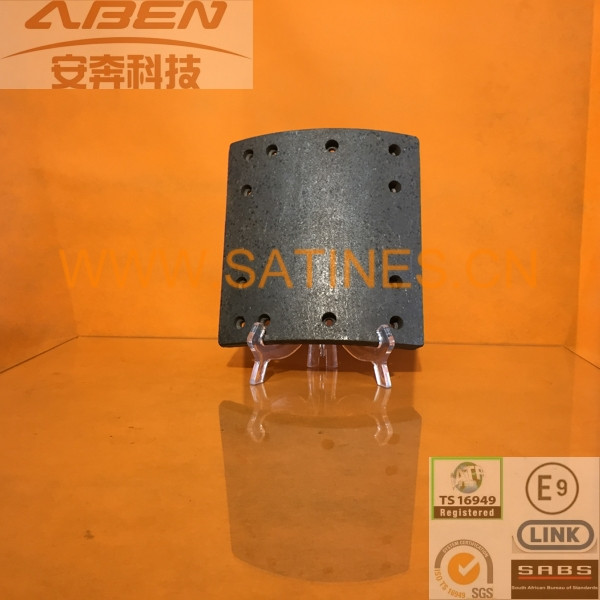

4591cam Top Auto Spare Parts Brake Plate for American Vehicle

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 0.5-2.0/ Piece

Price:$0.5 - $2.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Jun 25, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FMSI 4591CAM

Type:Brake Lining

Material:Non-Asbestos

Position:Rear

Certification:TS16949, SGS, ECE, SABS Vc8053

Classification:Drum

Drum Brakes Classification:Brake Lining

Main Market:North America

Fmsi No.:4591cam

Size:W:190.5 T:18.03 L1;140.21 L2:135.38

Vehicle:American Type

Holes:12

Export Markets:Global

Additional Info.

Trademark:OEM avaliable

Packing:Export Standard Packing

Standard:CE

Origin:China

HS Code:8708301000

Production Capacity:500000t/M

Product Description

ANHUI ANBEN FRICTION MATERIAL TECHNOLOGY CO.,LTD
Place of Origin:Anhui China (Mainland)
Brand Name:AB - SATINES
Model Number:FMSI 4591CAM
Application:American Type
Product     Size
Length1:140.21mm length2:135.38mm
Width:190.5mm      thickness:18.03mm
rivets:12
Quality Assurance:
Certificate and standard.
1. According to GB5763-2008
2.ISO/TS16949:2009
3.SABS

Market:
China inland, South America,South Afica, West Africa, The Middle East.Europ and America.

Packaging & Delivery
Packaging Detail:4PCS/nl, 2sets/brownbox
Provide standard packaging according to clients' requirement
Delivery Detail:35-45days after deposit receipt and sample confirmed

Specifications
1.High performance

2.Competitive price

3.Strong packing

4.Fast delivery

Asbestos free, IL/66/67/1ASBESTOS FREE 23K FF GRADE   GF, PASSED SABS, E-CERTIFICATION, LINK TESTING

Our factory can offer our customer brake lining with asbestos and non-asbestos.

Our products is for all kinds of vehicles and heavy duties.

Application:Mitsubishi
With the reasonable material components, the brake linings is with the following character:
1) Friction coefficient:FF degree under chase tester.
2) Low density, noiseless, excellent wear resistance and heat resisitance.
3) Processing methods:Hot-press, heat-treatment, drill, grind, dust-clear.
4) We will use BRASS according to customer's requirements.
5) Hurtless to corresponding drum, 100% non-asbestos, you will find it sensitive and safe while braking

Other information:

Inspection Item	Standard	Test Result
Normal Temperature Friction Coefficient (150ºC)	0.42±0.06	0.4
Hot Friction Coefficient(250ºC-300ºC)	0.42±0.09	0.39
Wear Rate(×10-7m3/Nm150ºC)	0.77	0.16
Density(g/cm3)	1.8-2.35	2.12
Impact Force(J/cm2)	?0.30	0.46
