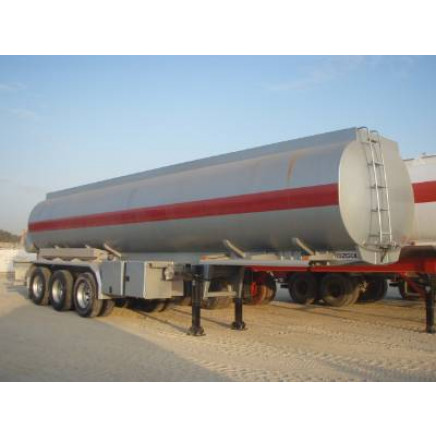

45000 Litres Oil Tanker Semi Trailer Made by Factory

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:jupiter

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:12500*2500*3900mm

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Size:as Your Requirements

Colour:as Your Request

Cusom Made:Available

Export Markets:North America, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:jupiter

Packing:Nude or as Customer?s Requirement

Standard:ISO

Origin:China

HS Code:87163910

Production Capacity:1000 PCS Per Year

Product Description

Type tanker: semi trailer
Product Name: Fuel/Oil tanker semi trailer
Shipping Terms: Shipping by bulk cargo because its huge body.
Delivery time Production Term: 15 workdays for one set oil tank semi trailer
Weight
Tare Weight: From 11550kg to 12800kg
Tanker capacity: From 30m3 to 55m3 for your choose
Loading Capacity: 30-60ton
Axle Weight Load: 13/16/20T
Specification
Axle No. / specs. 2 or 3 FUWA or BPW brand
Tire: 11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone brand
King Pin: JOST 50# or 90# traction pin
Outside dimensions: (L*W*H) 11000× 2490× 3950mm, 12500× 2490/2500× 3950/3800mm,
13000× 2490/2500× 3950/3900mm
Support legs: 28Tons (Tongyada Brand)/Jost D200T
Rear ladder With ( as in the picture)
Rim: 8.25× 22.5/9.00*22.5 Vacunnm tire Zhengxing Brand
Wheelbase: 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm
Steel Spring: 10 pieces per axles
Compartment Three
Manhole 2/3/4 pieces(Diameter is 500mm)
Discharge mouth diameter is 280mm
Number of Tire: can be choose freely
Fire Extingguisher: Two pieces
Spare Tire Carriers: 2pieces
Tool box: 2PCS
Frame:
The material of Tanker body The tanker body made of 5mm steel plate, the forside head and back side head made of 6mm steel plate, the shape can be column or TV square shape.
Brake:
Brake Chamber Four double and two single chambers( TKL brand )
ABS system Without ( Can be choose freely)
Emergency Valve WABCO
Electriacl:
Voltage 24V
Receptacle 7ways (7wire harness)
Miscellaneous
Painting According to the requirement of the buyer
Marking According to the requirement of the buyer
Side Guard According to the requirement of the buyer
Tools box One pieces or According to the buyer

Trailer Model	2 /3 axles fuel semi trailer
OverallDimension(LxWxH)(mm)	1250025003900mm/customize
Payload	40ton
Volume	40-45CBM/customize
Tank	Single compartment
Tank body thickness	5 /6mm
Front and end plant thickness	5/6 mm
The diesel engine	Standard extraposition 4102
air compressor	Standard 12 CBM
Landing Gear	Standard single 28ton
Traction Pin	90mm
The material of main beam	The height of the beam is 500 mm, upper plate is14mm,
The material of main beam	down plate is16mm,middle plate is 8mm.
Axle	FUWA brand, 2 axles, 13ton/axle
Wheelbase(mm)	6200/7780/8880+1310+1310 mm
Suspension system	Common Mechanical suspension
Steel Spring	-/10/10 leaf spring suspension
Steel rim	12 pieces
Tire Type and quantity	12R22.5 8 pieces
Spare Wheel Bracket	2 pieces
Ladder	Yes
Tool Box	1 standard
access door	2 sets
Brake system	Dual Line braking system
Brake block	3 pieces ,dilated
Brake air chamber	Six double air chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	According to customer's requirement
Painting	Color by customer's requirement
Packing	Polish with wax before shipping
Usage	Is mainly used for transporting dry bulk cargo,suck as cement, flour, grain,
	Flexible , convenient operation, working efficiency, large volume, make full use of space
	and the advantages of safe and reliable.
