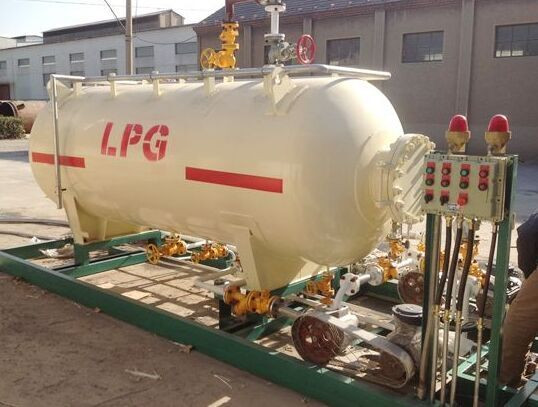

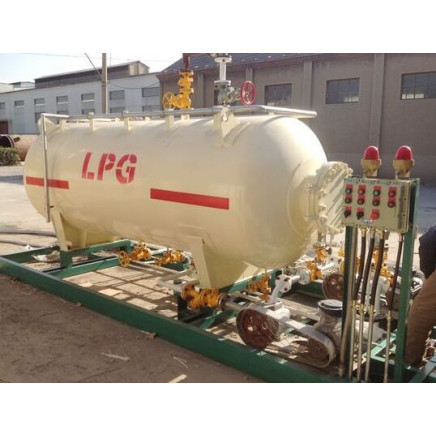

45, 000liters LPG Skid Station Truck Cylinder LPG Plant Filling Station for Negiria

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 36800.0-37800.0/ Piece

Price:$36800.0 - $37800.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 01, 2015 To Aug 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Heavy Industry Co.

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Name:58.5 Cubic Meters LPG Tank Semi Trailer

Axle:3 Axles

Medium:LPG, Liquid Propane Gas

Medium Ratio:0.42kg/Cubic Meter

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked, Waxing and So on

Standard:ccc, asme, dot, ce, sgs, bv

Origin:Hubei China

Production Capacity:10000 Piece/Year

Product Description

lpg tank for storage cooking lpg gas, home lpg gas, lpg tank for filling home lpg gas bottles, home lpg gas cylinders, lpg gas filling station, skid lpg gas filling plant

usage: storage & delivery LPG ( liquid propane gas), filling home lpg gas, cooking lpg gas cylinders dispenser
load weight: 25 metric tones LPG/ 58.5m3, 58500 liters

contact : Caroline +8615117073372

3 axles 58.5m� LPG tank semi trailer
Item	Specification
Overall size	1290025003977mm
Tank size	24751112607mm
Curb weight	15430kg
Loading weight	24570kg
filling medium	LPG, liquid propane gas
Medium ratio	0.42kg/L
Corrosion Allowance	1mm

Designed Pressure	1.61Mpa
Working Temperature	-50�C
Capacity	58.5m�, 58500liters, or 24570kg
Axle	BPW, 3 axles, 13T/ per axle,
Tires	12.00R20
Tank material	Q345R carbon steel
Equipment	Single liquid outlet, two sides load and unload, two gas valve boxes, two tool boxes, safety valve, thermometer, pressure gauge, emergency cut-off valve, 13T BWP axle, 12 tubeless tire, one spare tire, JOST outrigger, JOST King Pin, fire bottle, anti-static ground tape, wheel splash guard, ABS
Manufacture	Chengli special automobile co., ltd
