Description

Details

Basic Info.

Model NO.:4340 racing connecting rod for VW(Volkswagen) VR6

PCS/Set:6

(Mm)C-C:164

B/E Bore:56.8

S/E Bore:20

B/E W:19.9

S/E W:19.9

Bolt:3/8"

Quality Guarantee:3 Years

MOQ:1PC If Have Stocks & 50PCS for Producing

Certification:ISO9001, Ts16949, ISO14001 and So on

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA and so on

Packing:Neutral, Xytosan or Upon Customers? Needs

Standard:OEM STD

Origin:Mainland of China

HS Code:8409919930

Production Capacity:About 3000000PCS /Year

Product Description

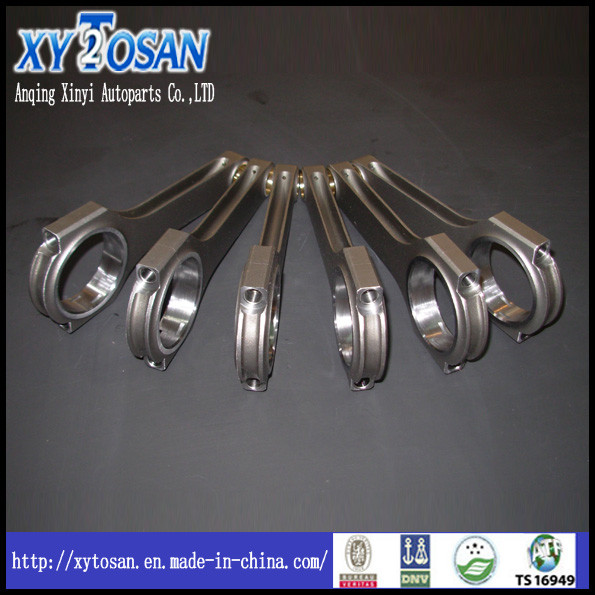

4340 racing connecting rod for VW(Volkswagen) VR6

Product details
1) Material: 4340 forged steel;

2) Beam: H beam & I beam;

3) Hardness: 600-1000hp.

4) Technical flowsheet of connecting rod production

?	Roughcast testing whiling drawn into	?	Mill rod, Cover plane ,	?	Capitulum hole drilling ,and converse angle	?
	Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover ,stage	?
	Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
	Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
	Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
	Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
	Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
	Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
	Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory	?

Strong capability
1) Production: more than 300000pcs/month;

2) Certification: ISO9001, Ts16949, ISO14001, etc.;

3) We have ANGOLA branch;

4) Brand: XYTOSAN, GPM, PAGZD, GEO, KOSFA, etc.;

5) MOQ: 1pc if have stocks & 50pcs for producing.

Volkswagen racing connecting rod:

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.246	VW	VW(5.300")	4	134.62	57.795	22	22.5	25.3	3/8"
No.38		VW(5.394")	4	137.01	57.795	22.02	22.5	25.3	3/8"
No.38b		VW(5.394")	4	137.00	57.795	22.02	22.53	25.3	5/16"
No.40b		VW(5.716")	4	145.20	57.8	22	22.7	22.7	3/8"
No.41		VW(5.325")	4	135.00	57.795	22.02	22.5	25.3	5/16"
No.42		VW(5.500")	4	139.00	57.795	22.02	22.5	25.3	5/16"
No.43		CHEVY(5.325")	4	135.20	53.975	22	22.53	25.3	3/8"
No.43b		CHEVY(5.325")	4	135.20	53.975	22.02	22.53	25.3	5/16"
No.44b		CHEVY(5.600")	4	142.40	53.975	22	22.53	25.3	3/8"
No.45		CHEVY(5.700")	4	144.80	53.975	22	22.53	25.3	3/8"
No.46		CHEVY(5.700")	4	144.80	53.975	22	22.53	25.3	5/16"
No.46b		CHEVY(5.700")	4	144.80	53.975	21.02	22.86	22.86	3/8"
No.47b		VW 2.0L GOLF	6(4)	165.00	50.6	20	24.95	24.95	3/8"
No.251		CC159mm	5	159	50.6	21	24.95	24.95	5/16"
No.252b		154 (HAO)	6	154	56.8	21.01	20.12	21.92	5/16"
No.252c			4	154	56.8	21	20.15	22	5/16"
No.137b		148-20	4	148	50.6	20	24.95	24.95	5/16"
No.144		G60(1.5L 1.6L)	4	136	50.6	22	25	25	3/8"
No.48		Audi S3-TT	5(4)(6)	144	50.6	20	24.95	24.95	3/8"
No.48b		Audi S3-TT	5(4)(6)	144.00	50.6	20.005	24.85	24.85	3/8"
No.48c		Audi S3-TT(X)	5(4)(6)	144.00	50.6	20	24.95	24.95	3/8"
No.48e		Audi S3-TT	5(4)(6)	155.00	50.6	20.005	24.95	24.95	3/8"
No.48h		Audi S3-1	5(4)(6)	144.00	50.6	20.005	24.95	24.95	3/8"
No.48i		Audi S3-2	5(4)(6)	154.00	50.6	20.005	24.95	24.95	3/8"
No.136c		Audi S2 155	5	155	50.6	22	24.95	24.95	3/8"
No.136b		154	6	154	50.6	21	20.15	21.95	3/8"
No.136d		159 RS4 V8	8	159	56.8	20	20.12	22	5/16"
No.136a		S4 V6 V8 154	6	154	57.6	21	20.15	21.95	5/16"
No.144b		G60(1.5L 1.6L)	4	136	50.6	22	25	25	3/8"
No.307		V8,S4,RS4	6(8)	154	57.6	21.005	20	21.3	3/8"
No.307f		RS4 V6	6	154	56.8	20	20.12	21.92	3/8"
No.307g		RS4 V6	6	154	56.8	20	20.12	21.92	5/16"
No.376		CC134	4	134	45	17	20	20	5/16"
No.97a		VR6	6	164	56.8	20	19.9	19.9	5/16"
No.97b		VR6	6	164	56.8	20	19.9	19.9	3/8"
No.200		VW-137A	4	137	53.9	22	22.89	22.89	3/8"
No.201		VW-137B	4	137	57.8	22	22.89	22.89	3/8"
No.204		VW-136C	4	136	50.6	24	25.68	25.68	3/8"
No.197		VW136		136	50.6	20.02	24.87	24.87	3/8"
No.198		VW-159 (G)	4	159	50.6	21	24.95	24.95	3/8"
No.199		CR-Audi-136B	5	136	49	20	24.87	24.87	3/8"
No.462		GOLF 144 AXE DE21	4	144	50.6	20	24.9`	23	3/8"
No.298		VW940	4	122	45	20	23.9	23.9	5/16"
No.316			4	144	53.7	26	24.95	12.9	5/16"
No.459		Golf 149mm	4	149	51.6	20	24.9	23	3/8"

Other models:
Offering racing connecting rod for VOLVO, OPEL, BMW, VW, TOYOTA, HONDA, FORD, PEUGEOT, NISSAN, FIAT, PORSCHE, MITSUBISHI, SUBARU, SUZUKI, KAWASAKI, RENAULT, FERRARI, YAMAHA, ALFA, TRIUMPH, LAND ROVER, MG, AUSTIN, HOLDEN, BENZ, MAZDA, CHRYSLER, NYTRO, FAIRE, BUICK, SIGMA, DAIHATSU, SPRIDGET, ETC.

Other parts:
Offering 40Cr connecting rod, 20Cr connecting rod, crankshaft, camshaft and so on.

Service
1) Offering sample, drawing & material analysis before producing;

2) Quality guarantee: three years;

3) Making logo upon customers' needs;

4) Changing any size upon customers' needs;

5) Developing new models according to samples or drawings;

Package & Shipping
1) Neutral packing, XYTOSAN packing or upon customers' needs;
4340 Racing Connecting Rod for Vw Vr6

2) Delivery time: about 35 days for producing;

3) By sea or air(TNT, DHL, FEDEX, UPS, etc.).
