4340 Racing Connecting Rod for PEUGEOT RDSX-1

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 27/ Piece
50.0	US $ 27/ Piece
500.0	US $ 26/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Mar 27, 2015 To Jun 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

PCS/Set:4

(Mm)C-C:139

B/E Bore:48.66

S/E Bore:18

B/E W:23.8

S/E W:20

Bolt:5/16"

Quality Guarantee:3 Years

MOQ:1PC If Have Stocks & 50PCS for Producing

Certification:ISO9001, Ts16949, ISO14001 and So on

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA and so on

Packing:Neutral, Xytosan or Upon Customers? Needs

Standard:OEM STD

Origin:Mainland of China

HS Code:8409919930

Production Capacity:About 3000000PCS /Year

Product Description

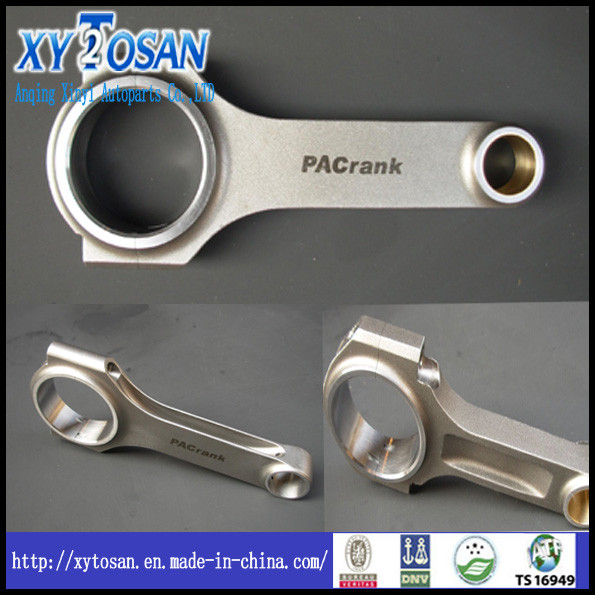

4340 racing connecting rod for PEUGEOT RDSX-1

PRODUCT DETAILS
1) Material: 4340 forged steel;

2) Beam: H beam & I beam;

3) Hardness: 600-1000hp;

4) Technical flowsheet of connecting rod production.

?	Roughcast testing whiling drawn into	?	Mill rod, Cover plane ,	?	Capitulum hole drilling ,and converse angle	?
	Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover ,stage	?
	Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
	Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
	Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
	Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
	Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
	Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
	Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory	?

STRONG CAPABILITY
1) Production: more than 300000pcs/month;

2) Certification: ISO9001, Ts16949, ISO14001, etc.;

3) We have ANGOLA branch;

4) Brand: XYTOSAN, GPM, PAGZD, GEO, KOSFA, etc.;

5) MOQ: 1pc if have stocks & 50pcs for producing.

PEUGEOT Racing Connecting Rod:

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.93a	Peugeot	RDSX-1 (137.75)	4	137.75	48.66	18	23.8	20	5/16"
No.93d		RDSX-1-A	4	137.75	48.66	18	23.8	20	3/8"
No.93b		RDSX-1	4	139	48.66	18	23.8	20	5/16"
No.93e		RDSX-1-A	4	139	48.66	18	23.8	20	3/8"
No.96		RD26-P	4	139	48.66	18	24.4	15	3/8"
No.94		RDSX-S	4	133.6	48.66	19.5	23.8	24	5/16"
No.94b		RDSX-S	4	133.6	48.66	19.5	23.8	24	3/8"
No.95		RDSX-S1	4	133.6	48.66	18	23.8	24	5/16"
No.95b		RDSX-S1-A	4	133.6	48.66	18	23.8	24	3/8"
No.95m		106 kit car	4	133.6	48.66	18	24	20	3/8"
No.95e		106 kit car	4	133.6	48.66	18	23.75	23.75	3/8"
No.95f		motor XU9	4	156.5	48	21	24.3	19	3/8"
No.95h		206 S16	4	139.3	48.66	22	24.18	21	3/8"
No.95i		106 16V	4	133.6	48.66	19.5	23.8	24	3/8"
No.343		Citroen	4	126.8	48.66	18	23.9	23.9	3/8"
No.177		PEU-158(4RS4)	4	158	53.7	20	24.2	22	3/8"
No.300		PEU-158(4RS4)	4	158	53.7	22	24.15	19.5	3/8"
No.300b		PEU-4RS4	4	158	53.7	20	24.15	19.5	3/8"
No.300c		PEU-4RS4	4	152	53.7	22	24.15	19.5	3/8"
No.416		Clio Maxi	4	150	48.655	18	24.9	19	3/8"
No.417		Saxo138.5mm	4	138.5	48.655	19.5	23.9	19	3/8"
No.446		03-01-G0009	4	133.5	48.655	19.463	24	20	3/8"
No.449		1.6v 143.15	4	143.15	48.655	22	22.5	22.5	3/8"
No.449b		1.6v 137.75mm	4	137.75	48.655	22	22.5	22.5	3/8"
No.449c		1.6v 133.5mm	4	133.5	48.655	22	22.5	22.5	3/8"
No.449d		1.6v 140.8mm	4	140.8	48.655	22	22.5	22.5	3/8"
No.449e		1.6v 122mm	4	112.3	48.67	18.03	23.95	23.95	3/8"
No.453		cc143.35mm	4	143.35	53.7	22.02	22.5	22.5	3/8"
No.463		PEUGEOT 206 rc 148	4	148	48.66	21	23.9	17	3/8"
No.466		Saxo-144	4	144	48.655	18	23.9	19	3/8"
No.481		PEC G0011	4	137.75	48.655	18	24	20	3/8"
No.505			4	162	48.65	18	24.3	19	3/8"
No.492		206RC CC145.45mm	4	145.45	48.655	18	23.9	17	3/8"

Other Models:
Offering racing connecting rod for VOLVO, OPEL, BMW, VW, TOYOTA, HONDA, FORD, PEUGEOT, NISSAN, FIAT, PORSCHE, MITSUBISHI, SUBARU, SUZUKI, KAWASAKI, RENAULT, FERRARI, YAMAHA, ALFA, TRIUMPH, LAND ROVER, MG, AUSTIN, HOLDEN, BENZ, MAZDA, CHRYSLER, NYTRO, FAIRE, BUICK, SIGMA, DAIHATSU, SPRIDGET, ETC.

Other Parts:
Offering 40Cr connecting rod, 20Cr connecting rod, crankshaft, camshaft and so on.

SERVICE
1) Offering sample, drawing & material analysis before producing;

2) Quality guarantee: three years;

3) Making logo upon customers' needs;

4) Changing any size upon customers' needs;

5) Developing new models according to samples or drawings.

PACKAGE & SHIPPING
1) Neutral packing, XYTOSAN packing or upon customers' needs;

2) Delivery time: about 35 days for producing;

3) By sea or air(TNT, DHL, FEDEX, UPS, etc.).

CONTACT US
ANQING XINYI AUTO PARTS CO.,LTD
WEB: WWW.OSVAT.CN
http://xytosan.en.made-in-china.com/
Contact: Seven Chen
TEL: +86-556-5171 008
FAX: +86-556-5171 000
Address: NO.80, TIANZHUSHAN ROAD, ANQING CITY, ANHUI PROVINCE, PRC.
