4340 Forged Steel Racing Connecting Rods for Toyota 2jz

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 26/ Piece
50.0	US $ 27/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Apr 21, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:for TOYOTA 2JZ

Material:4340 Forged Steel

Certification:ISO9001, Ts16949, ISO14001 and So on

Quality Guarantee:2 Years Within 60, 000km

Parts:Bearing+Pin+Con Rod

B/E Bore:142.00mm

C-C:55mm

S/E Bore:22cm

B/E W:26cm

S/E W:26cm

Bolt:3/8"

Export Markets:Global

Additional Info.

Trademark:XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA and so on

Packing:Neutral Packing, Xytosan Packing & Others

Standard:OEM STD

Origin:Mainland of China

HS Code:8409919990

Production Capacity:More Than 3000000PCS /Year

Product Description

PRODUCT DESCRIPTION

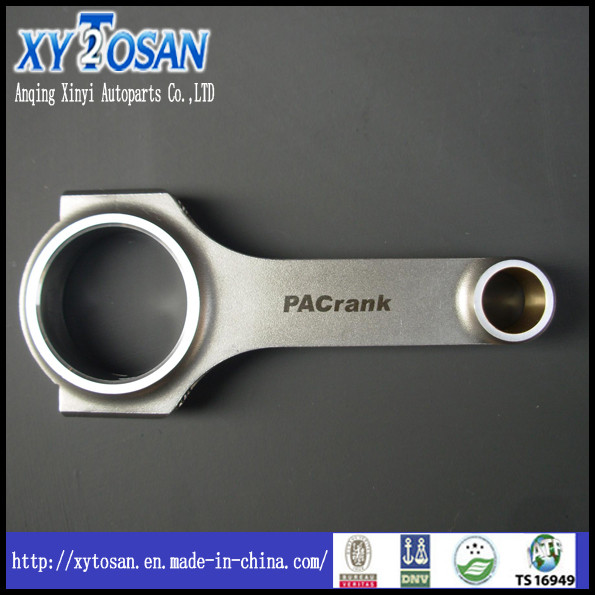

4340 forged steel racing connecting rods for TOYOTA 2JZ

Product Details:

1) Material: 4340 forged steel

2) Parts: bearing+pin+con rod

3)Application for: All Motorcycle engines

4) production capacity: 50,000 pieces/month

5) Warranty: 1-2 years/ 60,000-80,000 kms

6) Delivery Day: 1 -7 days if in stock or about 30 days for producing

CONNECTING ROD TECHNOLOGICAL PROCESS OF PRODUCTION

Roughcast testing whiling drawn into	?	Mill rod, Cover plane	?	Capitulum hole drilling and converse angle	?

Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover stage	?

Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?

Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?

Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?

Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?

Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?

Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?

Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory

SIZE EXPLANATION:

1. C-C(mm): center to center

2. B/E bore: big end bore

3. S/E bore: small end bore

4. B/E W: big end width

5. S/E W: small end width

6. bolt: bolt

Strong capability:

1) Production: more than 300000pcs/month;

2) Certification: ISO9001, Ts16949, ISO14001, etc.;

3) We have ANGOLA branch;

4) Brand: XYTOSAN, GPM, PAGZD, GEO, KOSFA, etc..

other racing connecting rods for Toyota:

ENGINE	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
2JZ	6	142.00	55	22	26	26	3/8"
134		134.00	45	18	21.8	21.8	5/16"
2JZ	6	142.00	55	22	26	22	3/8"
RDT-4A(4AG)	4	122	45	20	21.8	22	5/16"
1jz-4tg	4	125.2	55	22	25.9	25.9	3/8"
4AG	4	122.00	45	20	21.8	21.8	5/16"
4AG-2	4	122	45	20.005	21.8	21.8	5/16"
4AG-3	4	122	45	20	21.8	21.8	3/8"
CRT-1(4E-FTE)	4	118	43	18	20.8	20.8	5/16"
Starlet	4	118	43	18	20.8	20.8	5/16"
Small rod	4	140.9	43	18	17.92	17.92	5/16"
3TC	4	123	51	22	26.8	24	5/16"
2TG	4	123	51	22	26.8	20.8	5/16"
2TG	4	130.5	46	18	26.8	20.8	5/16"
5E	4	130.5	46	18	20.8	20.8	3/8"
5E	4	130.5	46	18	20.8	20.8	5/16"
4E	4	118	43	18	20.8	20.8	5/16"
3SG	4	138.00	51	22	26.75	23.5	3/8"
3SG	4	138.00	51	22	24.032	26.92	3/8"
3SG-I	4	138.00	51	22	26.75	23.5	3/8"
Supra 7MGTE 152	6	152	55	22	24.8	24.8	3/8"
Supra	6	152	51	22	24.8	24.8	3/8"
CC154mm(4.5L)	6	154	60.6	26	27.77	27.77	7/16"
CC148.5mm(4.5L)	6	148.5	60.6	26	27.77	27.77	7/16"
CC146.7	4	146.7	47	20	19.8	19.8	5/16"
Celica 2.0L	4	122.5	51.6	21	23.8	24	3/8"

Other models:
HONDA,SUZUKI,EMARK,GASTOR,MITSUBISHI,JENN FENG,KAWASAKI,KOMATSN-ZENOAH,ROBIN,HUSQVARNA,STIHL,OMC,SEA-DOO,APRILIA,BETA,GAGIVA,DERBI,GILERA,JL,KYMCO,LAMBRETTA,MBK,MILAGUTI,MONTESA,PEUGEOT,RIJU-MINARELLI,SACHS,TOMOS,VESPA,VESPA-PIAGGIO,ZUNDAPP,HUSQVARNA,KTM,POLARIS,ETC.

CONNECTING RODS:
We also offering racing connecting rod for VOLVO, OPEL, BMW, VW, TOYOTA, HONDA, FORD, PEUGEOT, NISSAN, FIAT, PORSCHE, MITSUBISHI, SUBARU, SUZUKI, KAWASAKI, RENAULT, FERRARI, YAMAHA, ALFA, TRIUMPH, LAND ROVER, MG, AUSTIN, HOLDEN, BENZ, MAZDA, CHRYSLER, NYTRO, FAIRE, BUICK, SIGMA, DAIHATSU, SPRIDGET, ETC.

Other parts:
Offering 40Cr connecting rod, 20Cr connecting rod, crankshaft, camshaft and so on.

Service:

1) Offering sample, drawing & material analysis before producing;

2) Quality guarantee: three years;

3) Making logo upon customers' needs;

4) Changing any size upon customers' needs;

5) Developing new models according to samples or drawings;

Package & Shipping:

1) Neutral packing, XYTOSAN packing or upon customers' needs;

2) Delivery time: about 35 days for producing;

3) By sea or air(TNT, DHL, FEDEX, UPS, etc.).
