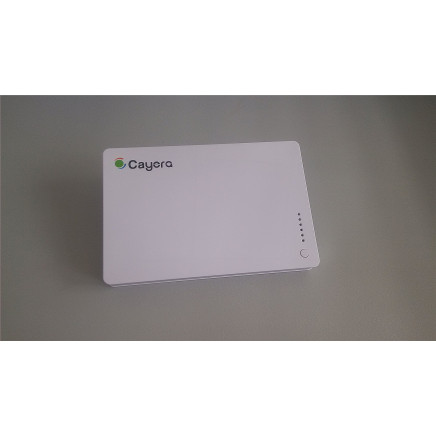

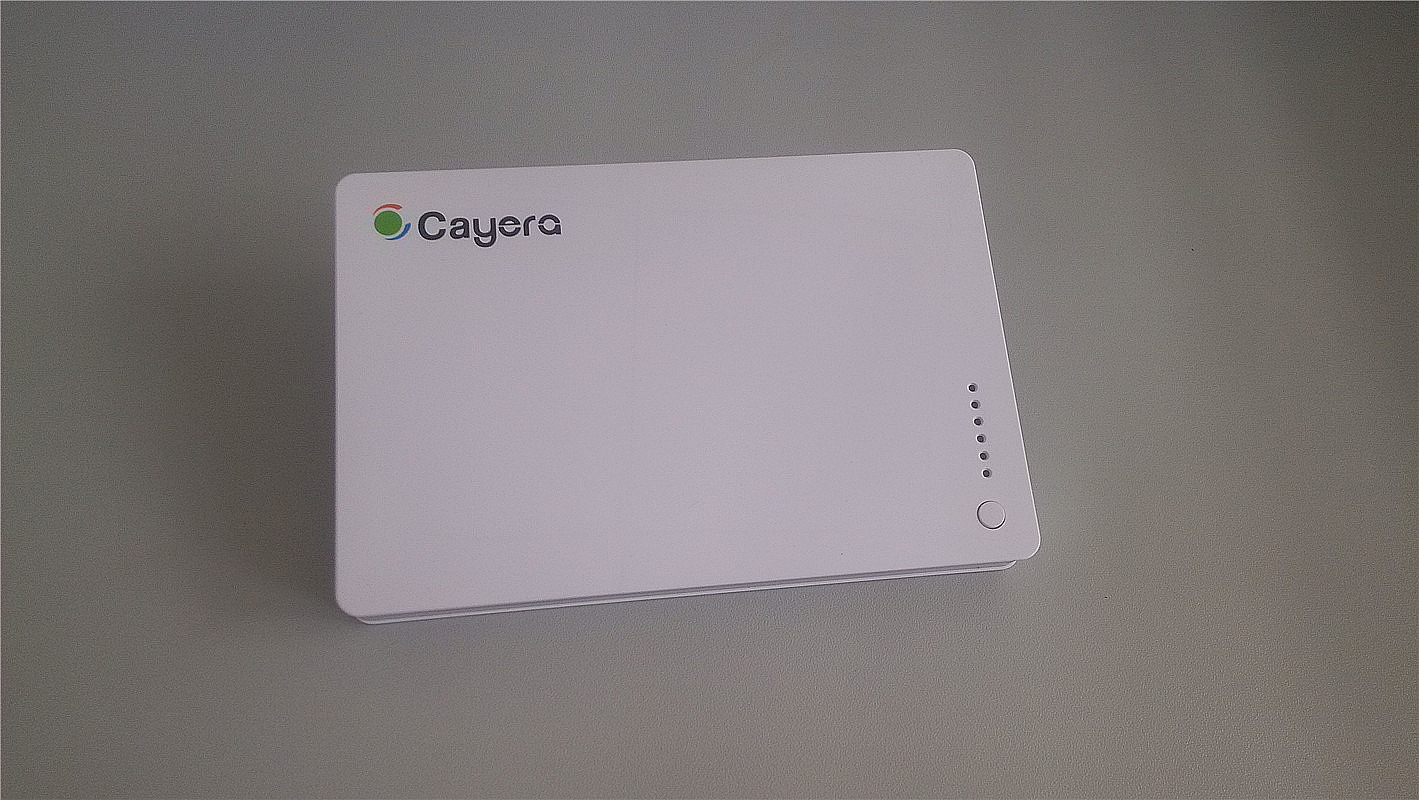

433MHz Wireless GSM SMS Command Control Alarm Report Push Intruder Alarm System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:200 Pieces

Trade Terms:FOB

Payment Terms:T/T

Trademark:Cayera

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AM-F1

Type:Anti-Theft Alarm

Signal Transmission:Wireless Alarm

Working Mode:Passive

Certification:SGS, CE, ISO, FCC, RoHS

Application:Indoor

Sensor Type:Infrared Alarm System

Working Principle:Electro-Optical Type

Transmission Mode:Wireless

Alarm Volume (within 1m):?80dB

Receive Frequency:433MHz

Usage:Door, Personal, Auto, Window, Fire, Smoke

GSM Frequency:900/1800/850/1900MHz

Power Requirements:AC 220V 50Hz/60Hz

Working Consumption:0.6W

Backup Battery Working Hours:More Than10 Hours

Record Voice:10s

Export Markets:Global

Additional Info.

Trademark:Cayera

Standard:CE, FCC, ROHS

Origin:Shenzhen, China

Production Capacity:50000 PCS/Year

Product Description

Features:

1. When alarm host can automatically send has set up three groups of mobile phone Short message alarm
2.   Operation on the host, realize human voice prompt
3.   Configurable two-way intercom function
4.   Learning sensors to alarm host, very easy operation
5.   Send SMS text to 3 mobile phones and auto-dial 3 phones to inform the user
6.   Each wireless zone can use countless wireless sensors
7.   Use SMS to change the zone name & content
8.   Real-time report the alarm zone remotely by SMS and voice reminding

Specification

GSM frequency	900/1800/850/1900MHz
Wireless frequency	315MHz/433MHz for optional
Alarm response time	8s (GSM signal in normal)
Power requirements	AC 220V 50Hz/60Hz
Power supply	12V 1A
Working consumption	0.6W
Backup battery	DC7.4V/850MA, lithium battery
Backup battery working hours:	More than10 hours
Working condition:	Work temperature:-20 ºC~+60ºC , humidity:less than95% (non-condensation)
Size	150mm(L)100mm(W)16mm(H)
Record time	10s
weight	0.2kg
Remote control the system	Arm
	Disarm
	Monitor
	Talking(External)
	Play records
Basic Functions	LED Display Arm/Disarm/Stay arm/Alarm/Setting
	Default language:English; French, Spanish and Russian extra
	Password protection function
	Operating the host by SMS and Phone
	External power on and off SMS notification
	Reset factory setting
