42m3 Liquid Tank Semi-Trailer/Fuel Tank/Oil Tank/Water Tank (WL9402GHY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20160.0-21160.0/ Piece

Price:$20160.0 - $21160.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Apr 11, 2015 To Jul 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9402GHY

Load Capacity:28t

Certification:ISO9001, CCC, ISO/TS16949

Wheel Base:6000+1310

Tread:1310

Grade:11450

Towing Pin Type:90#,Assembled

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Carbon Steel

Style:Liquid Tank

Export Markets:Global

Additional Info.

Origin:China

Production Capacity:5000 Units Per Year

Product Description

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 20, 000 units per year.

Please contact us to know more.

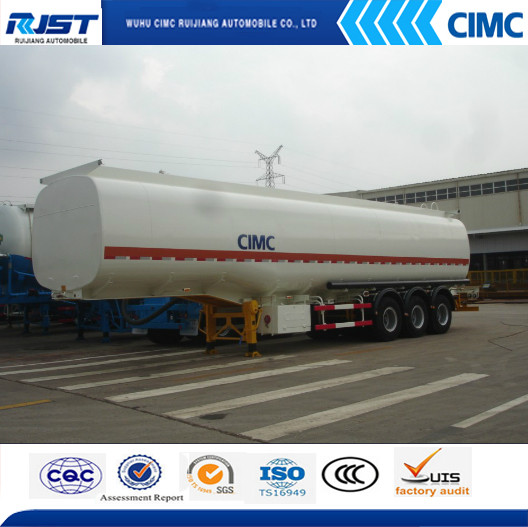

42m3 Liquid Tank Semi-trailer with Three Axles
Parameter	Dimension(mm)	1150025003750
	Axle Space(mm)	6000+1310+1310
	Tare Weight(kg)	11450
	Loading Capacity(kg)	28000
	Tank Thickness	5.5mm
	Bulkhead Thickness	5.5mm
	Baffle Thickness	4mm
OEM	Tyre	12R22.5-16PR
	Rim	9.0-22.5
	Landing Gear	single operation
	King Pin	90#,assembled
	Axle	13T RJST
	Suspension	mechanical suspension
	Emergency Valve	one 3''stainless steel
	Ball Valve	one 3''carbon steel
	ABS	4S/2M
Others	Fire Extinguisher	2 units
	Tool Box	1 unit,0.8m
	Spare Tyre Carrier	2 units
