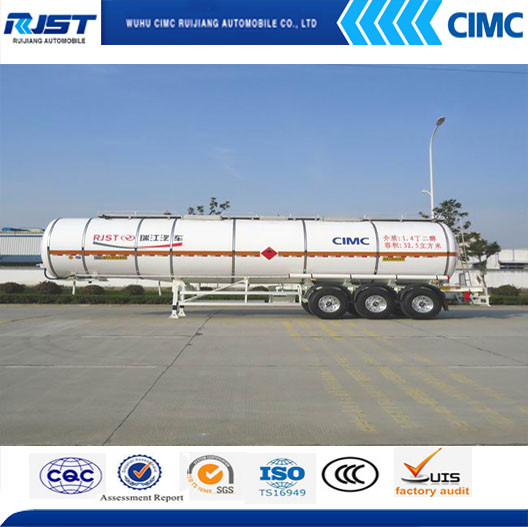

42m3 3 Axles Flammable Liquid Tank Semi-Trailer/Fuel Tank Semi-Trailer (WL9400GHY)

More Views

42m3 3 Axles Flammable Liquid Tank Semi-Trailer/Fuel Tank Semi-Trailer (WL9400GHY)

Be the first to review this product

More than 10 available

Availability: In stock

Price:$25800.0 - $31500.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 25800/ Piece
5.0	US $ 31500/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From May 22, 2015 To Aug 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9400GHY

Type:Semi-Trailer

Certification:ISO9001, CCC, ISO/TS16949

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Carbon Steel

Condition:New

Size:42m3

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:in Nude

Standard:ISO9001/Ts16949

Origin:China

Production Capacity:10000 Units/Year

Product Description

Fuel Tanker with Steyr King Truck Chassis Specification: (Fuel tank, Oil Tank)
Material: Carbon stainless steel.
Suspension: Steel and air bag suspension.
Axle: 2 or 3 axles.
Able to be transported in container.

Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 30, 000 units per year.

Please don't hesitate to contact us to know more.

42M3 3 axles Flammable liquid tank semi-trailer
PARAMETER	Dimension(LWH:)	12900×2500×3990mm
	Body dimension	12650×2260×2410mm
	King pin setting	1480mm
	Axle space	6850+1310+1310mm
	Tare weight	9800 kg
	Loading capacity	44210L (Valid 42000L)
OEM	Landing gear	BAOHUA
	Kingpin	BAOHUA/JOST
	Brake system	China famous brand or Wabco brake valve
	ABS	4S/2M
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	Mechanical suspension leaf spring or air suspension
	Axle	Fuwa axle, 13 ton capacity/set, 3sets
	Tire	12R22.5 12PR, 12 pcs JinGuan
	Wheel Rim	8.0-22.5 8 PCS
	Tool box	1
	Spare tire carrier	2
TANK SPECS	Compartment	one is standard,according to customers
	Tank material	Stainless steel/Carbon steel
	Bulkhead and Bafflr	Thickness is 5mm
	Tank Shell	Thickness is 4mm
	Shape of tank	Square shape or Circular shape
	Discharge pipe	3"Stainless steel seamless tube
	bottom valves	Equipped
OTHERS	Oil Gas recovery System	Equiipped
	Roof walkway units	carbon steel punching
	Fire extinguisher	2 pieces of 8 kilograms of fire extinguishers
	Anti-overflow System	Equipped
