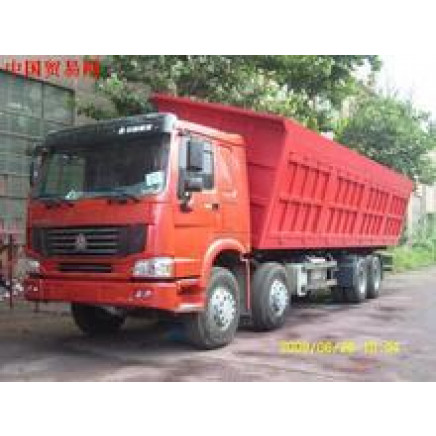

420HP Sinotruk HOWO 8*4 Dump Truck/Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 42000.0-52000.0/ Piece

Price:$42000.0 - $52000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, CIP, CPT, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Oct 24, 2014 To Jan 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Transmission Type:Manual

Power:Diesel

Load Capacity:40 Ton

Emission Standard:Euro 2

Drive Wheel:4WD

Engine Capacity:6-8L

Seats:?5

Horsepower:351-450hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Tipper

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:8*4

Origin:China

Production Capacity:2000

Product Description

Cabin Driving type 8x4 LHD/ RHD
HOWO 76 standard cab, with one bed and A/C, 70° Hydraulically tillable to the front as attached photo for ref.
Vehicle Main DimensionsOverall dimensions (L x W x H)mm10245× 2496× 3380
Wheel base (mm)1800+3500+1350
Wheel track (front/rear) (mm)2020/1800
Approach/Departure angle(° )20/22
Weight in KGSTare Weight15000
Payload35000
Front axles loading capacity2x9000
Rear axles loading capacity2x16000
Max. Driving speed(km/h)80
Engine BrandSinotruk
ModelWD615.47
Type4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)371 @2200 rpm
Emission standardEuro II
GearboxHW19710, 10 Forwards gear & 2 reverse gear
ClutchReinforced diaphragm clutch, diameter 430mm
Steering GearZF 8098, power steering, hydraulic steering with power assistance
Fuel tank (L)400
Tire 12.00R20 All Steel Radial Tyre, 22 ply.
Brakes Service brake: Dual circuit compressed air brake
Parking brake: (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Tipper Body7300*2300*1400 mm, 23.5 cbm, side: 8 mm, bottom: 10 mm
Hydraulic systemHYVA cylinder, front lift

Truck Model			ZZ3317M3067W
Dimension(Lx W xH) ( unloaded )( mm )			94452496 3190
Cargo body size (LxWxH) (mm)			650023001500mm, Front lift, Bottom 12 mm, Side 8 mm, HYVA 172 (Netherland technology)
Approaching angle/Departure angle ( ° )			19/26
Overhang(front/rear) (mm)			1500/1795
Wheel base (mm)			1800+3000+1350
Max speed ( km/h )			75
Curb weight ( kg )			14700
Loading Weight ( kg )			31000
Engine (Steyr technology, made in China)	Model		WD615.62 , water-cooled , four strokes , 6 cylinders in line with water cooling , turbocharged and intercooling, directly injection
	Fuel type		Diesel
	HorsePower, max ( kw/rpm )		266HP
	Emission		EURO II
Fuel tanker capacity ( L )			300
Transmission		Model	HW15710
Brake system		Service brake	Dual circuit compressed air brake
		Parking brake	spring energy, compressed air operating on rear wheels
Steering system		Model	ZF8098
Front axle		HF9
Rear axle		HC16
Tyre		12.00R20
Electrical system		Battery		2X12V/165Ah
		Alternator		28V-1500kw
		Starter		7.5Kw/24V
Cab		HOWO76, left-hand driving, long cab, single-sleeper, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
