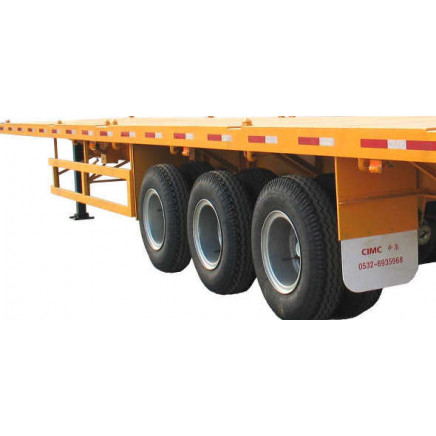

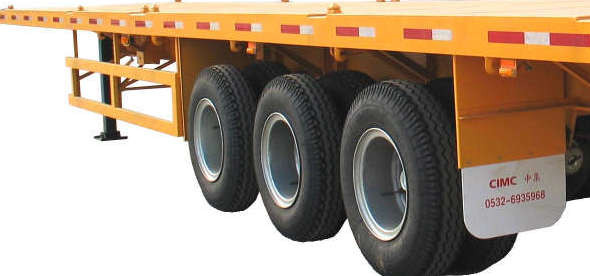

40ft Container Trailer, 3 Axle Container Trailer, Flatbed Container Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000/ Piece

Price:US $30000.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 24, 2012 To Jun 25, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Semi-Trailer

Certification:ISO

Material:Steel

Scale:Medium Duty

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Production Capacity:2000

Product Description

Axle 2-axle 13ton FUWA
Or CIMC Brand
Outrigger JOST/EAGLE-Z20 Or Holland / FW
Gross weight (kg) 35000
Tare weight (kg) 4520
Payload (kg) 30480
External dimension (L*W*H) mm 12355x2490x1480

Wheel base(mm) 7900x1310
Track space(mm) /1830
Tires 11.00R20-16PR Rim:8.0R20
No of tire 8
No of lock 12
Leaf spring 7/7, 8/8
The rear axle location(mm) 1957
King pin location(mm) 1170
Leave angle(°) 15
The fifth wheel load(kg) 17010
BRAKE SYSTEM: ABS SYSTEM Can be optional
Public notice 109
Trail pin 2" (3.5" canbe optioned)
ACCESSORIES TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER
TWO SPARE WHEEL HOLDER(WINCH), BUT NO SPARE TYRES AND WHEELS;

40' TRI AXLE FLATBED SEMI TRAILER STANDARD MODEL
FOB CHINA(QINGDAO):$12600.00
Length	12250mm
Width	2490mm
Height	1490mm
Pay load	30-48 tons
Dead weight	approx.8500kgs
RUNNING GEAR
Suspension	doll type
Subframe	12 locking pin design suit for 2 x 20ft,1 x 40ft container,center1x 20 ft
Drums
Hubs
Wheels	double-wheels
Tires	11.00R20 16PR
Axles	FUWA 13-TON
Brakes	drum brake system
ABS System	be optional
Valve	WABCO relay emergency valve
Brake Chambers	dual air brake system,2X40L air pressure tanks:
Springs	leaf spring 12/12/12-piece
UNDERFRAME
Main Beam	470mm deep X 6mm webweld “I”sectionmain beam,the thicknessof top flange is 14mm the bottom flange is 16mm
Cross beam	10#"U"shape, Mild Alloy ,Q235mpa
King pin	50mm BAOHUA brand
Landing Gear	JOST D200T 28ton
Mud Flaps	6sets
Bumper	1 set per side
Floor	3mm
Appendix	1tool box
	2 Spare tyre carriers without trye
ELECTRICAL & PAINT
Lights & Reflectors	(ALL LED)Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector,
	24V 7 pin plug socket
Paint	sand blasting before painting
	2 coat of anticorrosive primer
	2 coats of finish urethane paint
	Color as per request

FOB .CHINA		$12600.00 Qingdao,China	MOQ.10
SHIPMENT		By container
Payment:		30% deposit by T.T,70% blance before shipment
Delivery:		Due to order quantity
Offer valid period:		2010.10.1--2010.12.31
