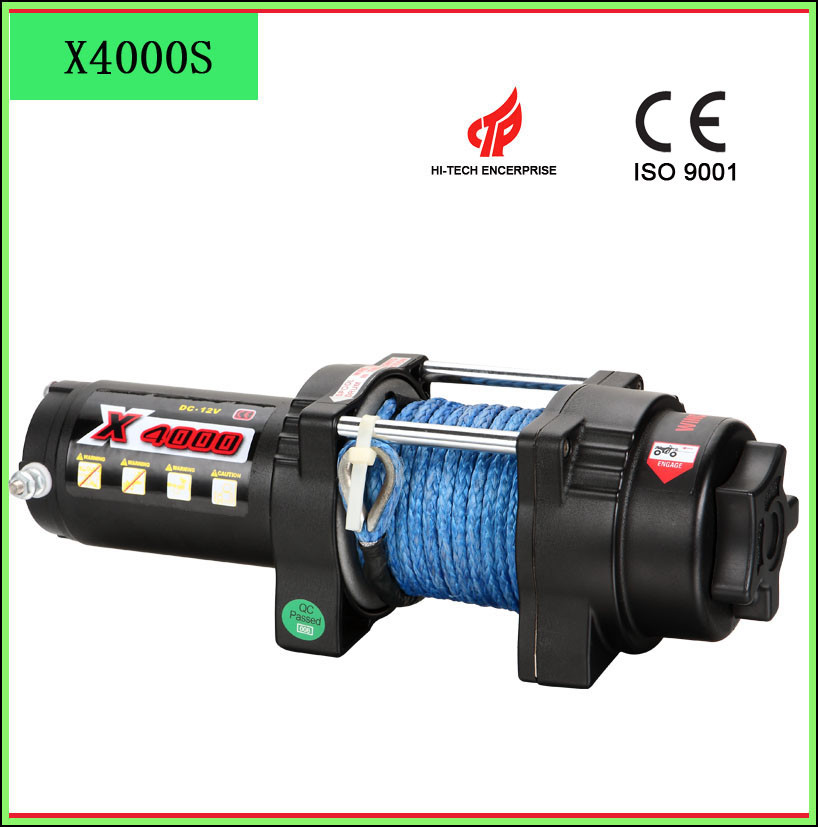

4000lbs Electric Winch for ATV

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 68.0-78.0/ Piece

Price:$68.0 - $78.0 / Piece

Trade Terms: FOB, CFR, CIF, CIP, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Nov 15, 2014 To Feb 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X4000S

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Snow

Certification:GS, CE, RoHS

Rated Line Pull:4000lbs

Packing Size:440mmx250mmx220mm

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:1 Piece Per Carton

Standard:CE, RoHs, GS, ISO9001

Origin:China

HS Code:84253190

Production Capacity:100000

Product Description

Specifications
Rated line pull: 4000lbs(1818kgs) single line
Motor: Permanent Magnetic motor (1.6hp)/1.2kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 6.3mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 348mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 19LBS(8.6KGS)
Packing: 440mmX250mmX220mm(per carton)
1000pcs per 20' container
