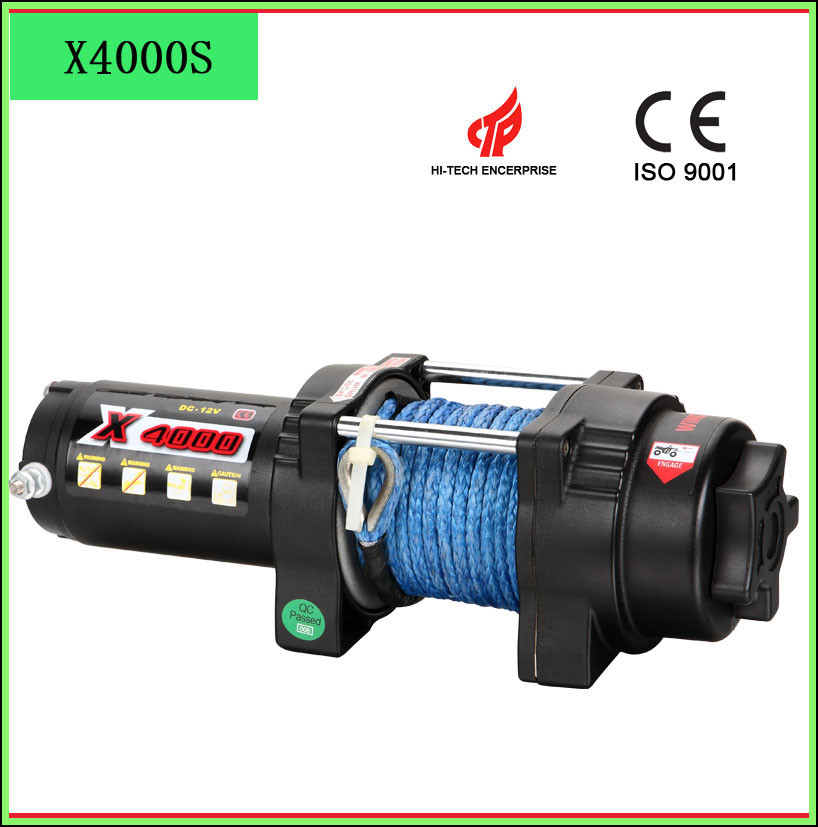

4000lbs ATV Winch with Synthetic Rope

4000lbs ATV Winch with Synthetic Rope

More Views

4000lbs ATV Winch with Synthetic Rope

Be the first to review this product

More than 10 available

Availability: In stock

Price:$68.0 - $80.0 / Piece
Min. Order (Pieces) Unit Price
50.0 US $ 68.0-80.0/ Piece
Trade Terms: FOB, CFR, CIF
Payment Terms: L/C, T/T, Paypal
Price Valid Time:From May 30, 2015 To Jul 09, 2015
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
4000lbs ATV Winch with Synthetic Rope

Also available at

Login or Signup to View Links.
Description

Details

Basic Info.

Model NO.:X4000S
Type:Electric Winch
Power Type:Permanent-magnet DC
Pull Direction:Forward
Electric Winch Model:ATV
Working Voltage of Electric Winch:Low Voltage
Brand:Zhme
Applicable Environment:ATV
Certification:GS, CE
Item:X4000s
Rated Line Pull:4000lbs(1818kgs) Single Line
Motor:Permanent Magnetic Motor 1.6HP/1.2kw, 12V DC
Gear Train:3 Stage Planetary Gear 198:1
Dimensions:348mm X 114mm X 120mm
N.W.:8.6kg
Export Markets:Global

Additional Info.

Trademark:ZHME
Packing:Color Box
Standard:CE, SGS, ISO9001: 2008
Origin:Zhejiang, Ningbo
HS Code:84253190
Production Capacity:China

Product Description

Motor: High performance permanent magnetic motor, provides fast line speed.
Contactor: 200 Amp Rated contactor, 12V DC.
Gear Box: Reducednoise, waterproof, and dependable. 3 stage planetary gear of 20CrMnTi, hardened gears for long life, a solid power multiplier.
Brake: Fully independent and automatic braking ensures safety and reliability.
Waterproof: Seals for motor and gear box, o-ring for gear box, Cold drawn steel tube, high strength could protect wire rope well and no damage when braking.
Specifications
ItemX4000S
Rated Line Pull4000lbs(1818kgs) single line
Motor Permanent magnetic motor 1.6hp/1.2kw, 12V DC
Gear Train3 stage planetary gear
Gear Ratio 198:1
Braking ActionAutomatic in the drum
FairleadAluminum Hawse Fairlead
RopeSynthetic Rope 6.3mm x 12m
Drum size50mm x 76.5mm
Dimensions348mm x 114mm x 120mm
Mounting Bolt Pattern124mm×76mm
N.W.8.6kg
