4000lbs ATV Waterproof Rescue Small Winch with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 68/ Piece

Price:US $68.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 11, 2015 To Sep 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:X4000S

Type:Electric Winch

Power Type:Permanent-magnet DC

Pull Direction:Forward

Electric Winch Model:ATV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:ATV

Certification:GS, CE

Product Name:Electric ATV Winch

Rated Line Pull:4000lbs

Motor:Winch Motor 1.6HP/1.2kw, 12V DC

Gear Train:3 Stage Planetary Gear 198:1

Rope:Winch Synthetic Rope 6.3mm X 12m

Certificate:CE, SGS

Waterproof:IP68

Dimensions:348mm X 114mm X 120mm

N.W.:10kg

MOQ:50 Winches

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Color Box

Standard:CE, SGS, ISO9001: 2008

Origin:Zhejiang, Ningbo

HS Code:84253190

Production Capacity:China

Product Description

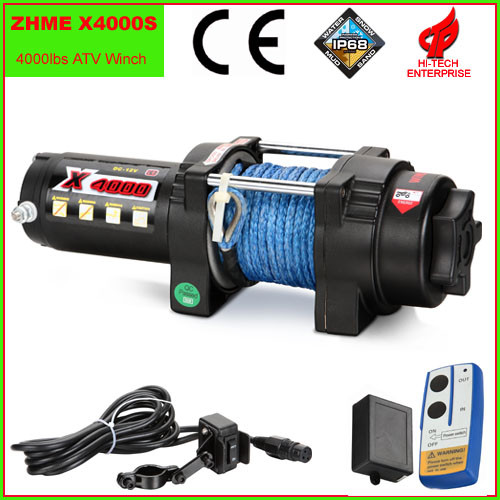

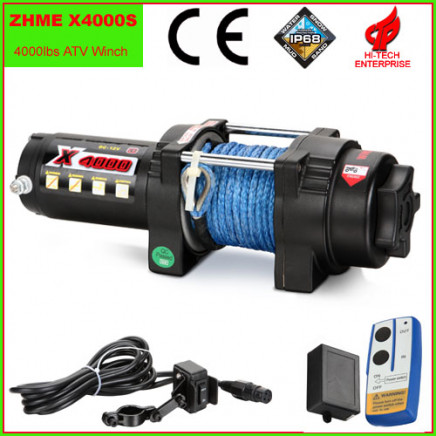

4000lbs ATV waterproof rescue small winch with synthetic rope

Advantage:
1. Motor: High performance motor provides fast line speed.
2. Contactor: High efficiency 200 Amp Rated contactor.
3. Gear Box: Waterproof IP68, low noise, steady work.
4. Brake: Independent and automatic, safety and reliability.
5. Waterproof: IP68.

Specifications:

Specifications
Item	X4000S
Rated Line Pull	4000lbs(1818kgs) single line
Motor	Permanent magnetic motor 1.6hp/1.2kw, 12V DC
Gear Train	3 stage planetary gear
Gear Ratio	198:1
Braking Action	Automatic in the drum
Fairlead	Aluminum Hawse Fairlead
Rope	Synthetic Rope 6.3mm x 12m
Drum size	50mm x 76.5mm
Dimensions	348mm x 114mm x 120mm
Mounting Bolt Pattern	124mm×76mm
N.W.	8.6kg
