4000 Series 55 Inch LCD Video Wall Display

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:EXW

Payment Terms:T/T, Western Union

Trademark:Toyani/OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:4055-LSNB

Screen Size:55"

Application:Surveillance

Aspect ratio:16:9

Feature:LED Backlight Display

Type:TFT

Interface Type:HDMI, VGA, S-Video, Ypb/Pr, AV

Brightness:450nits

Full HD Resolution:1920x1080p

Display Mode:Single and Full Screen Display;Mxn Display

Seam:5.5mm

Panel Type:Samsung Did Industry AA Panel

Advantage 1st.:DVI Digital Signal Transmission

Advantage 2ND.:Embedded Imaging Processor Design

Control Ways:IR Remote Controller, RS232 of Software

Export Markets:Global

Additional Info.

Trademark:Toyani/OEM

Packing:Ply-Wooden Case Outside and A7 Carton Inside

Standard:CE, FCC

Origin:Shenzhen, China

HS Code:8529908100

Production Capacity:1000PCS/Week

Product Description

Features:
1. LED Backlight (450nits or 450nits)
2. Full HD Resolution.
3. Embedded and external imaging processor design for options.
4. With Built-in digital matrix for signal splicing.
5. DVI digital signal output transmission.
6. Application: Surveillance command system, video conferencing system, advertising industry.

Products overview
The LCD screen adopts original Samsung industrial grade panel (DID panel, digital information display) for image processing, with high brightness up to 700CD, 3000: 1 contrast ratio and 97% color saturation. Having top image quality with high brightness and solution, wide color saturation, uniform brightness, Further more, coupled with PVA (Patterned Vertical Alignment) technology, its viewing angle goes up to 180° In horizontal and vertical direction. With 120Hz fresh frequency, the DID splicing display wall can effectively solve the smearing and fuzzy in image during moving process. And upgrades displaying effect through enhancing image clarity and contrast ratio. Completely reliving eye fatigue regardless of long time watching.

Full HD DID LCD screen with built-in FPGA hardware control system which works smoothly and with package function. Equipped with composite video, Ypb/Pr, S-VIDEO, VGA, HDMI, TV and AV port. Full HD 1920X1080P is supported. DID LCD screen is an integrated entity, free of external accessories. Easy for transportation and operation like building blocks. Any quantity LCD screens can be combined as per your needs. Such as 2× 2, 4× 4, 2 × 4, ...M× N.

Application:

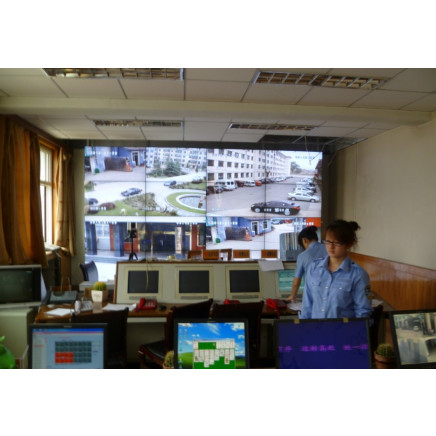

LCD splicing display wall is widely used in surveillance command system, video conferencing system, advertising industry and news press. Ect
Applicative for 4000 series.

Parameter	Model: 4055-SNB
Screen Diagonal	55"
Size(WxHxD)mm	1215.3x686.1x120.4
Screen resolution	1920x1080P
Active display(HxV)	1209.6X680.4
Color Saturation	97%
Brightness	450nits
Contrast	3500: 1
Back light	LED
Refresh Frequency	60HZ
Display Color	16.7M(8-bit)
View Angle	178°
Seam	5.5mm(gap between two screens)
Input Interface	HDMI, AV, YPr/Pb, S-VIDEO, VGA
Signal Format	NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P
Control Interface	RS232 and IR remote controller
Image Processing Technique	An original creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen. De-interlacing Technique will eliminate flash. Dynamic value compensate, 3D dynamic digital reduce sound, 3D pectination filtration, 10 digital brightness and increase color, image frame can select compensate and cover, full high definition signal real time processing
Matrix Configuration	Built-in digital matrix, need external matrix if signal Qty. more than screen Qty.
Work Temperature	0-50°
Work Humidity	15-75%
Power Supply.	AC220V-AC240V
Average Power	160W
Net weight	38KG
Install way	Wall hanging, Floor stand, Cabinet
Recommend Use Location	Security, control center, entertainment places, advertising, meeting center any indoor place you like.
Display Function Summarize	Manual/Timing/Cruise/Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection. Single screen display; Full screens display; Any combination of screens display.
Free accessories included: DIV cables, RS232 cables, AC power cables, IR remote, IR receiver, Controlling software DC, screws for installing bracket and display, user manual.
