40 M3 4 Compartment Fuel Tank Semi Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

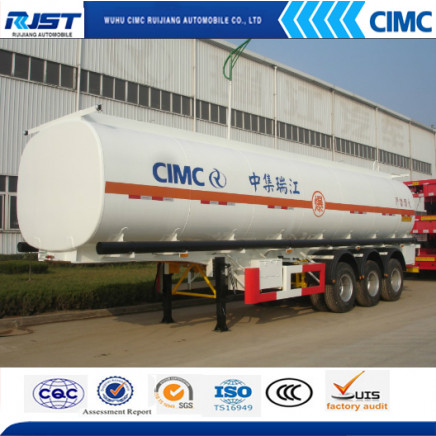

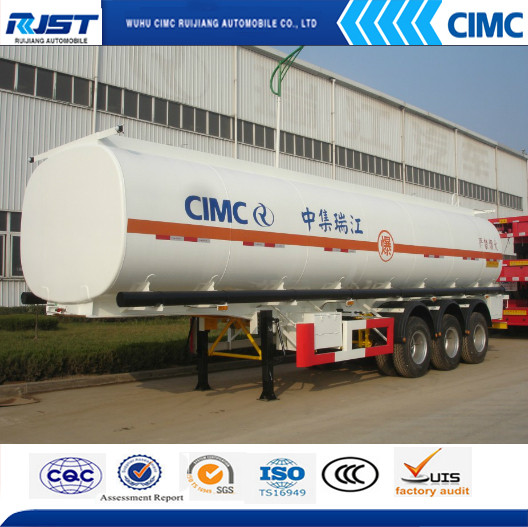

40 M3 4 Compartment Fuel Tank Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000.0-25000.0/ Piece

Price:$20000.0 - $25000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, DAP, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 23, 2015 To Sep 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9404YY

Type:Suspension

Load Capacity:50T

Certification:ISO9001, CCC, ISO/TS16949

Towing Pin Material:Carbon Steel

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

Material:Steel

Condition:New

Volume:40m3

Export Markets:Global

Additional Info.

Trademark:CIMC RUIJIANG

Packing:in Nude or in Containers

Standard:According to Customers? Needs

Origin:China

Production Capacity:2000PCS/Year

Product Description

Overall Dimension:11500*2500*3950mm
Axle Space:6000+1310+1310mm
Tare Weight:11800kg
Payload:30000kg
G.V.W.R:41800KG

PARAMETER	Dimension(mm)	LWH: 11500X2500X3950(MM)
	Axle space(mm)	6000mm+1310mm+1310mm
	Tare weight(kg)	11800KGS
	Payload (kg)	30000KGS
	G. V. W. R.	41800KGS
OEM	Landing gear	Two speed manual operation type with sand shoe, JOST brand
	Kingpin	2" Bolted type, JOST brand
	Brake system	Dual line pneumatic brake system made in china
	Brake chamber	Type 30/30 spring brake chamber
	ABS	4S/2M
	Suspension	Air suspension
	Axle	BPW axle, 13 ton capacity/set, 3pcs
	Tire	385/65R22.5, 7Pcs, DOUBLE COIN brand
	Rim	11.75-22.5, 7Pcs
	Spare tire carrier	2 Units
	Tank material	Carbon steel, thickness 6mm.
	Bulkhead thickness	6mm
	Baffle thickness	4mm
	Shape of tank	Ellipse (double " D" ).
	Manhole	4 units
	Compartment	4 units
	Steel ladder	Mounted in the rear
OTHERS	Painting	As customer' s request

1. Why you choose us?

CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.

2. How to trust us?

Following the business philosophy of our company which is"your partner for modern transportation",the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.

3. How about the delivery time?

Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.

4.How do you ensure the quality of product?

Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
