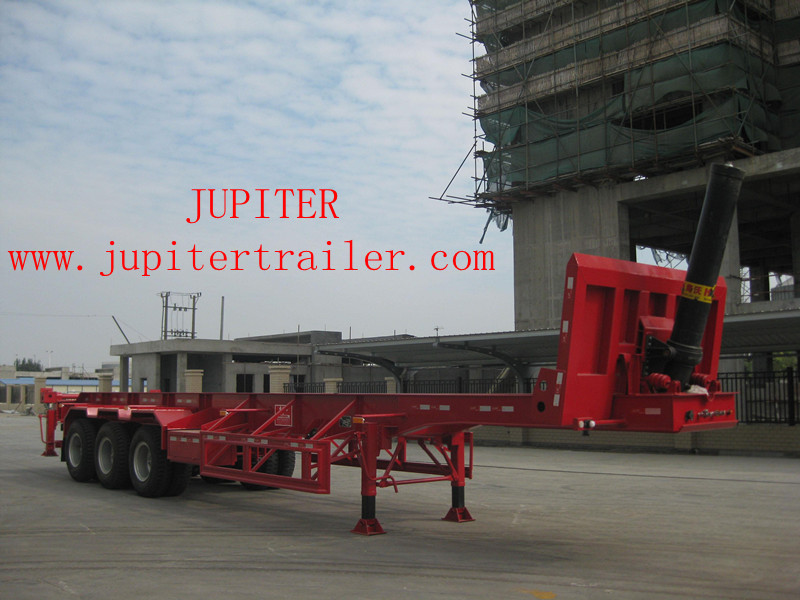

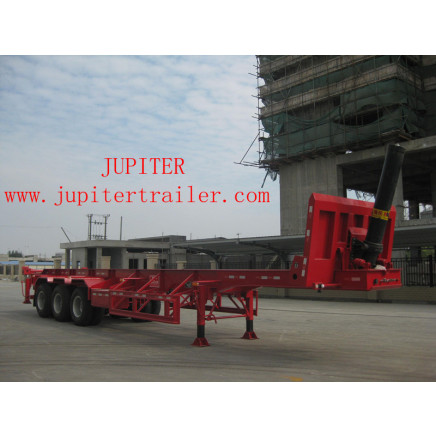

Specification |
|
Tear Weight |
6200Kg |
Payload |
40,000 Kg |
Total weight |
46200Kg |
Overall Length |
12355mm |
Overall width |
2490mm |
Overall height |
1480mm |
Wheel track |
1830mm |
Wheelbase |
7900mm +1310mm |
Standard Specifications
Trailer frame structure |
Heavy duty extra & extra durability designed opting for high tensile steel
Q345 welded by automated submerged MIG or ARC process
MAIN I BEAM: Height 500mm
Top flange width 146mm and its thickness 14mm Middle flange thickness 8mm Bottom flange width 140mm and its thickness 16mm high tensile steel Q345
SIDE BEAM: "C " CHANNEL Height 180mm x width 68mm x thickness 7mm , high tensile steel Q235
TRAILER FRONT SIDE CHANNEL:
Height 180mm x width 68mm x thickness7mm , high tensile steel Q235 TRAILER REAR SIDE CHANNEL:
Height 250mm x width 78mm x thickness7mm , high tensile steel Q235 CROSS MEMBER: "C" CHANNELS Height 100mm x width 37mm x thickness 3mm high tensile steel Q235 No. of pcs used in one trailer: 17
cross member at the locks :Height 160mm x width 63mm x thickness 6.5mm,
high tensile steel Q235 No. of pcs used in one trailer: 6 |
Floor |
Chequered steel sheet 3mm thickness. |
Axles |
2 units of BPW 14 ton axle. BPW Meizhou Axle Co Ltd, Xietian Chengdong
Town, Meixian Meizhou, Guangdong China |
Suspension |
Mechanical Tandem 2 axles suspension BAOHUA with equalizer with 10
leafs. |
Leaf spring |
10 leaves springs, 16mm x 90mm or 13x90mm |
Kingpin |
1 unit of 2 inch SAE standard welded and Bolt on. JOST(China) Auto
Component Co. Ltd, 888 Hanyuang Road Wuhan China |
Landing gear |
Two -speed, manual operating, heavy duty landing gear JOST, lifting capacity
is 28Ton & static capacity is 72ton dead load. JOST (Shanghai) Auto
Component Co. Ltd or FUWA Landing gear,it's lifting capacity is
28Ton ,& static capacity is 72ton dead load. |
Wheel rim |
9 units size 9.0x22.5 Rim for tubeless tyres Zhengxing brand |
Tyre |
9 units of 315/80 R22.5 tyre, Linglong or Hantai brand |
Twist lock |
12 units of ISO standard-twist lock for 1x20ft; 2x20ft; 1x40ft container, the
central locks can be laid down. |
Spare wheel carrier |
2 set of Spare wheel carrier including a riser |
Pneumatic braking system |
A system with emergency brake & parking brake, Dual line air brake, piggy
back spring on all axles, two units of WABCO RE 6 relay valve, 4 units of T
30/30 spring brake chamber; 2 units of T 30 brake chamber, two unit of 40 L
air tank; two unit of standard copper air-connector (WABCO)Guangdong FUWA Engineering Manufacturing Co. Ltd. |
Electrical system |
1 unit of JAEGER POWAY, 24 v 7-pin ISO 1185 standard socket; tail lamp
with turn signal, brake light & reflector, side lamp etc. One set of 7 core
standard cable. |
Painting |
Sand blasting processing on rust-proof protection, one coat of anticorrosive
primer, two coats of finish urethane paint, Color as customer choice |
Accessory |
ONE TOOLING BOX WITH A SET OF STANDARD TRAILER TOLL |
Iron wall |
On the front side of trailer, iron wall sizes are height 1372mm, width 2490mm
. |
Storage box for U Iron |
To store 28 pcs of U iron
Height x width = 127 x 63.5mm
Length 1220mm
Thickness = 5mm |
Departure angle |
15 degree, |
Standard Attachments |
Reflectors, side fastening hooks, water tank 45LTr, Hitch (towing hook),
mudguard and fire extinguisher place |
Warranty |
3 years warranty |
