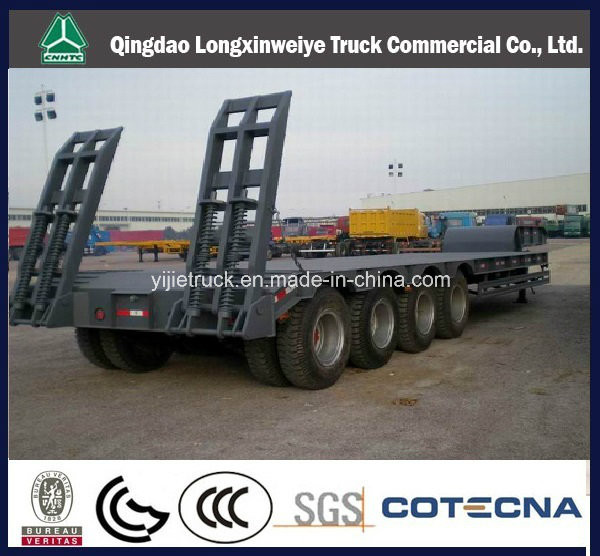

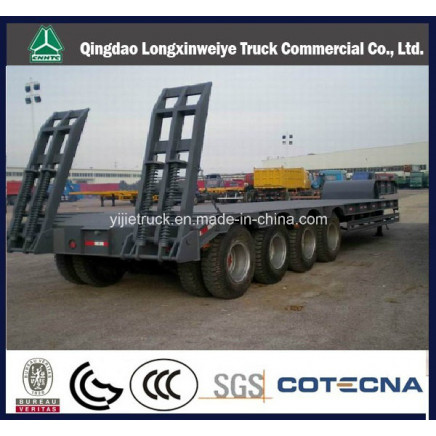

4 Axle 80 Ton Low Bed Semi Truck Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 19000.0-22000.0/

Price:$19000.0 - $22000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 06, 2014 To Jan 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQS9400TDP

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Double

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Axles:13ton Fuwa Axles

Kingpin:90#

Landing Gear:Jost

Material:Steel

Scale:Heavy Duty

Certification:CCC, ISO

Components:Trailer Axles

Load Capacity:50t

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:Euro standard

Origin:Shandong, China

Production Capacity:6000 Pieces/Month

Product Description

Axle 80ton Low Bed Semi Truck Trailer

Model: CQS9490TDP
1, suspension; Rigid, single point or air suspension
2, material of the main beam: Q345
3, Axles number: 2 3 4 axles.
4, Design type; Gooseneck or step wise
5, Jost landing gear, FUWA axles and tir-angle tires

Description:
1. Be designed according to your requirements
2. More than twelve years professional manufacturer experience
3. Be designed according to your requirements
4. CCC, ISO9001, SGS, CE agreement
5. Small order can be accepted
6. Mean beam 12 months quality guarantee term, easily damaged parts warranty lifetime.
7. We accept 100% inspection, welcome to our factory at any time

Pls contact the supplier for details, good quotation and further product information will be provided as required. We will be 24 hours on line, waiting for your kind inquiry.

Model Number	CQS9490TDP
Name	Gooseneck Low Bed Truck Semi-Trailer for Excavator Trasnsportation
Rated Load	60000 kg-80000kgs
Tare Weight	9200 kg
Wheel Base	6900+1310+1310 (mm)
TyreSpecifications	10/22.5
No. Of the Tyres	12
No. Of the Axles	3
Axle-load	13000 kg
King Pin	50#/90#
Landing Leg	28ton
Pieces of leaf-spring	10
Suspension	Steel leaf spring suspension
Departure Angle	14.5
Front/Rear Overhang	2120 mm
Outside Dimensions (LxWxH)	13000X3000X1710 (mm)
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system /ABS
Brake Air Chamber	4 double chamber and 2 single chamber
Electrical	24V 7 ways(7 wire harness)
Color	Any color will be available
Accessory	One tooling box with a set of standard trailer tool
