390HP 60tons Iveco 8X4 Heavy Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

390HP 60tons Iveco 8X4 Heavy Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$45000.0 - $55000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 55000/ Piece
20.0	US $ 52000/ Piece
50.0	US $ 50000/ Piece
100.0	US $ 45000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 22, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:CQ3315HTG466

Transmission Type:Manual

Power:Diesel

Load Capacity:51-60t

Emission Standard:Euro 4

Drive Wheel:8�4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Iveco Hongyan Genlyon

Engine:287kw / 390HP

Gerbox:Fast 12 Forward Gears, 2 Reverse Gear

Drivre Axle:Hongyan 16tons

Cargo Body Size:8300/8500*2300*1500/1800

Cargo Body Volume:28 Cubic~30 Cubic~32 Cubic ~35 Cubic

Thickness:Side 6mm;Bottom 8mm

Lifting System:with Front Hydraulic RAM

Hydraulic Cylinders:Optional Hyva Brand

Side Door:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

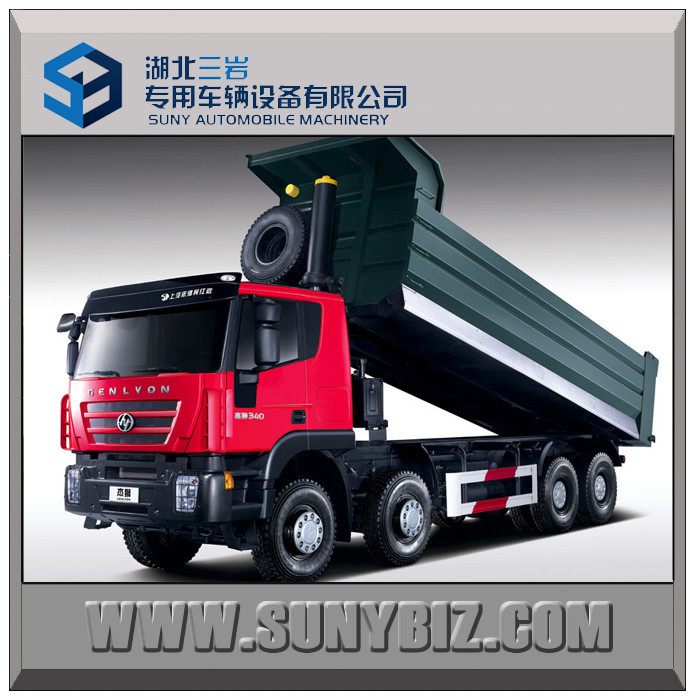

390hp iveco hongyan genlyon 8x4 Dump Truck / Tipper truck
iveco cabin with A/C,sleeper,Cursor9 engien 350hp Euro 4 engine.
8x4 dumper Load capacity 50tons 55tons 60tons 65tons.

Chassis Info:
IVECO HANGYAN GENLYON BRAND
Diesel engine, 287kw / 390hp,FAST 12-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:8300/8500*2300*1500/1800mm ,
28CBM Dump Truck,30CBM Dump Truck,32cbm Dump Truck/35cbm Tipper truck

Equipped with material of carbon steel Q235,Side 6mm thickness;bottom 8mm thickness,
Equipped with front hydraulic ram(Optional HYVA Brand),Single rear door.

Products Technical Specification
Brand-Series		HONGYAN-Genlyon
Product Name		8*4 Dump truck
Chassis Model		CQ3315HTG466
Emission Standard		Euro 4
Fuel type		Diesel
Cabin		Flat top,With A/C,Sleeper
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	1143525003480
	Cargo body siez	8300/850023001500/1800
	Wheel base	1800+4600+1400
	Front overhang	1435
	Rear overhang	2085
	Min. ground clearance	500
Weight data (kg)	G.V.W	31000
Weight data (kg)	Curb weight (chassis)	15220
	Load capacity	65000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	F2CE3681E*P
	Maximum power	287kw / 390hp
	Number of cylinders	6
	Displacement (L)	8.709
	Engine Manufacturer	SAIC Fiat Powertrain Hongyan Co.Ltd
Transmission	Brand	FAST
Transmission	Number of gears	12 forward gear & 2 reverse
Axle	Rear Load capacity (ton)	HONGYAN 16T
Suspension	Leaf spring	`8/8/12
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Dual-circuit air brake
Electric device	Rated voltage	24V
Tyres & Quantity		11.00R 20 & 8+1
Cargo body Description
Cargo body dimensions (mm)		8300/850023001500/1800
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 6mm thickness;bottom 8mm thickness
Lifting System		Equipped with Front hydraulic ram, one back door
Optional Configuration
HYVA Brand lifting system,Radial tires,Van thickness,side door,etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have IVECO HONGYAN water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .

MOB: 0086 137 0717 3051
If you have any questions please let Adam Li know.
